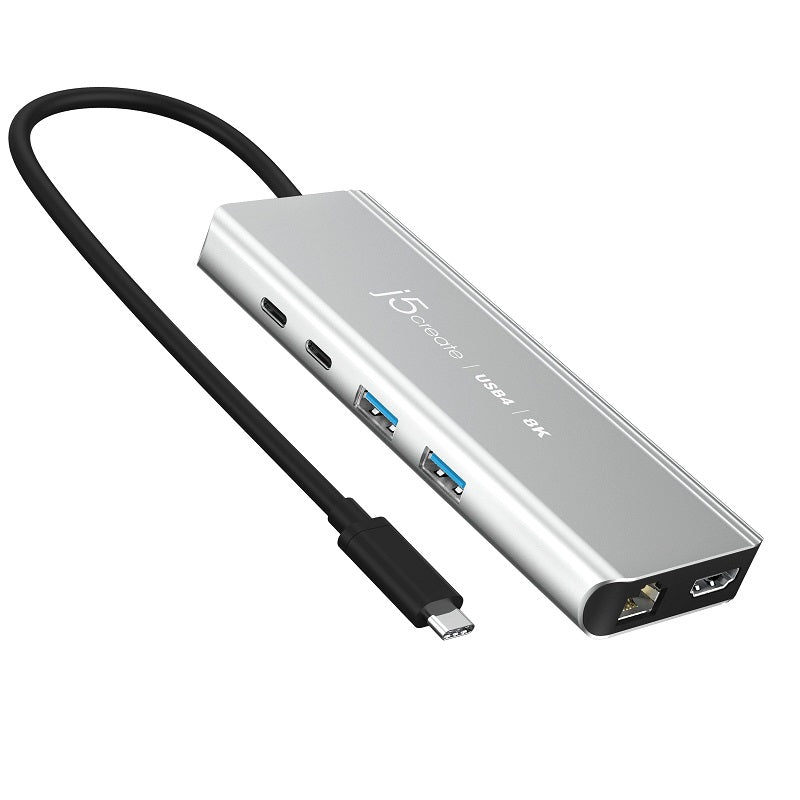

This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.
Features- Supports resolutions up to 8K
- Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
*Thunderbolt™ 4, USB4® is required to achieve 8K resolutions.
*Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays

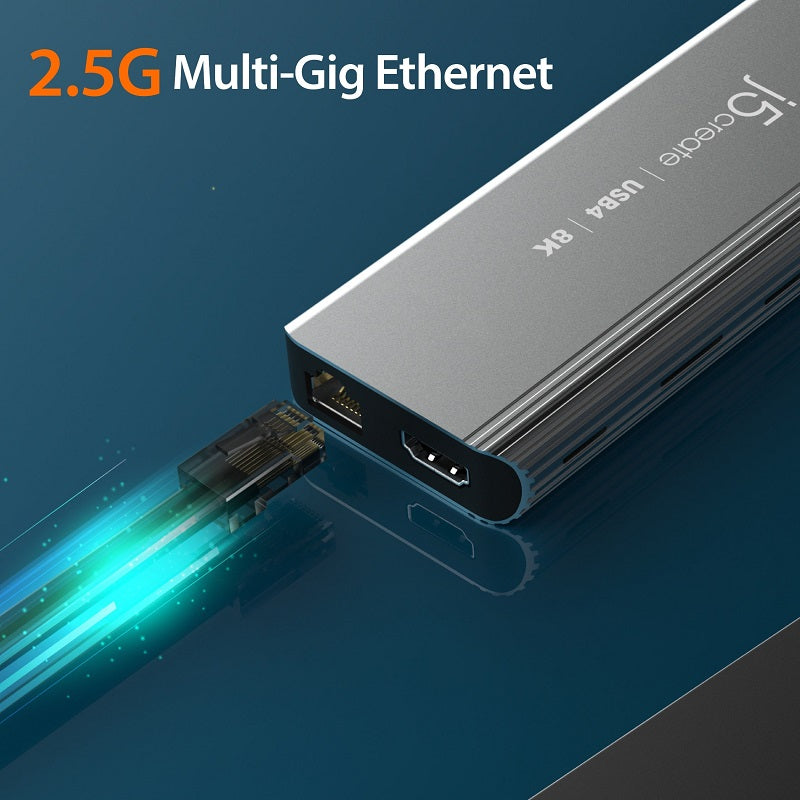

- One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
- Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your legacy peripheral
- One USB-C® downstream port supports up to 10Gbps data transmission

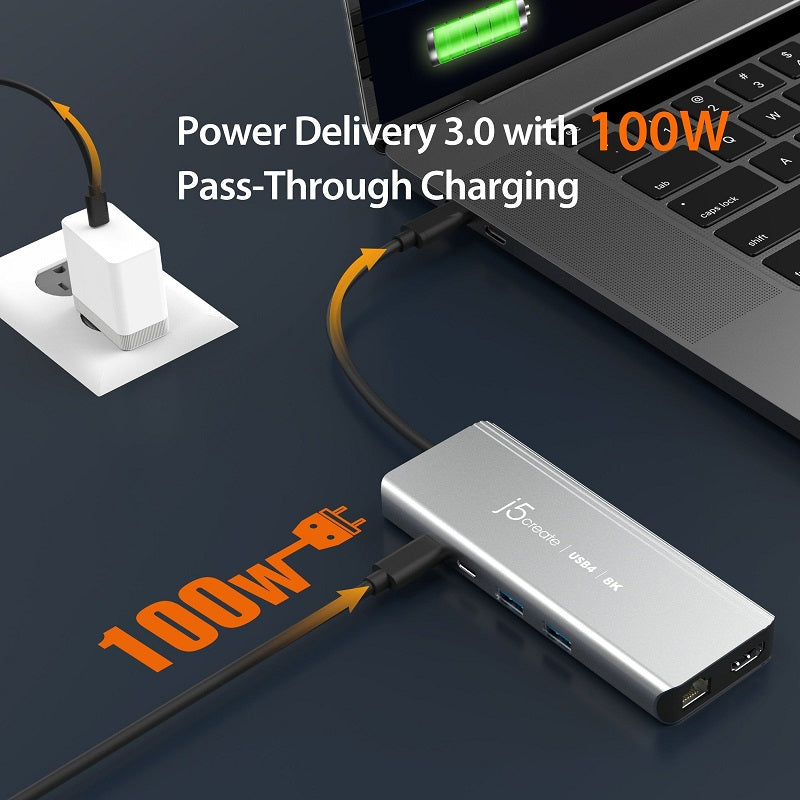

- Power Delivery 3.0 offers up to 100W of pass-through charging

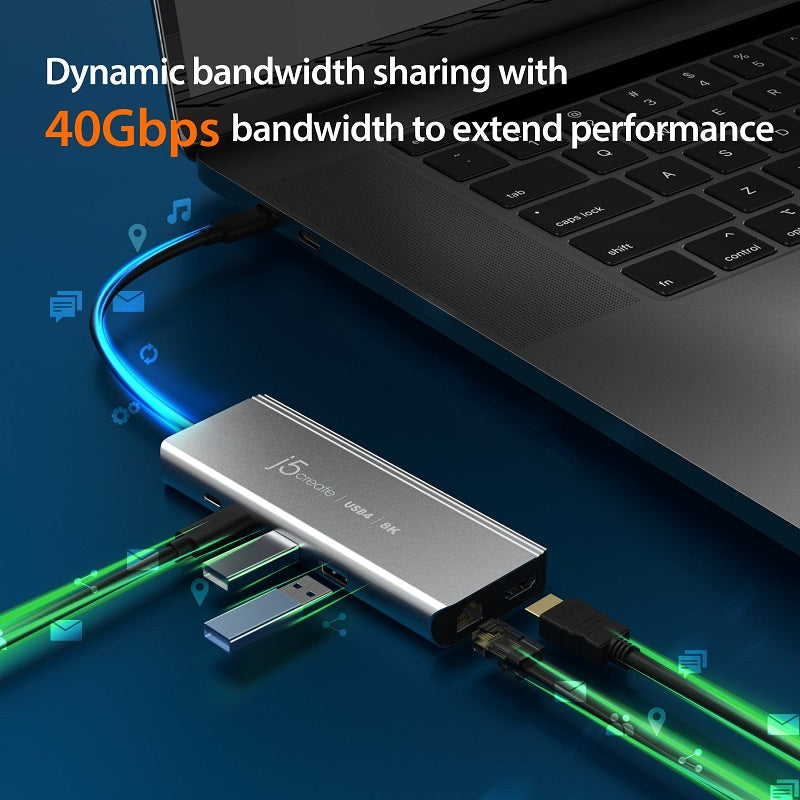

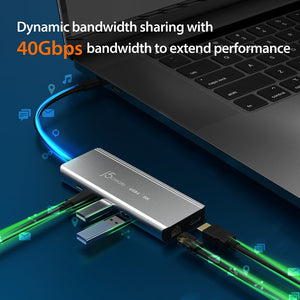

- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
SpecificationsHardwareAudio Supported: Yes
Host Connector: 1 - USB-C® Male
Network Interface: Yes

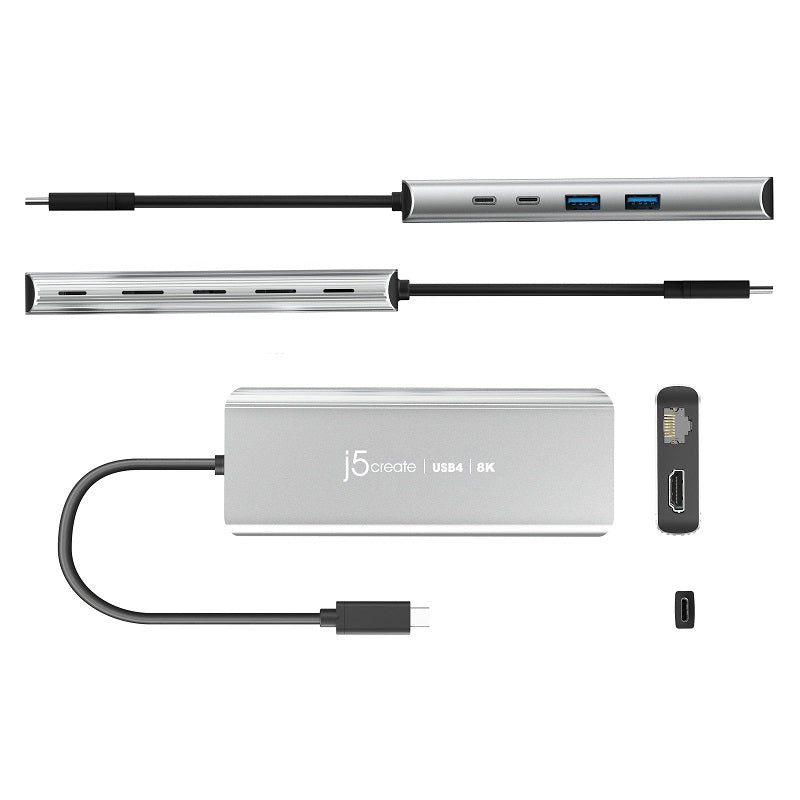

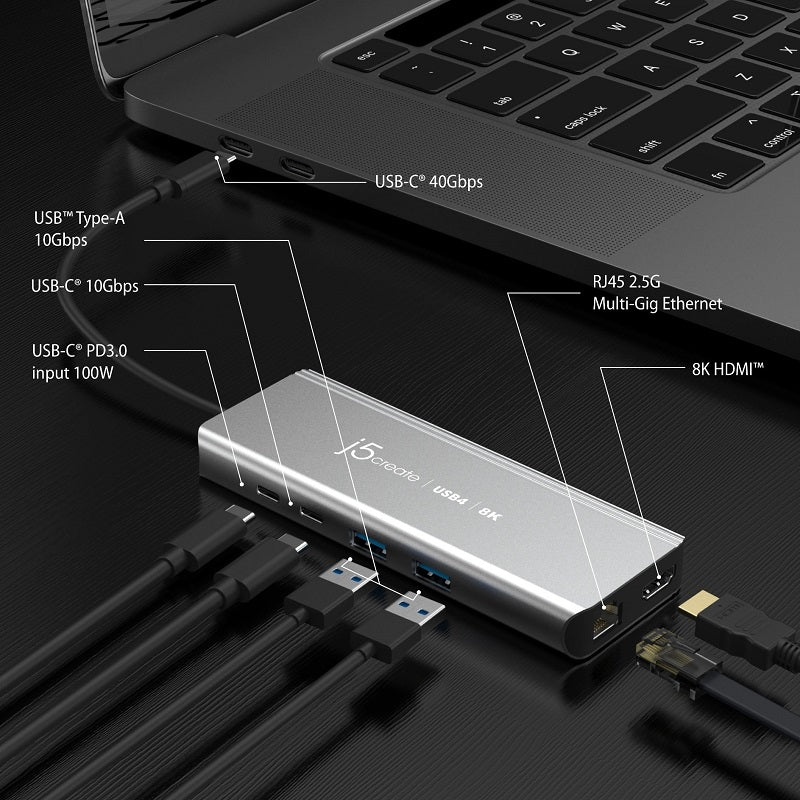

Ports:
1- USB-C® 3.2 Gen2 10Gbps data transmission
1- USB-C® power delivery 3.0 100W
2- USB™ Type-A 3.2 Gen2 10Gbps data transmission
1- 8K HDMI™
1- RJ45 2.5 Gigabit Ethernet
Power Source: Bus-powered or self-powered
Video Output: 1 - HDMI™ Female
Warranty: 2 Year Limited
PerformanceAudio Channel: 2.1 via HDMI™
Compatible Networks: 10M/100M/1000M/2.5 Gigabit
Displays Supported: HDMI™
Max Data Transfer Rate: 10Gbps
Max Display Refresh Rate:
- 60 Hz @ 3840 x 2160
- 144 Hz @ 3840 x 2160 (* Only for DSC host)
- 30 Hz @ 7680 x 4320
- 60 Hz @ 7680 x 4320 (* Only for DSC host)
Max Display Resolution: 7680 x 4320
PowerInput Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.75A
Output Voltage: Up to 20V
Power Consumption: ≤ 900 mA
Power Delivery: Up to 100W via USB-C®
Physical SpecificationsCable Length: 7.87 in. (200 mm)
Color: Space Grey
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 41°C)
Product Depth: 0.59 in. (15 mm)
Product Height: 5.3 in. (135 mm)
Product Weight: 3.84 oz (109 g)
Product Width: 2 in. (51 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)

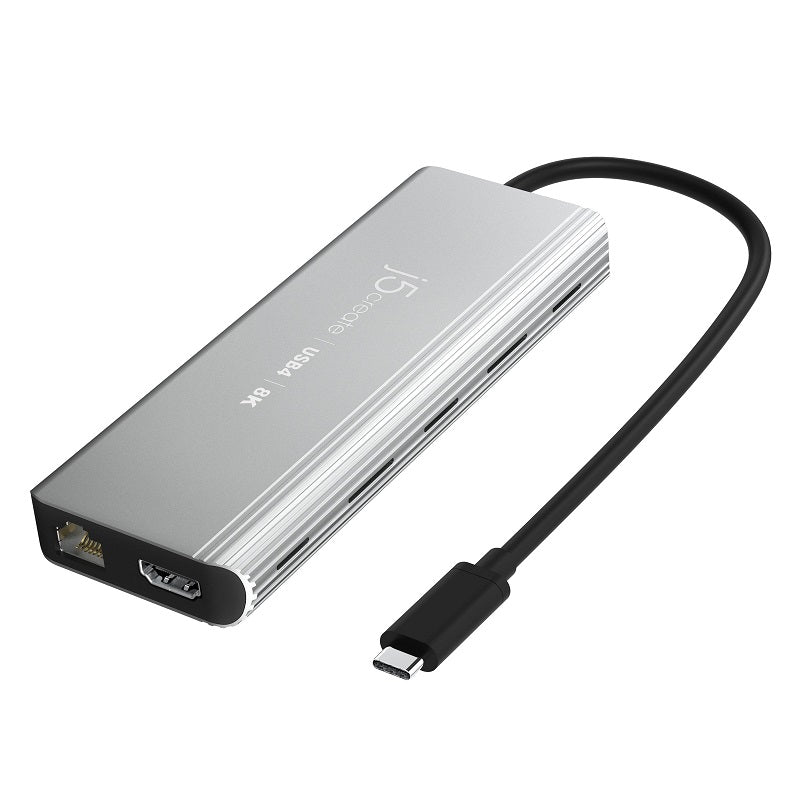

Package Contents1 - JCD403 USB4® 8K Multi-Port Hub
1 - Quick Installation Guide (QIG)
CompatibilitySystem Requirements- Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops
- GPU and video source:
- DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz
- DisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz
* DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above
* Recommended Graphics Cards: Intel® HD Graphics 620, Intel'® HD Graphics 520 or above
* Notes: Macs supports up to 4K 60Hz on an 8K HDMI™ display
Special Notes- DisplayPort™ 1.4 is required on graphics card and video source to achieve 8K @ 30
- DisplayPort™ 1.4 and Display Stream Compression (DSC) is required on graphics card and video source to achieve 8K @ 60
- A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
