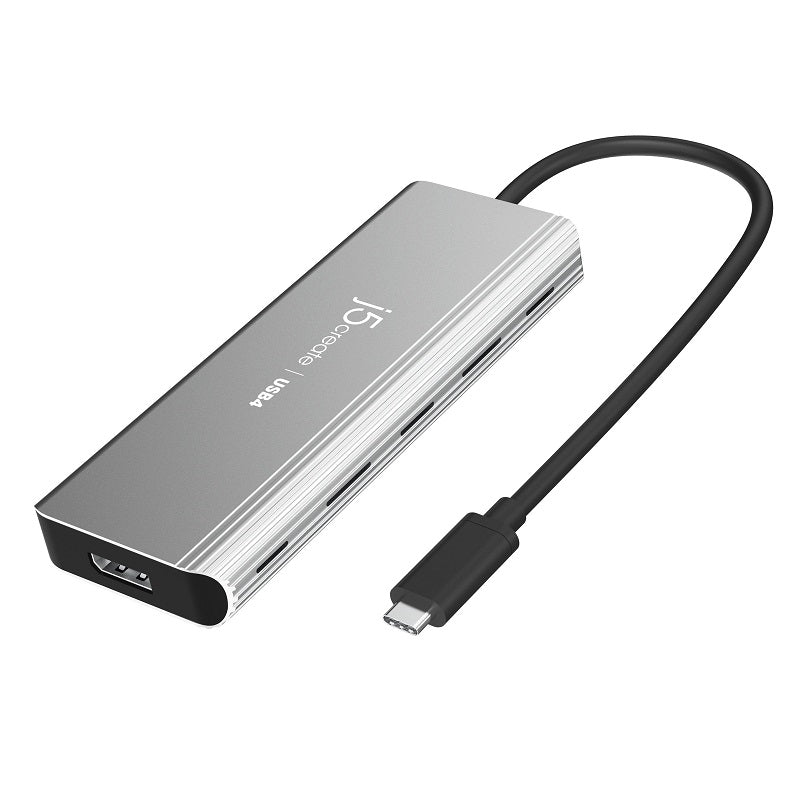

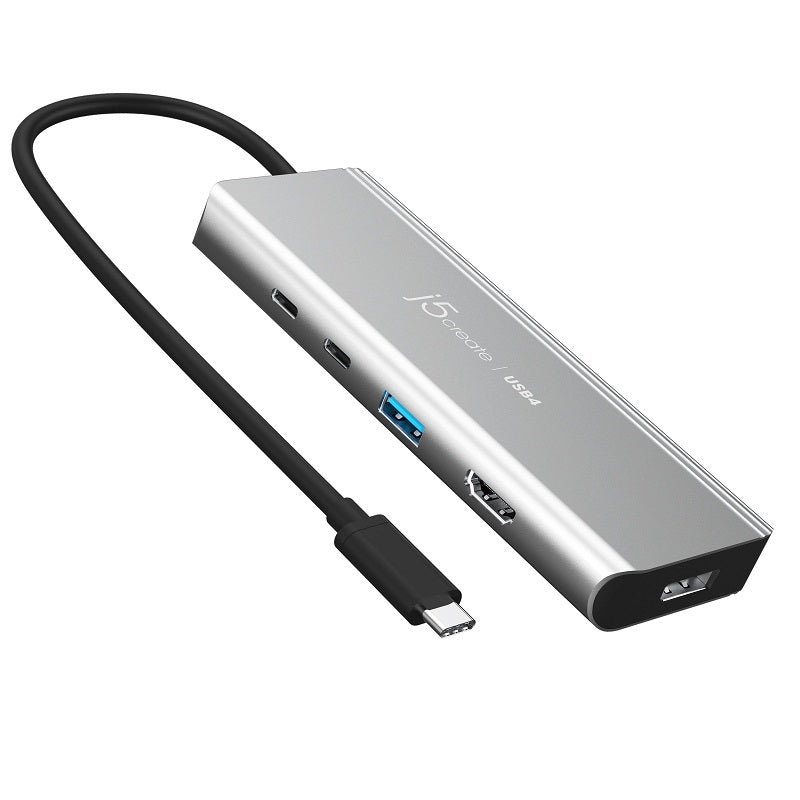

This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller from Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.
With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.
Features- Intel® USB4® controller ensures industry-leading quality and reliability
- Up to two 4K displays with flexible monitor connections
- 1 DisplayPort™ + 1 HDMI™
- 1 USB-C® + 1 DisplayPort™
- 1 USB-C® + 1 HDMI™
- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- One USB-C® downstream port supports up to 10Gbps data transmission and DP™ 1.2 support for 4K @ 60Hz video output

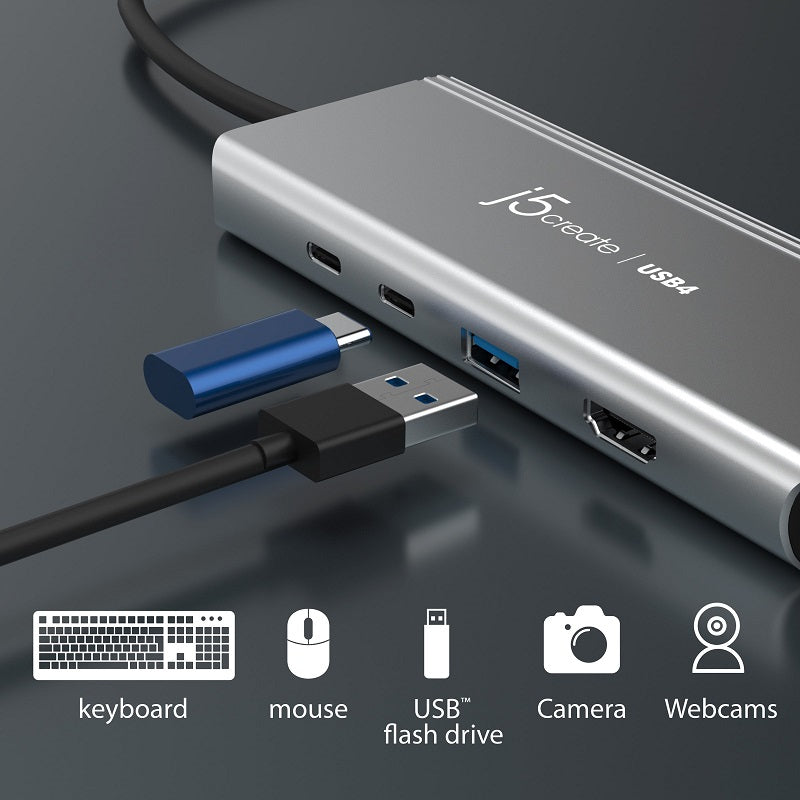

- One SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your peripherals
- Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
SpecificationsHardwareAudio Supported: No
Host Connector: 1 - USB4® Male
Network Interface: No

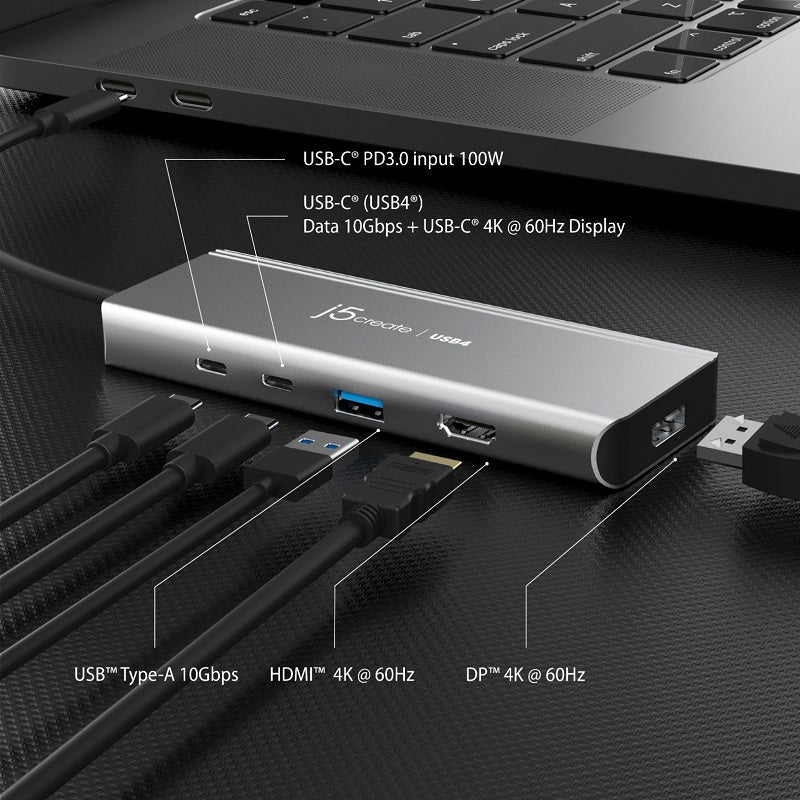

Ports:
1 - USB-C® 3.2 Gen 2 (10Gbps) with DP™ 1.2 Support
1 - USB™ Type-A 3.2 Gen 2 (10Gbps)
1 - USB-C® Power Delivery 3.0
1 - 4K HDMI™
1 - DisplayPort™ 1.2
Power Source: Bus-powered or self-powered
Video Output:
1 - HDMI™ Female
1 - DisplayPort™ Female
1 - USB-C® with DisplayPort™ alt mode
Warranty: 2 Year Limited
PerformanceAudio Channel: N/A
Compatible Networks: N/A
Displays Supported: 2
Max Data Transfer Rate: 10Gbps
Max Display Refresh Rate: 60 Hz
Max Display Resolution: 3840 x 2160
PowerInput Current: Up to 3A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V
Power Consumption: ≤ 900 mA
Power Delivery: Up to 85W via USB-C®

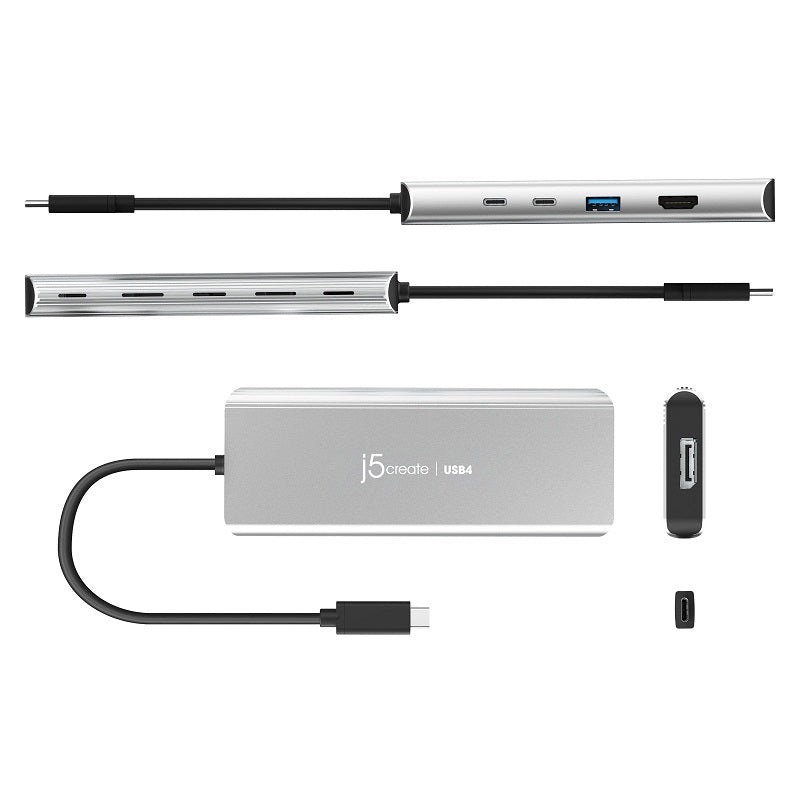

Physical SpecificationsCable Length: 7.87 in. (200 mm)
Color: Space Grey
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 47°C)
Product Depth: 0.59 in. (15 mm)
Product Height: 5.3 in. (135 mm)
Product Weight: 3.84 oz (109g)
Product Width: 2 in. (51 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)
Package Contents1 - JCD401 USB4® Dual 4K Multi-Port Hub
1 - Quick Installation Guide (QIG)
CompatibilitySystem Requirements
- Available USB-C® port that supports Thunderbolt™ 4, Thunderbolt™ 3, or USB4®.
Special Notes- A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
Supports up to 1 external display when connected to legacy USB-C® laptops or M1 Mac®
- Mac® computers with the M1 and M2 chip only support 1 external display
- Mac® computers with the M1/M2 Pro, M1/M2 Max, or M1 Ultra chip will support 2 external displays
- If your dual monitors does not display properly, please manually set the resolution to a maximum of 4K30 to ensure dual 4K display output
