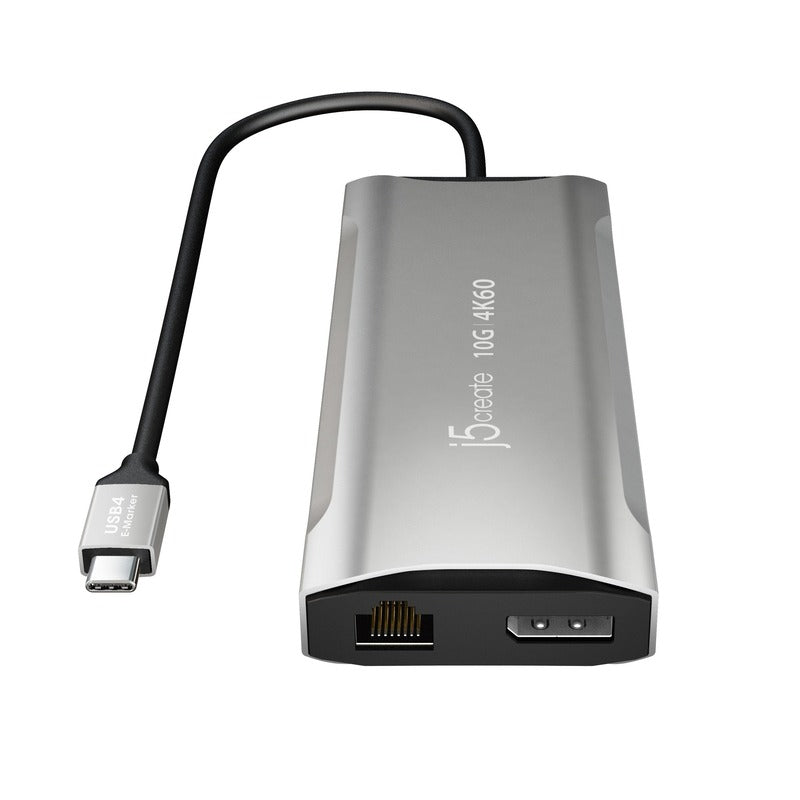

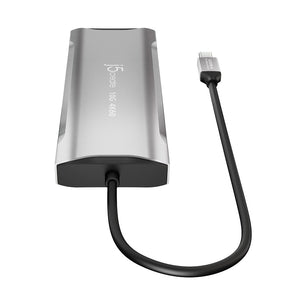

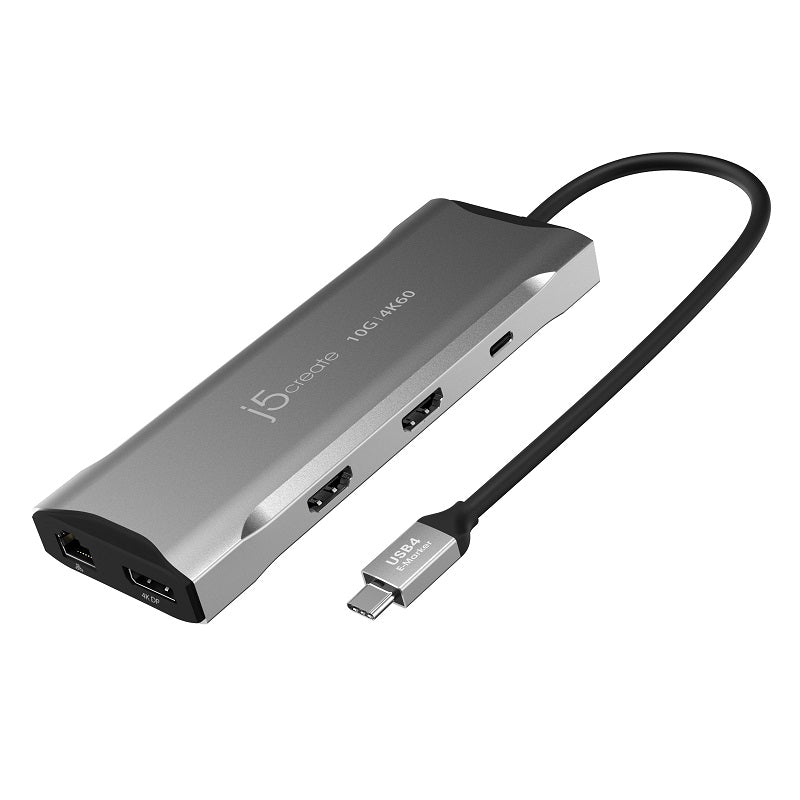

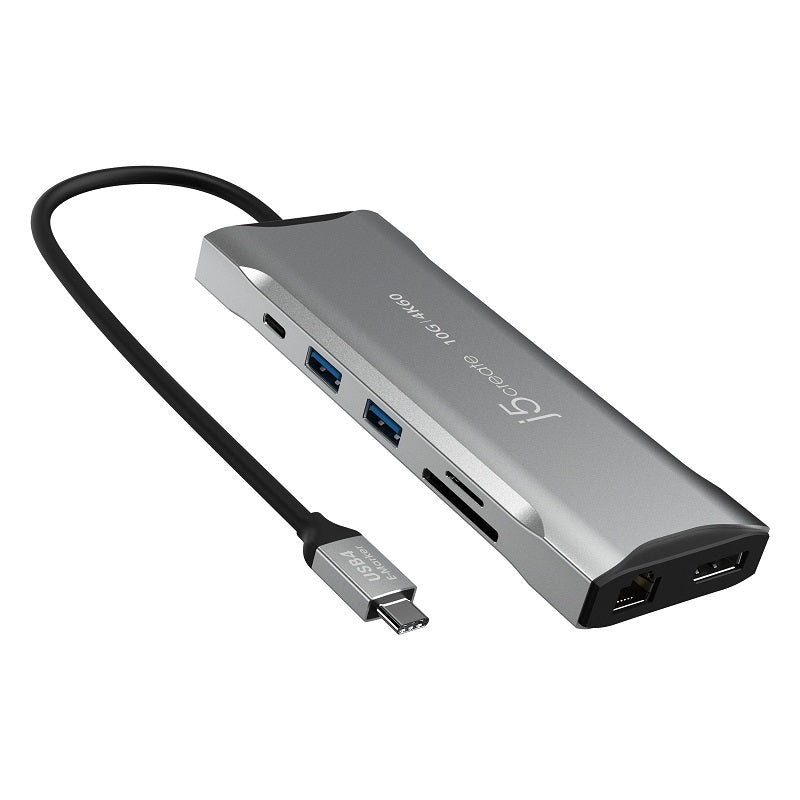

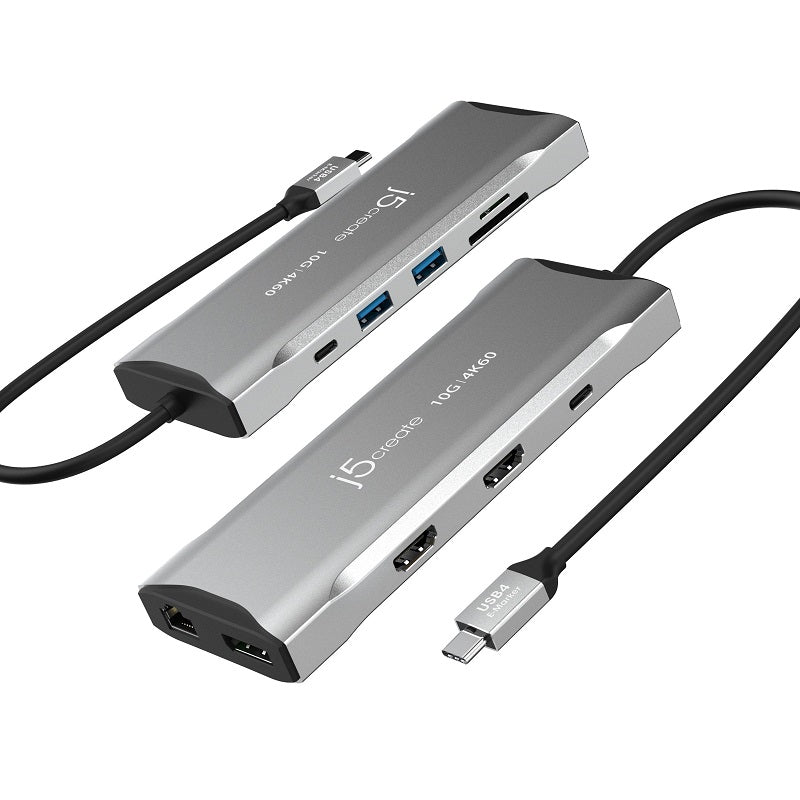

j5create USB4 4K60 Elite USB-C Triple Mini Dock

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

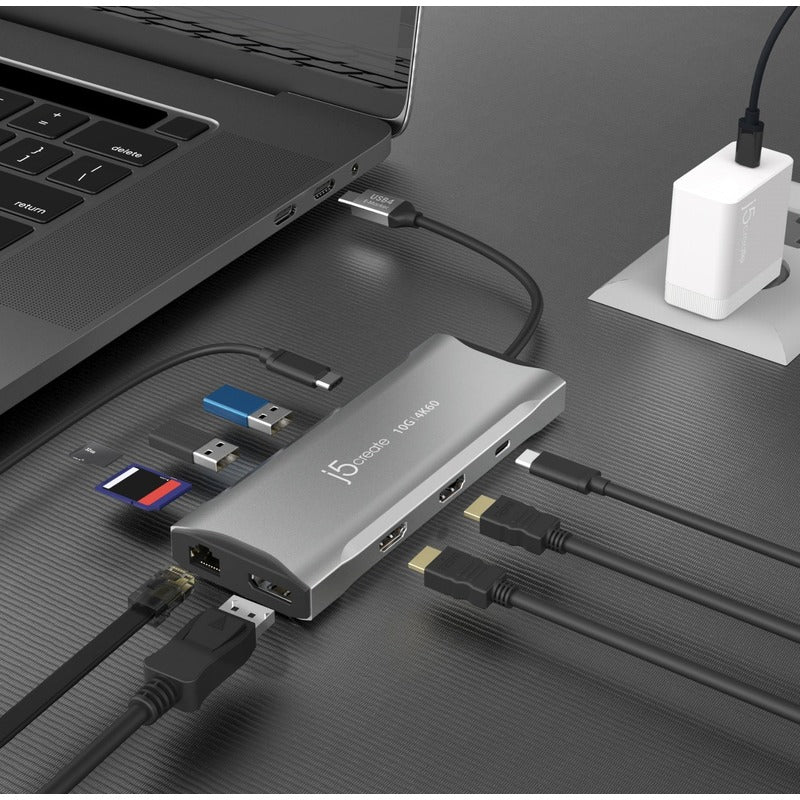

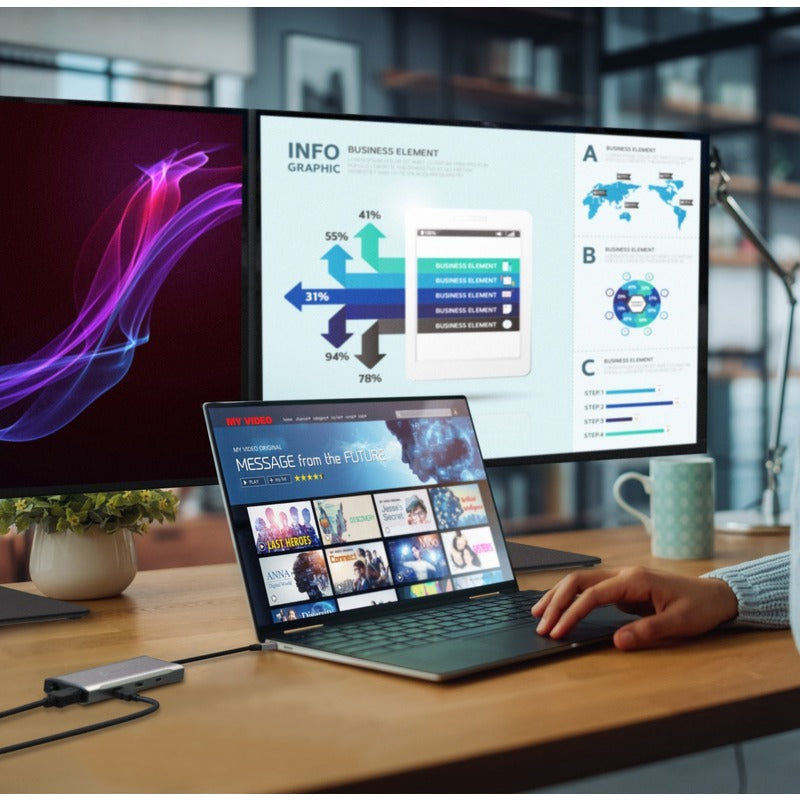

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

- Advanced USB-C® E-Mark chip integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.1/3.2

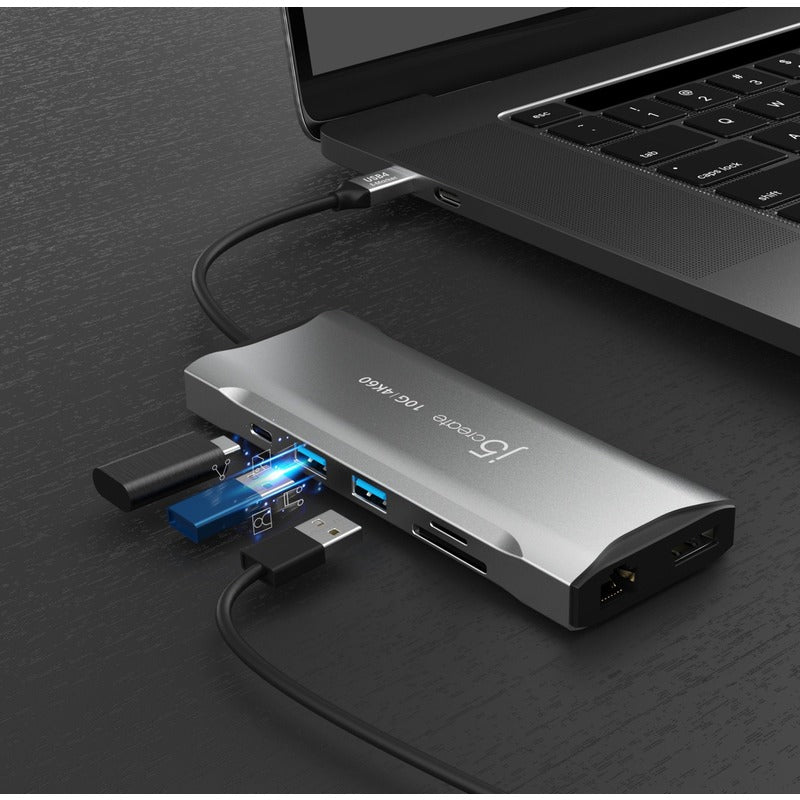

- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals

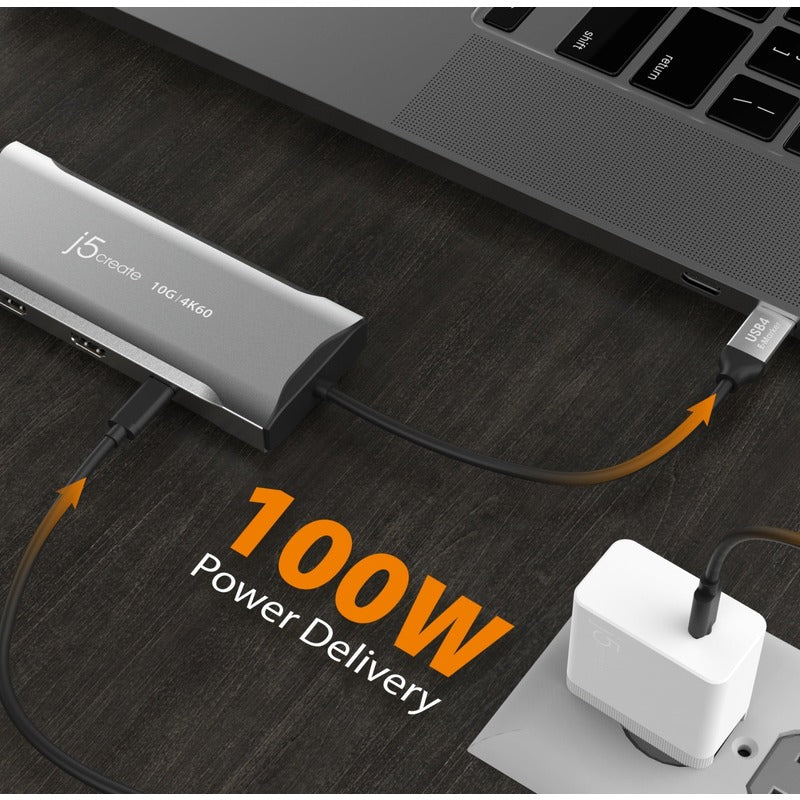

- Charge and power connected laptop and peripherals with 100W Power Delivery

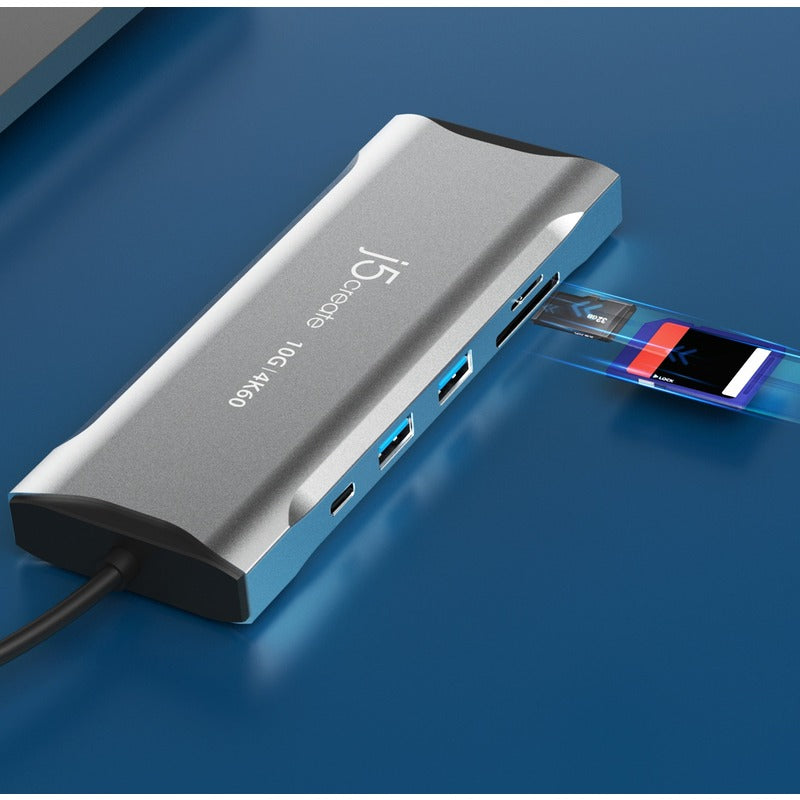

- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
- Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI™ or 1920 x 1080 @ 240 via DP™ Port to enjoy your gaming under Windows® OS.
- Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI™ and 1 DisplayPort™) on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*

Audio Supported: Yes
Host Connector: 1 - USB-C® Male
Network Interface: RJ45 (Gigabit Ethernet)
1 - USB-C® 10Gbps
1 - USB-C® 5Gbps with Power Delivery 3.0
2 - USB™ Type-A 10Gbps
1 - USB-C® Power Delivery 3.0
2 - 4K HDMI™
1 - DisplayPort™
1 - SD™ & microSD™ 4.0 memory card reader/writer
1 - RJ45 Gigabit Ethernet
Power Source: Bus-powered or self-powered
Video Output:
2 - HDMI™ Female
1 - DisplayPort™ Female
Warranty: 2 Year Limited

Audio Channel: 2.1 via HDMI™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 3
Max Data Transfer Rate: 10Gbps
Max Display Refresh Rate:
*Windows® (MST)
- 3840 x 2160 @ 60
- 2560 x 1440 @ 144 via HDMI™
- 1920 x 1080 @ 240 via DP™
Max Display Resolution: 3840 x 2160

Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V
Power Consumption: ≤ 650 mA
Power Delivery: Up to 100W via USB-C®

Physical Specifications
Cable Length: 7.87 in. (20 cm)
Color: Space Grey
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 47°C)

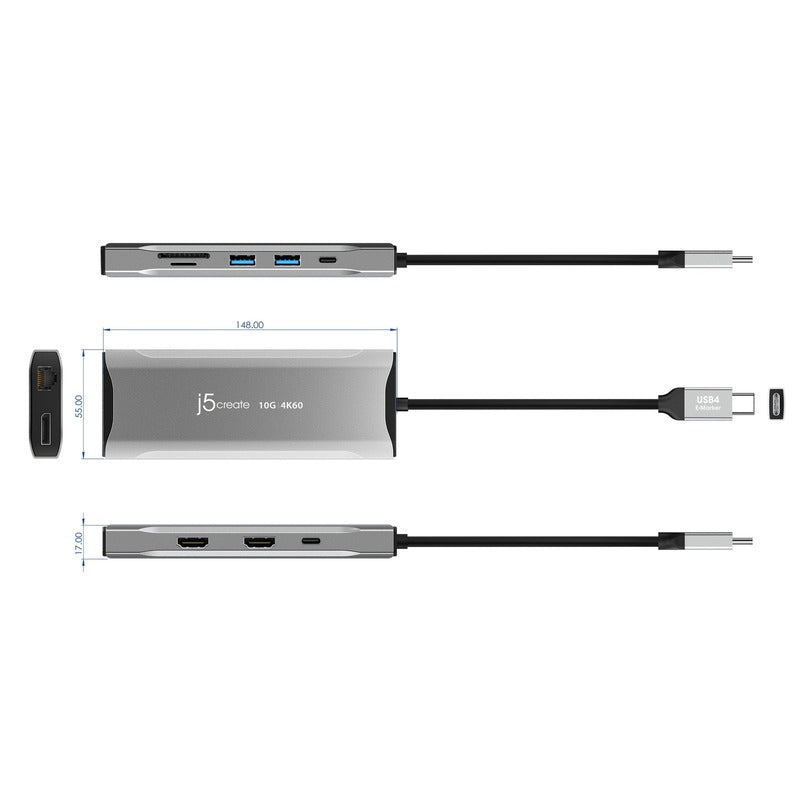

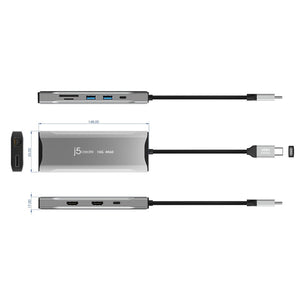

Product Depth: 0.67 in. (17 mm)
Product Height: 5.8 in. (148 mm)
Product Weight: 4.36 oz (123.5g)
Product Width: 2.17 in. (55 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)

Package Contents
1 - JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock
1 - Quick Installation Guide (QIG)

System Requirements
- Available USB-C® port that supports DisplayPort™ alternate mode and USB™ -Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your computer for more information about your device
-The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration
-The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort™ 1.4 devices are listed as follows:
  • MacBook Air® 13" 2019 or later
  • MacBook Pro® 15" 2017 or later
  • MacBook Pro® 16"
  • iPad Pro® 11"/12" 2018 or later
  • Surface™ Pro 7
  • Surface™ laptop 3
Special Notes
- A host laptop without MST support can only connect to one additional monitor
- The MST protocol is not currently supported by macOS® or Chrome OS™. The display output is limited to mirrored mode when connected.
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 @ 30 Hz (Windows®)
- The mini dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
