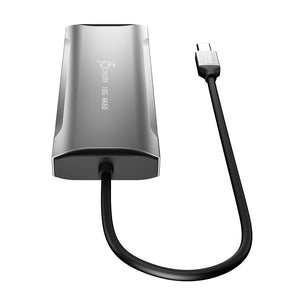

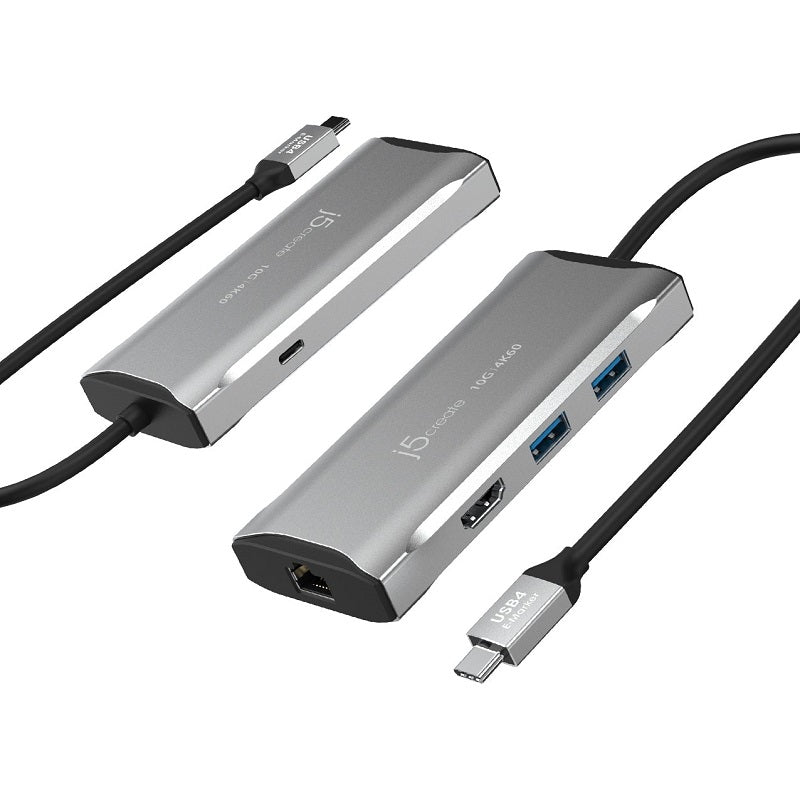

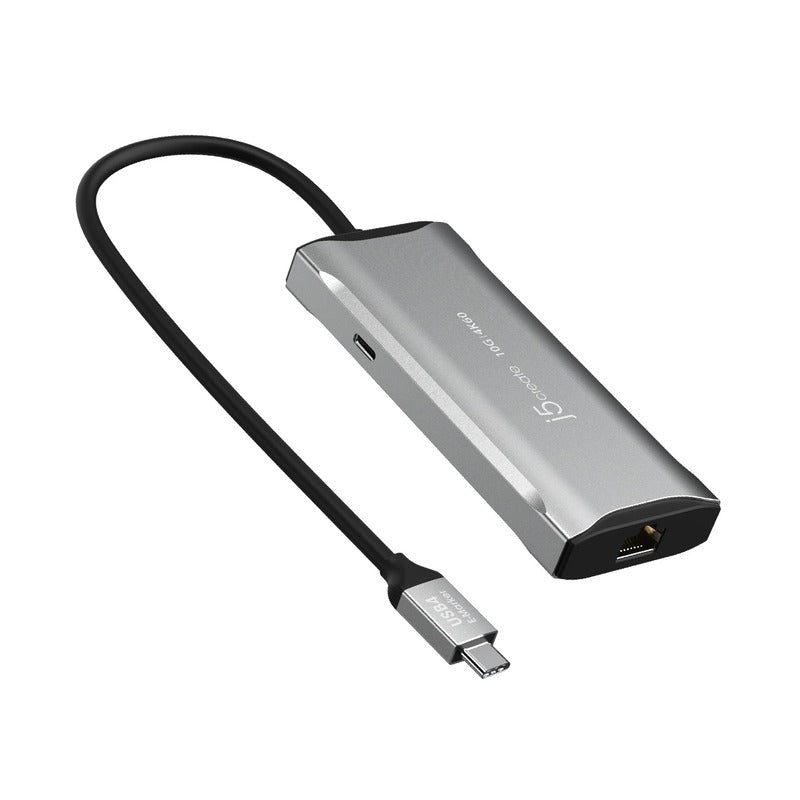

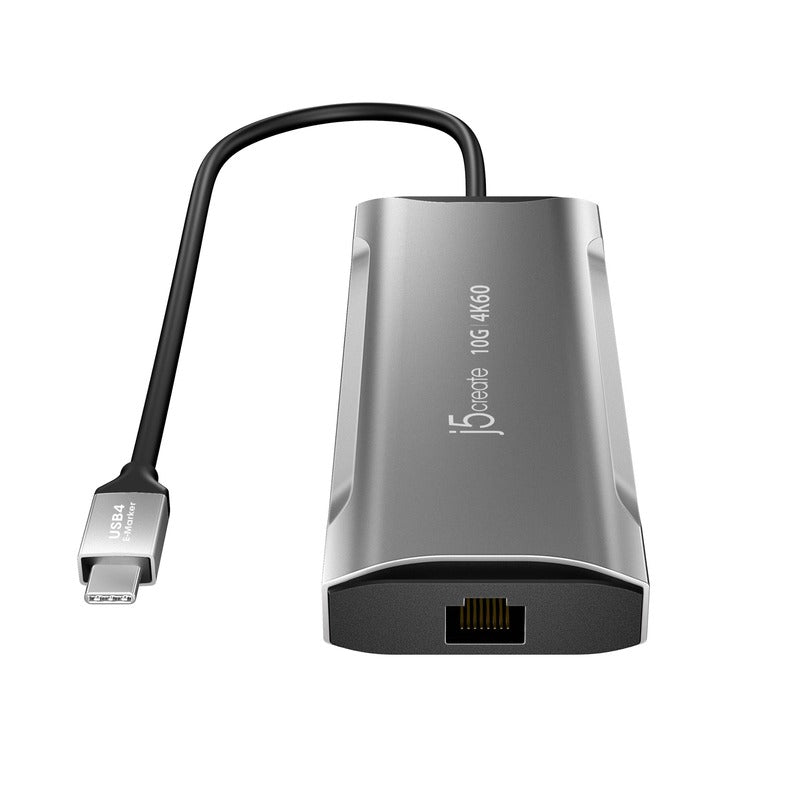

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Travel Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.

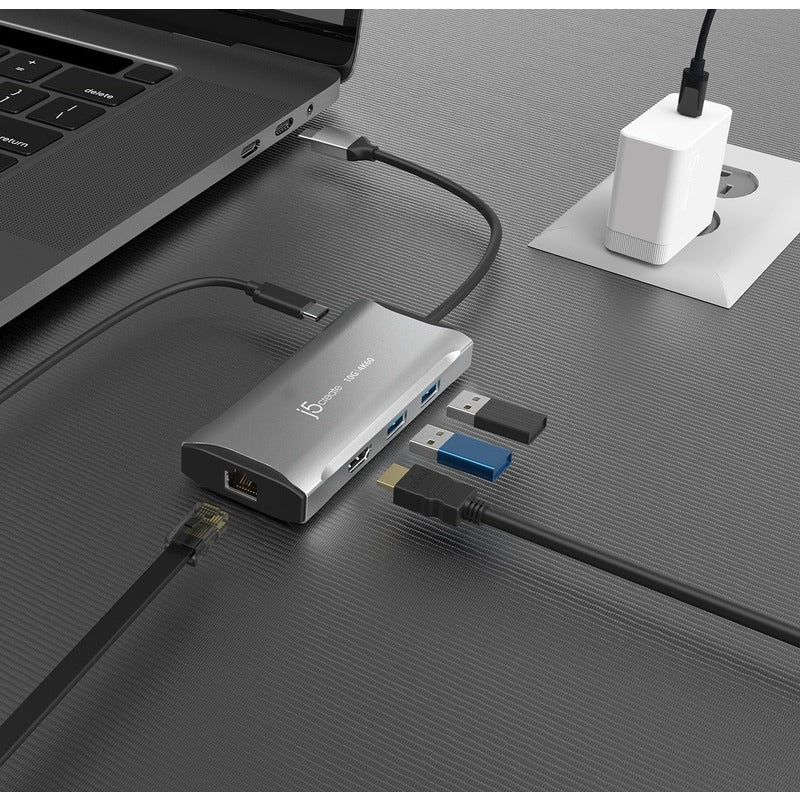

It supports DisplayPort™ 1.4 allowing you to add a 4K 60Hz HDMI™ display and has a Gigabit Ethernet port for adding a wired network. It includes three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging. The USB-C® port also offers up to 100W of power pass-through when connected to a power adapter.
Features- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backwards compatible with USB™ 3.2/3.1

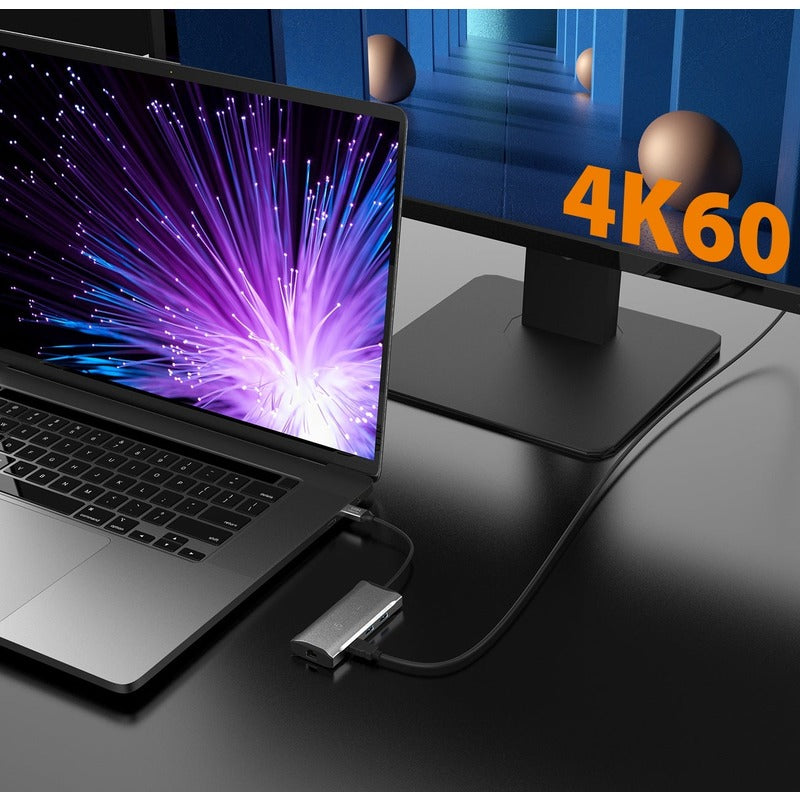

- Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
- Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS

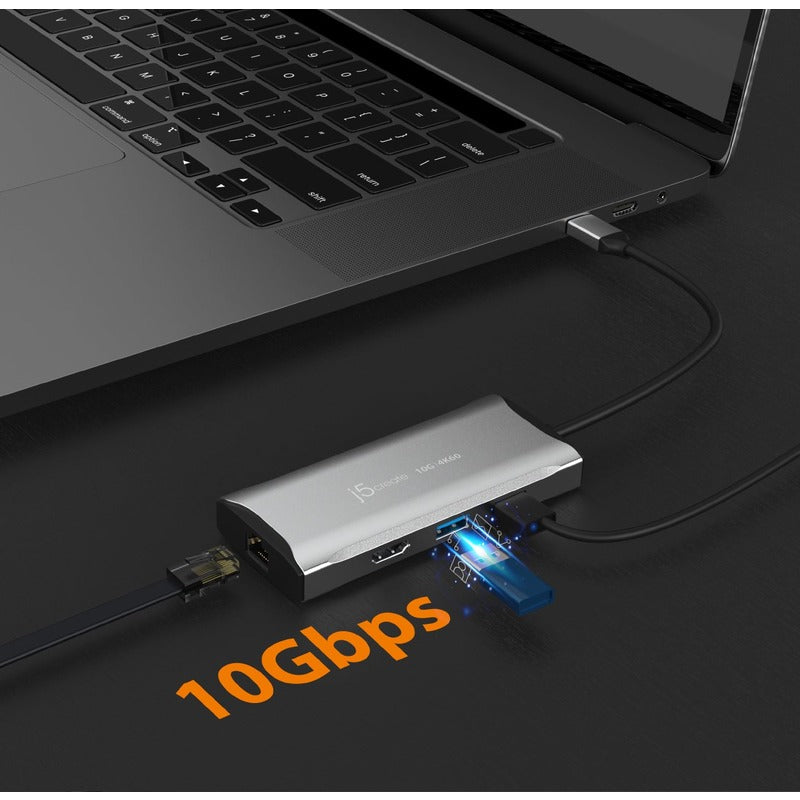

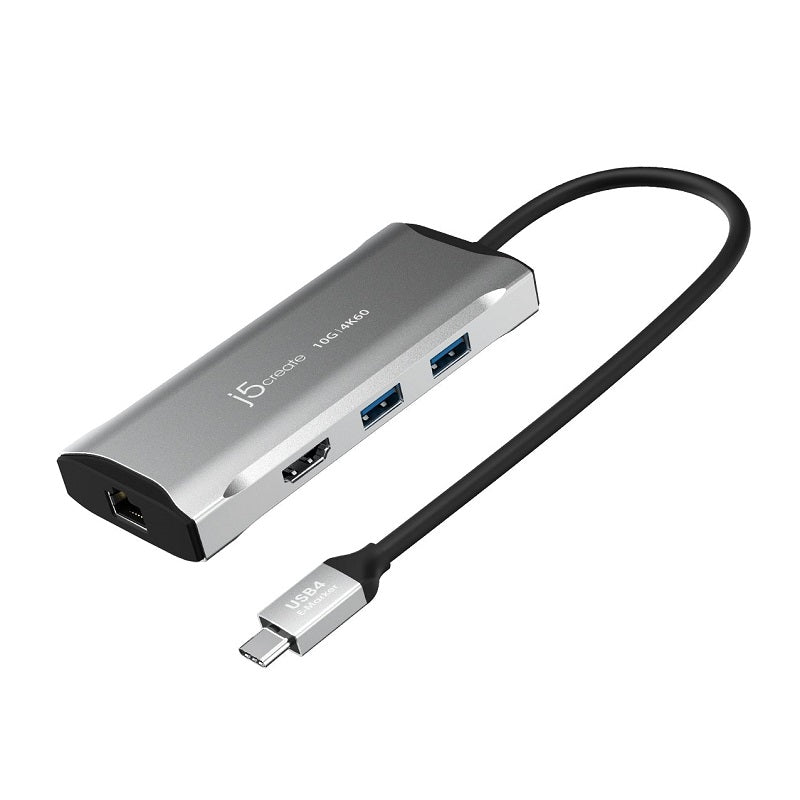

- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
SpecificationsHardwareAudio Supported: Yes
Host Connector: 1 - USB-C® Male
Network Interface: RJ45 (Gigabit Ethernet)

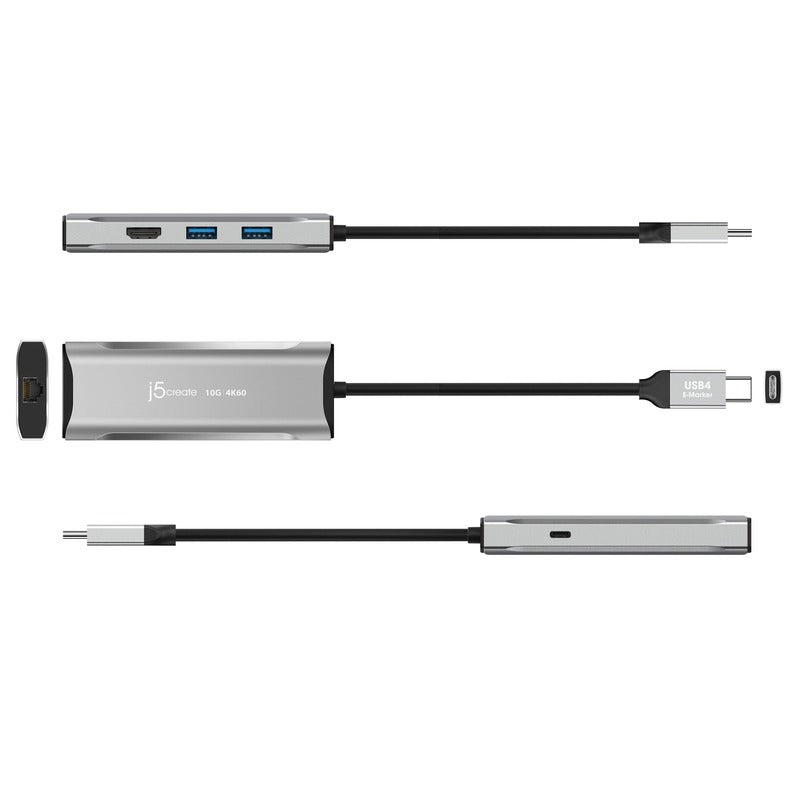

Ports:
1 - USB-C® SuperSpeed 10Gbps with Power Delivery 3.0
2 - USB™ Type-A SuperSpeed 10Gbps
1 - 4K HDMI™
1 - RJ45 Gigabit Ethernet
Power Source: Bus-powered or self-powered
Video Output: 1 - HDMI™ Female
Warranty: 2 Year Limited
PerformanceAudio Channel: 2.1 via HDMI™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 1
Max Data Transfer Rate: 10Gbps
Max Display Refresh Rate:
- 3840 x 2160 @ 60 Hz
- 2560 x 1440 @ 120 Hz
- 1920 x 1080 @ 144 Hz
- (Windows®)
Max Display Resolution: 3840 x 2160
PowerInput Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.5A
Output Voltage: Up to 20V
Power Consumption: ≤ 400 mA
Power Delivery: Up to 100W via USB-C®
Physical SpecificationsCable Length: 5.9 in. (150 mm)
Color: Champagne Space Grey
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 41°C)
Product Depth: 1.85 in. (47 mm)
Product Height: 0.62 in. (16 mm)
Product Weight: 3.06 oz (87g)
Product Width: 4.33 in. (110 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)
Package Contents1 - JCD392 4K60 Elite USB-C® 10Gbps Travel Dock
1 - Quick Installation Guide (QIG)
CompatibilitySystem Requirements- Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your computer for more information about your device

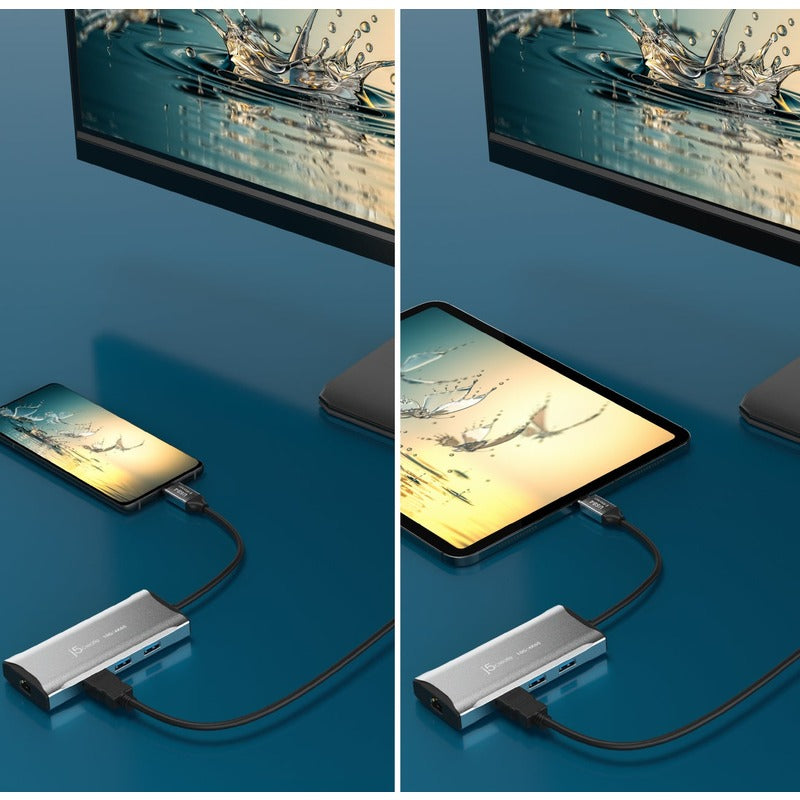

- The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:
- Macbook Air® 13" 2019 or later
- Macbook Pro® 15" 2017 or later
- Macbook Pro® 16"
- iPad Pro® 11"/12" 2018 or later
- Surface™ Pro 7
- Surface™ Laptop 3
Special Notes- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- If connected to a DisplayPort™ 1.2 device performance will be limited to 3840 x 2160 at 30 Hz
- The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
