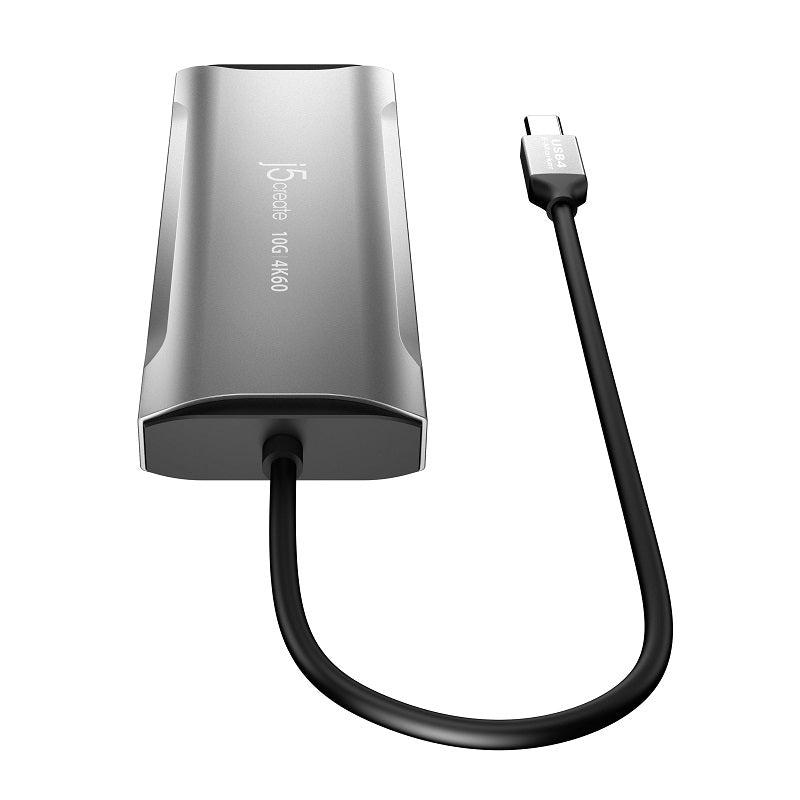

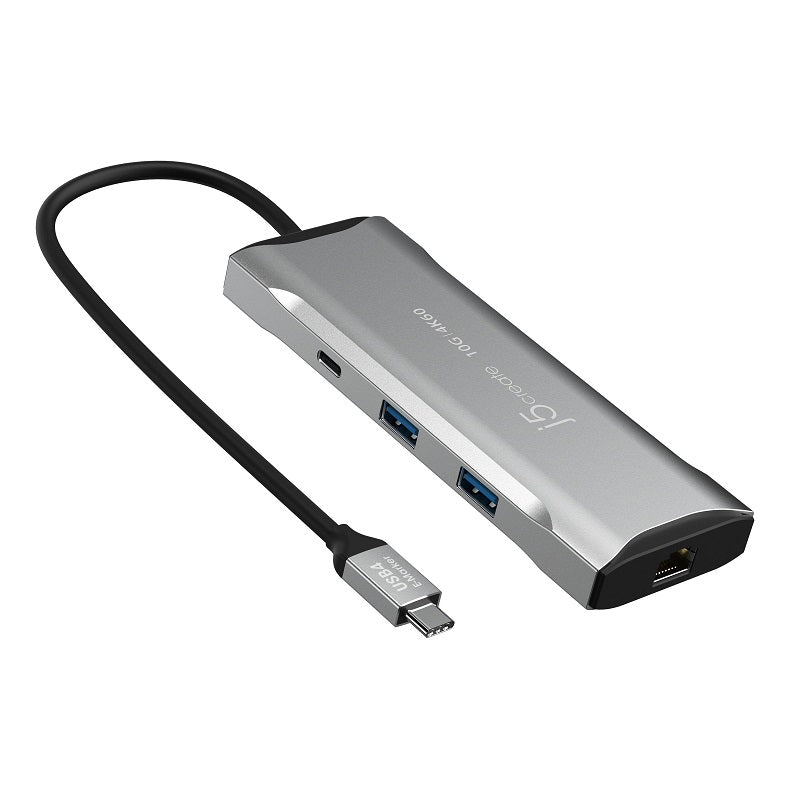

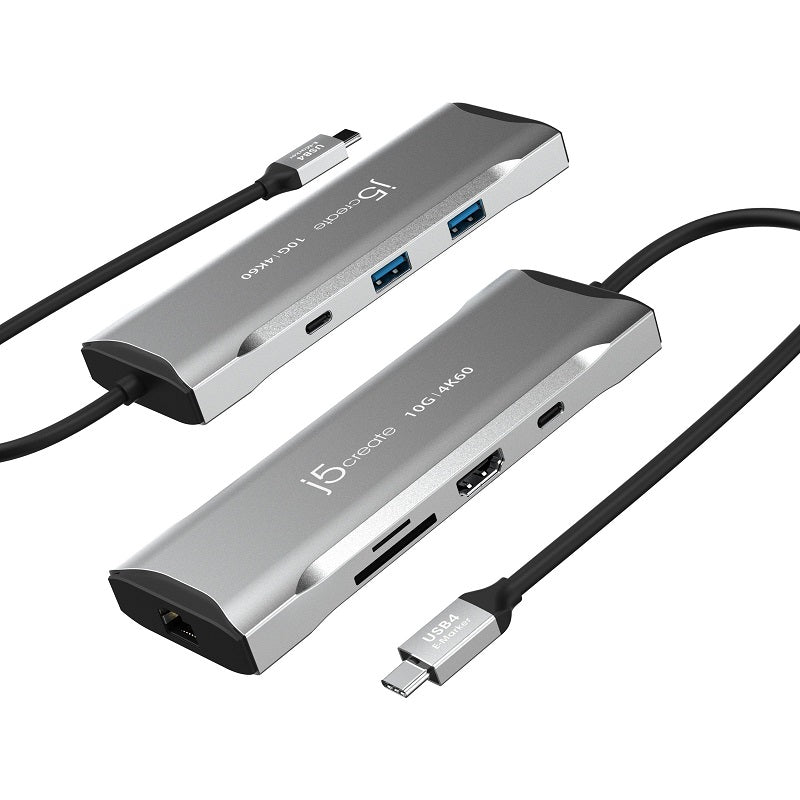

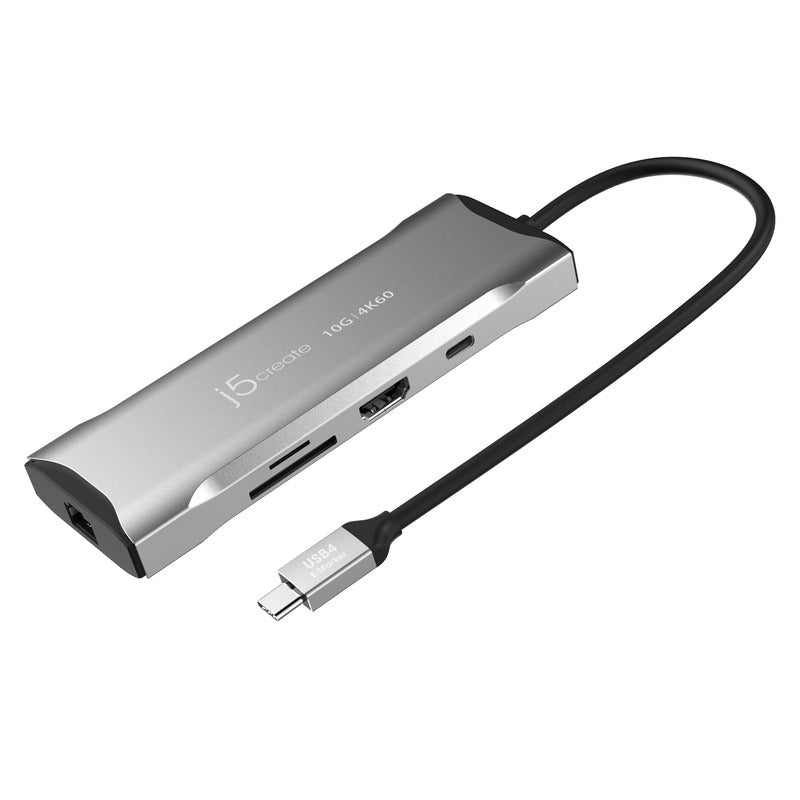

j5create USB4 4K60 Elite USB-C 3.2 10Gbps Mini Dock

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.

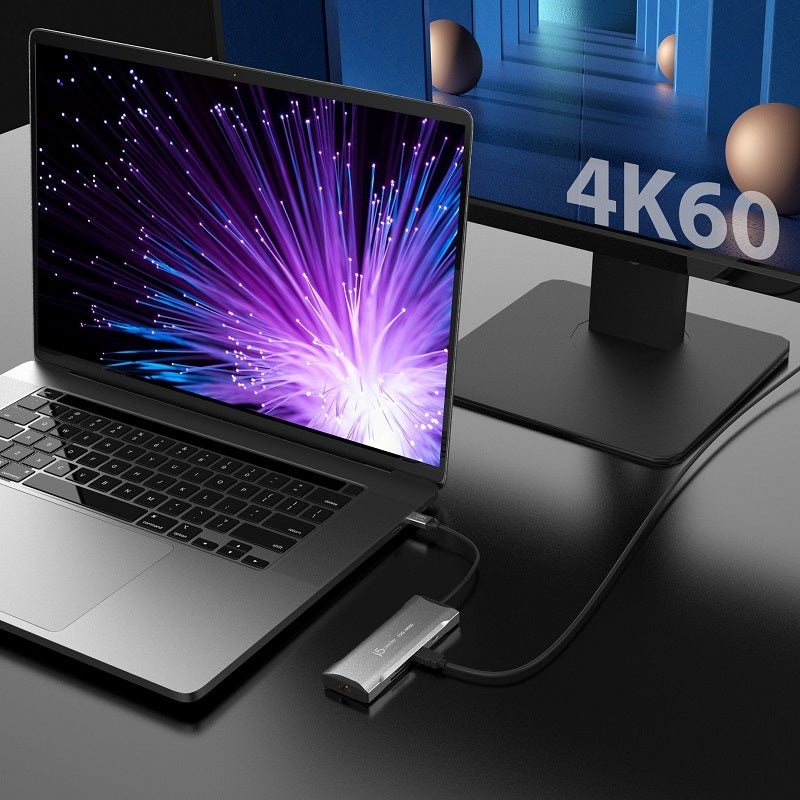

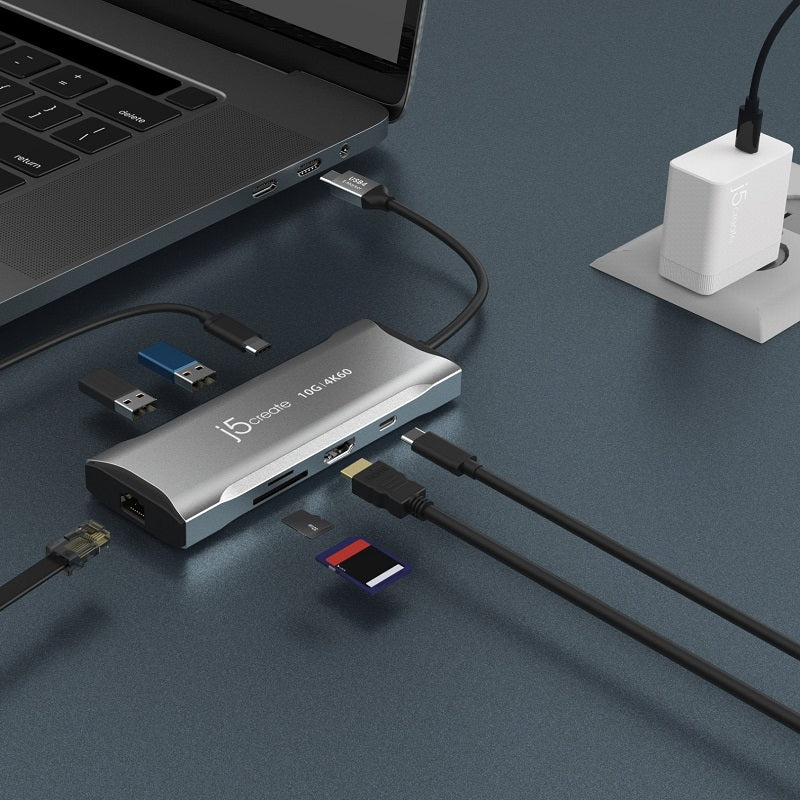

This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.

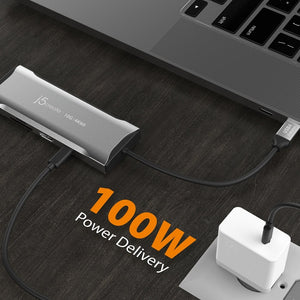

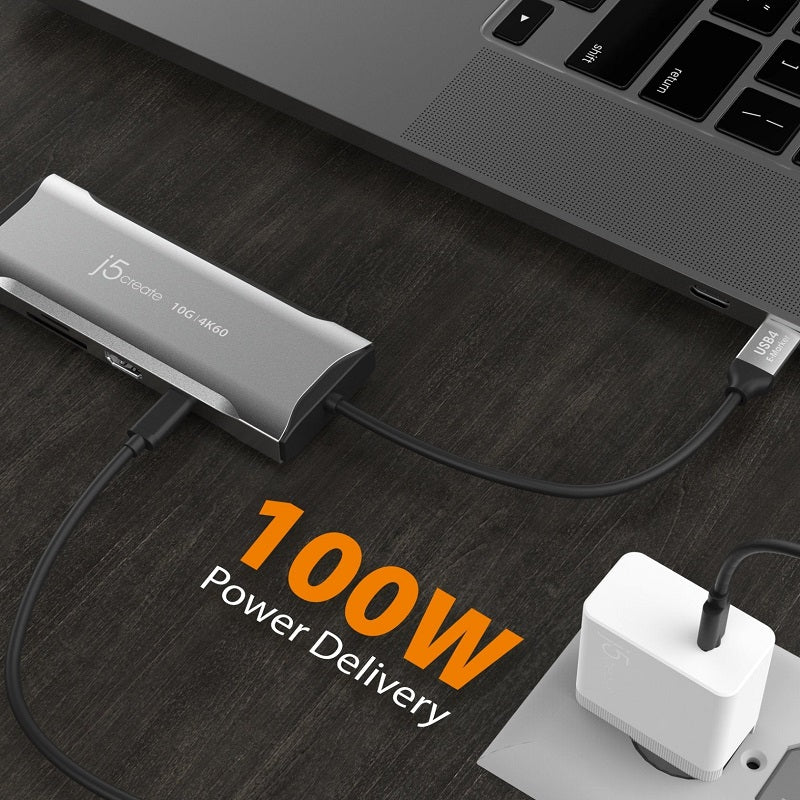

The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.2/3.1
- Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz

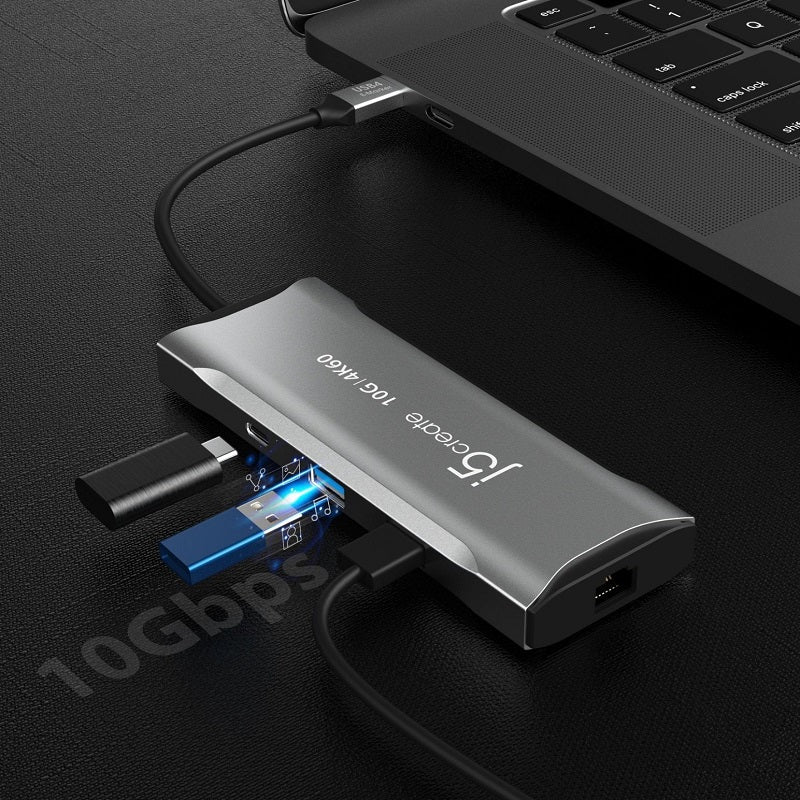

- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery

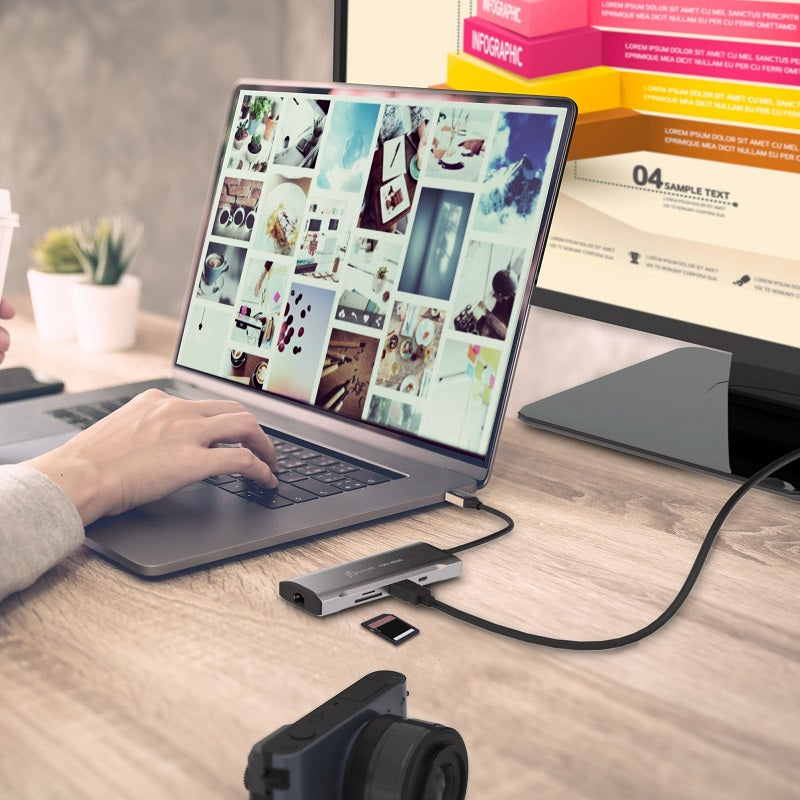

- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer

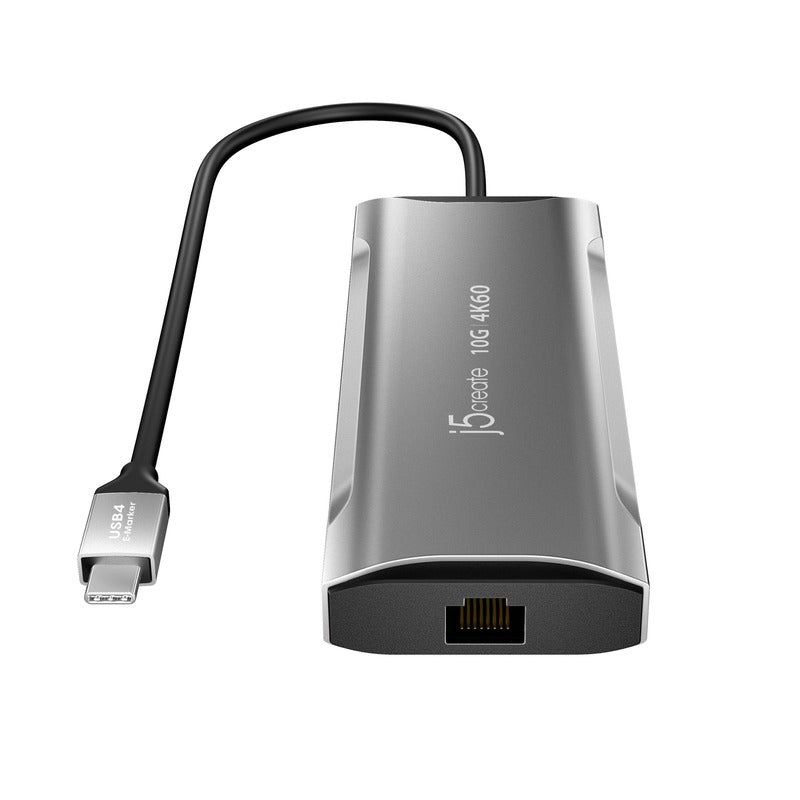

- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required

Audio Supported: Yes
Host Connector: 1 - USB-C® Male
Network Interface: RJ45 (Gigabit Ethernet)
1 - USB-C® SuperSpeed 10Gbps
2 - USB™ Type-A SuperSpeed 10Gbps
1 - USB-C® Power Delivery 3.0
1 - 4K HDMI™
1 - SD™ & microSD™ 4.0 memory card reader/writer
1 - RJ45 Gigabit Ethernet
Power Source: Bus-powered or self-powered
Video Output: 1 - HDMI™ Female
Warranty: 2 Year Limited

Audio Channel: 2.1 via HDMI™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 1
Max Data Transfer Rate: 10Gbps
Max Display Refresh Rate: 60 Hz
Max Display Resolution: 3840 x 2160

Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V
Power Consumption: ≤ 400 mA
Power Delivery: Up to 100W via USB-C®

Physical Specifications
Cable Length: 7.87 in. (200 mm)
Color: Champagne Space Grey
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 41°C)
Product Depth: 1.96 in. (50 mm)
Product Height: 0.62 in. (16 mm)
Product Weight: 3.77 oz (107g)
Product Width: 5.4 in. (138 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)

Package Contents
1 - JCD393 4K60 Elite USB-C® 10Gbps Mini Dock
1 - Quick Installation Guide (QIG)

System Requirements
- Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your computer for more information about your device
- The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:
  • Macbook Air® 13" 2019 or later
  • Macbook Pro® 15" 2017 or later
  • Macbook Pro® 16"
  • iPad Pro® 11"/12" 2018 or later
  • Surface™ Pro 7
  • Surface™ laptop 3
Special Notes
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 at 30 Hz
- The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. Do not remove the power adapter while copying files to avoid disruption.
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
