j5create USB-C Triple Display Docking Station

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, this docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.

This USB™ 3.0 docking station is also equipped with a RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port’s location.

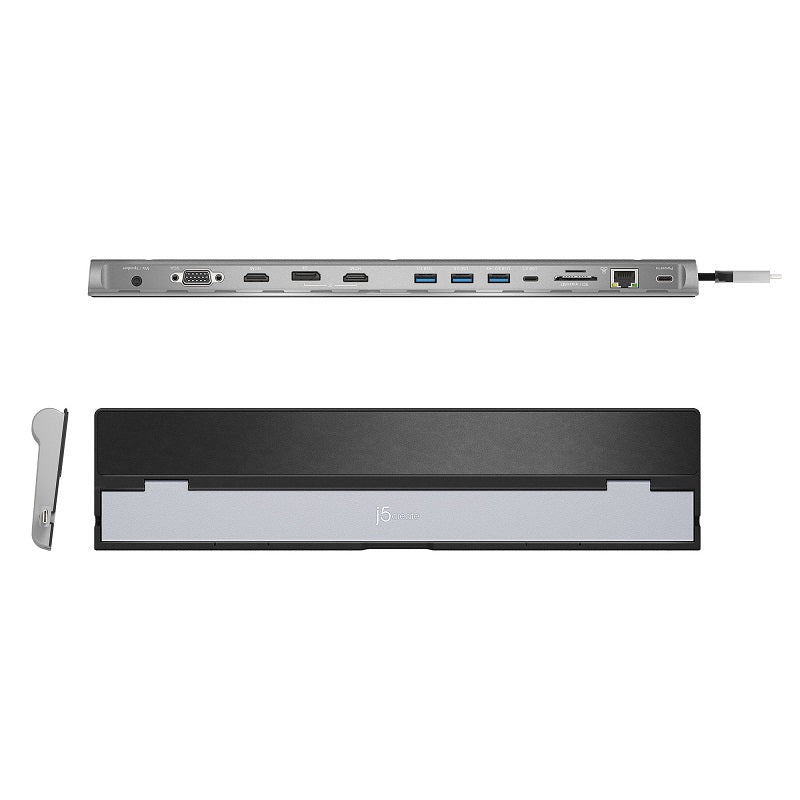

All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!

Create a triple-monitor setup with 4K HDMI™, 1080p VGA, and 4K DisplayPort™ outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
- HDMI™ + VGA + DisplayPort™

With the attached USB-C™ cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C™ power adapter.

To support all of your USB™ peripherals, the dock provides a total of four USB™ 3.0 ports (1 USB-C™ and 3 USB™ Type-A ports), a Gigabit Ethernet port, SD™/microSD™ card slots and a combo audio jack.

One of the USB™ 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB™ port.

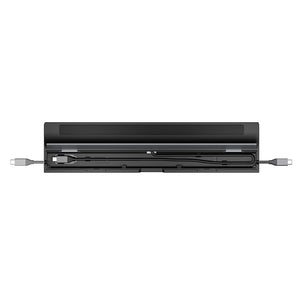

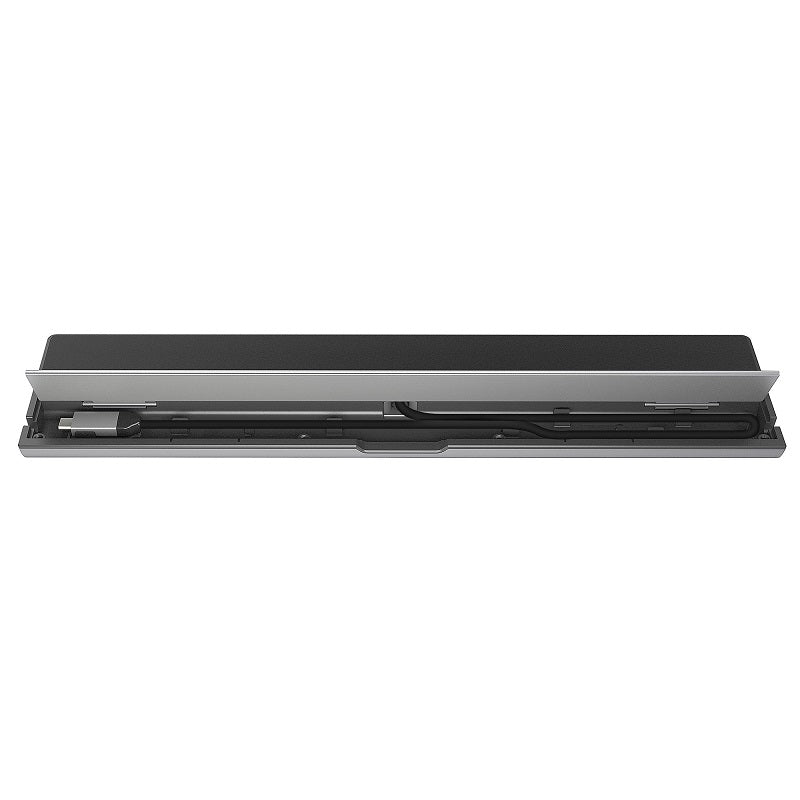

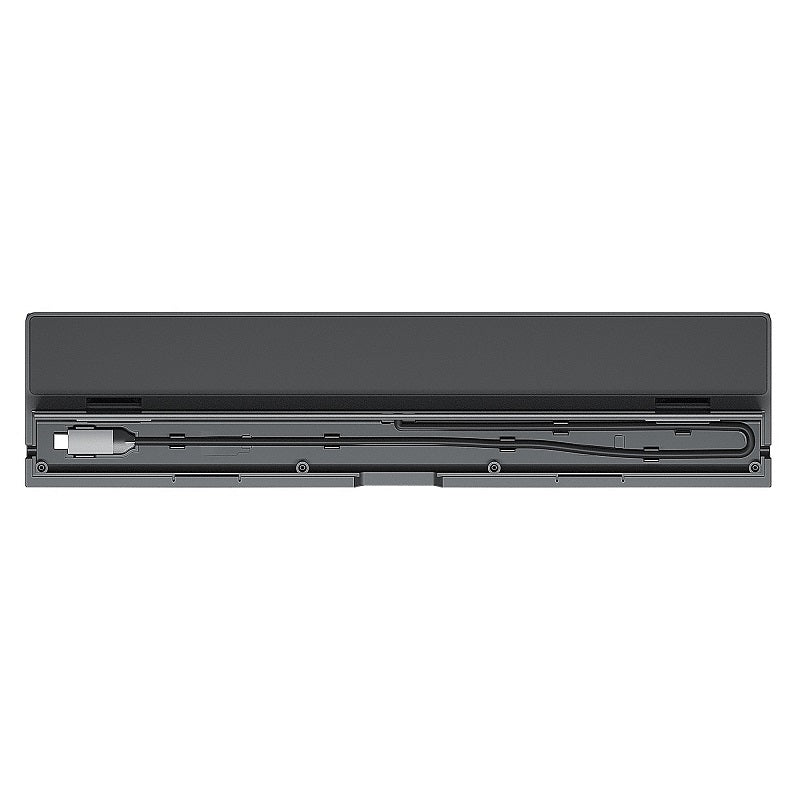

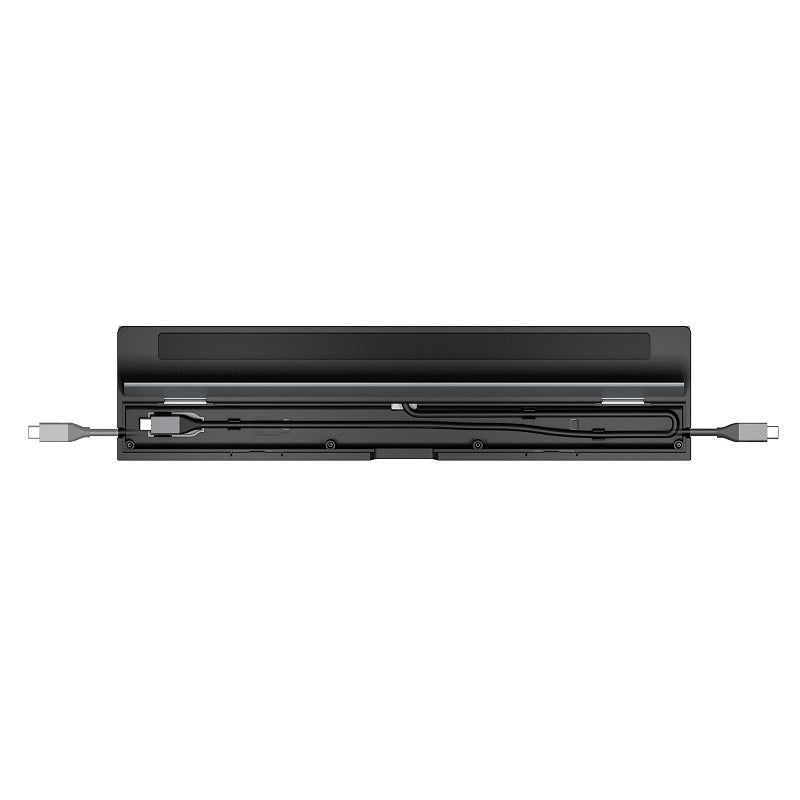

Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.

Audio Supported: Yes
Host Connector: USB-C™ Male
Network Interface: RJ45 (Gigabit Ethernet)
  • 2 - USB™ 3.0 Type-A
  • 1 - USB™ 3.0 Type-A fast charge
  • 1 - USB-C™ 3.1 Gen 1
  • 1 - USB-C™ Power Delivery 3.0
  • 2 - 4K HDMI™
  • 1 - DisplayPort™
  • 1 - VGA
  • 1 - SD™ & microSD™ memory card reader/writer
  • 1 - RJ45 Gigabit Ethernet
  • 1 - 3.5 mm combo audio jack
Power Source: Bus-powered or Self-powered
Usb Pass-Through: Yes
Video Output:
  • 2 - HDMI™ Female
  • 1 - DisplayPort™ Female
  • 1 - VGA Female
Warranty: 2 Year Limited

Audio Channel: 2.1 via HDMI™/DisplayPort™/3.5 mm Aux
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 3 (HDMI™, VGA and DisplayPort™ or HDMI™)
Max Data Transfer Rate: 5 Gbps
Max Display Refresh Rate:
  • HDMI™/DisplayPort™ 4K: 30 Hz
  • HDMI™/DisplayPort™ 1080p: 60 Hz
  • VGA: 60 Hz
Max Display Resolution:
  • HDMI™/DisplayPort™: 3840 x 2160
  • VGA: 1920 x 1080
Input Current: 5A
Input Voltage: 20V
Output Current: 5A
Output Voltage: 20V
Power Consumption: ≤ 900 mA
Power Delivery: Up to 100W via USB-C™

Physical Specifications
Cable Length: 1.48 ft (45 cm)
Color: Silver, Black
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Product Depth: 13.78 in. (350 mm)
Product Height: 0.92 in. (23.37 mm)
Product Weight: 10.58 oz (300g)
Product Width: 3.25 in. (82.5 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents
1 - JCD543 USB-C™ Triple Display Docking Station
1 - Quick Installation Guide

System Requirements
- Microsoft® Windows® 10 or later macOS® 10.14 or later
- Intel® HD Graphics 505 / AMD Radeon™ R5
- Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0. Please refer to the manufacturer of your hardware for more information on your device
- Extended Monitor System Requirements: (Higher processor recommended for multiple displays)
*One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
  • CPU: Intel® Core™ i5 Quad Core
  • RAM: 4 GB memory or higher
*Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
  • CPU: Intel® Core™ i7 Quad Core
  • RAM: 8 GB memory or higher
Special Notes
  • Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
  • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
  • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
  • The dock can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device
  • If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance
  • To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0
  • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
