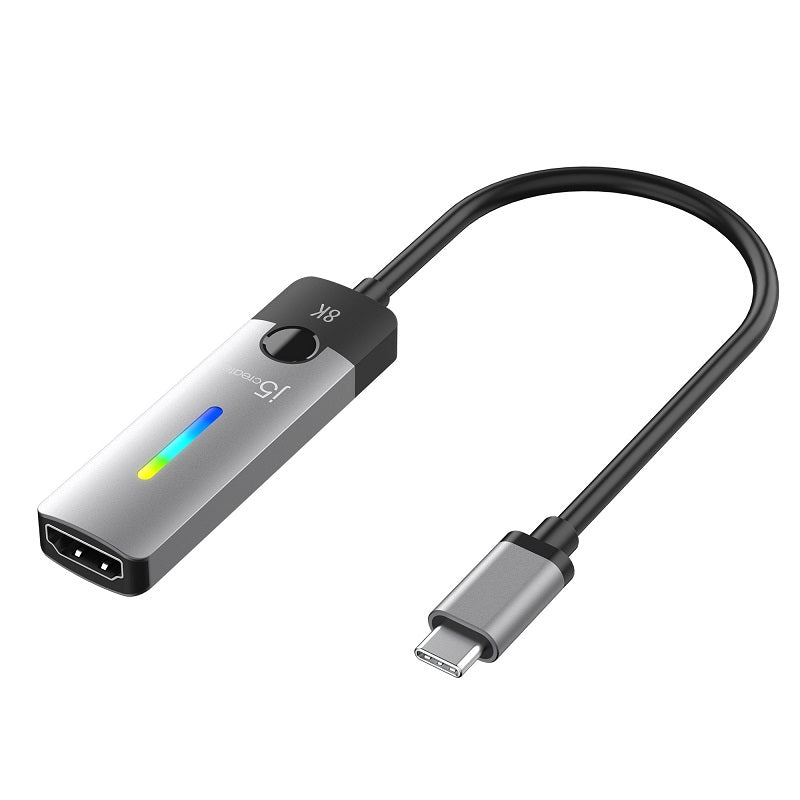

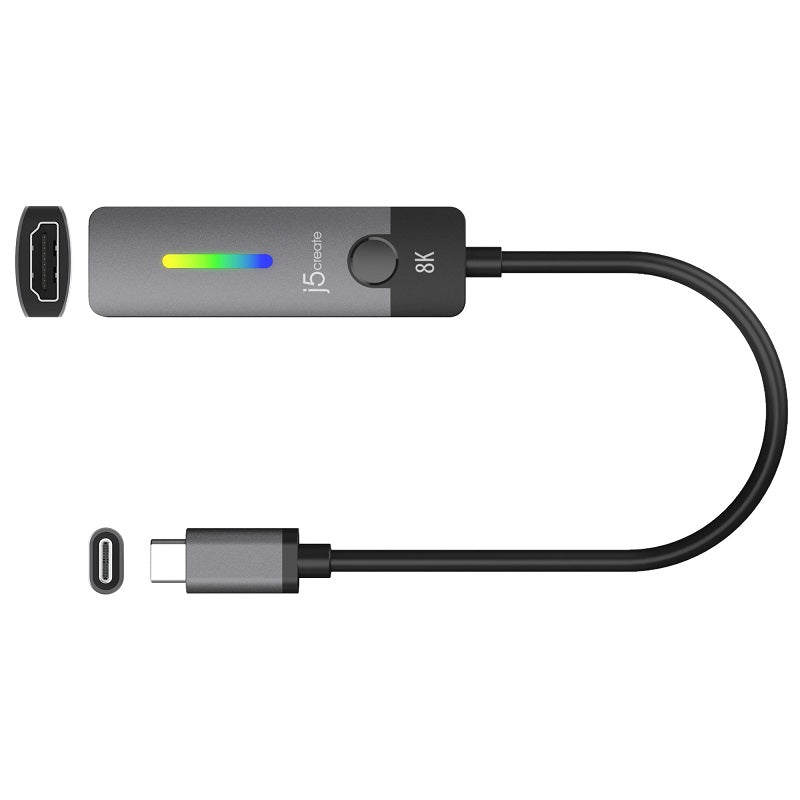

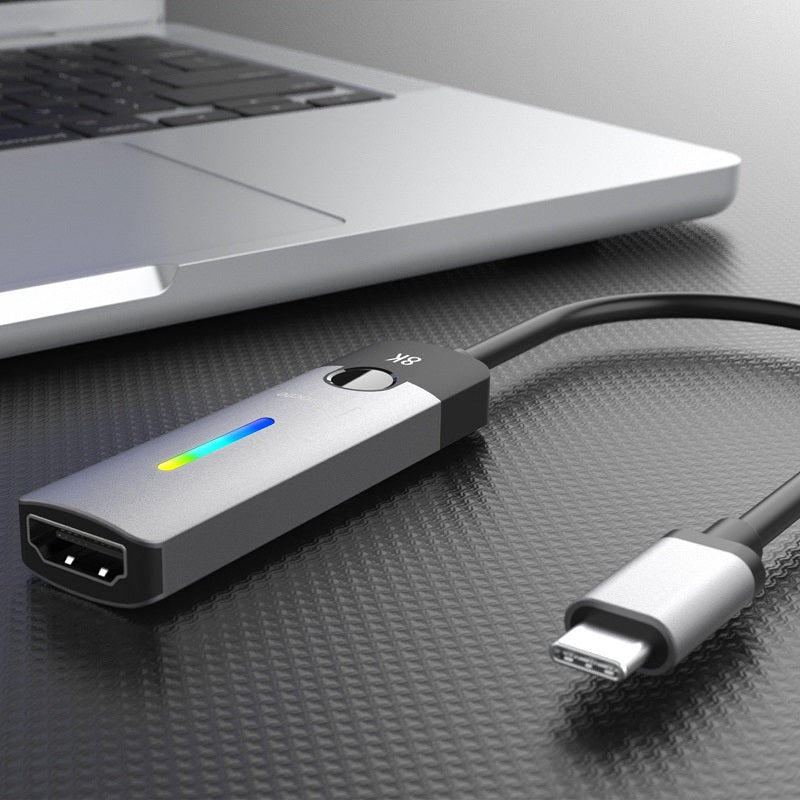

j5create USB-C to HDMI 2.1 8K Adapter

Our USB-C® to HDMI™ 2.1 8K Adapter allows you to conveniently connect your gaming laptop, MacBook®, Chromebook™, or tablet to an 8K UHD / 4K 144Hz external monitor, 8K UHDTV, projector and other display device using an HDMI™ input.

This adapter offers the latest USB-C® to 8K or 4K 144Hz HDMI™ connection, letting you hook up an HDMI™ display to a gaming laptop, tablet, or phone that supports DisplayPort™ Alternate Mode for a plug and play connection.

Features
- This adapter supports HDMI™ 2.1 allowing for resolutions up to 8K for gamers and professionals that need the highest resolution.
- Connect a USB-C® port with DP™ 1.4 Alt Mode protocol (compatible with DP™ 1.2 Alt Mode) enabled host devices to get 8K video to HDMI™ 2.1 (compatible with HDMI™ 2.0/1.4) enabled TVs for display
- Compliant with HDMI™ 2.1 specifications

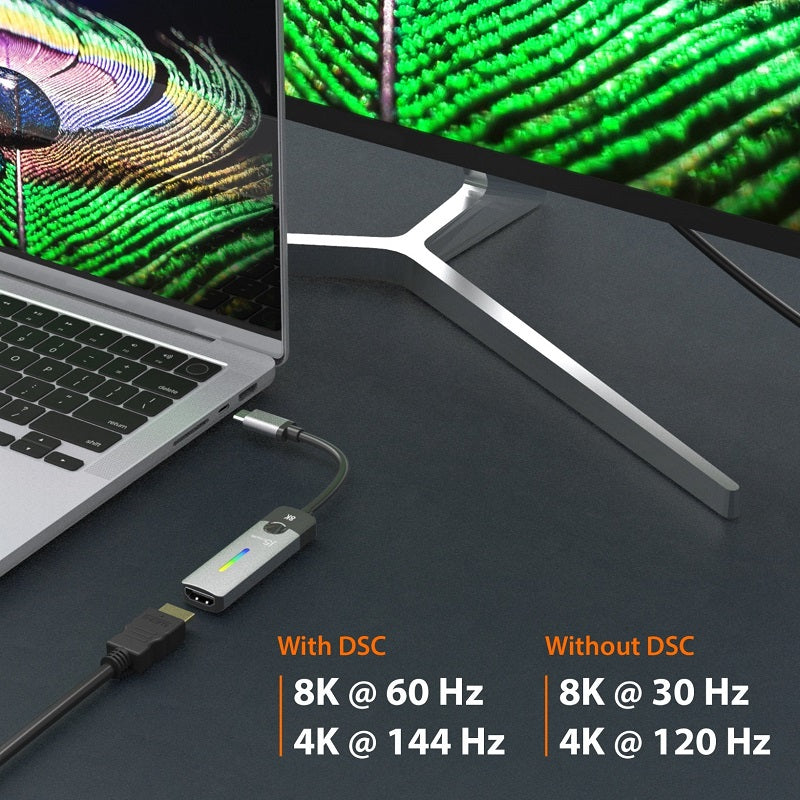

*With DSC: 8K @ 60 Hz or 4K @ 144 Hz
*Without DSC: 8K @ 30 Hz or 4K @ 120 Hz
- Supports 8K High Dynamic Range (HDR)

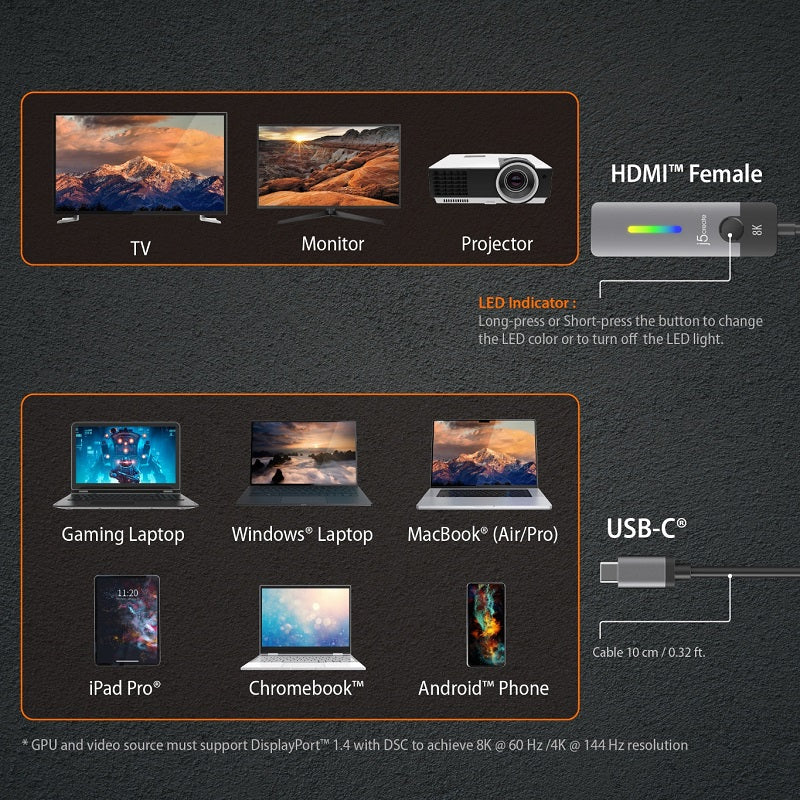

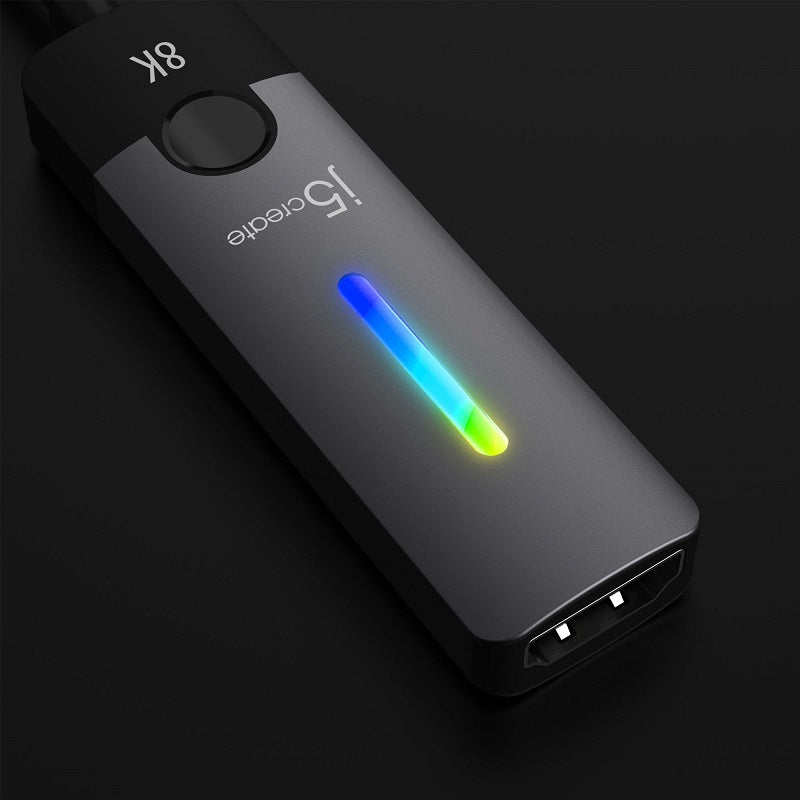

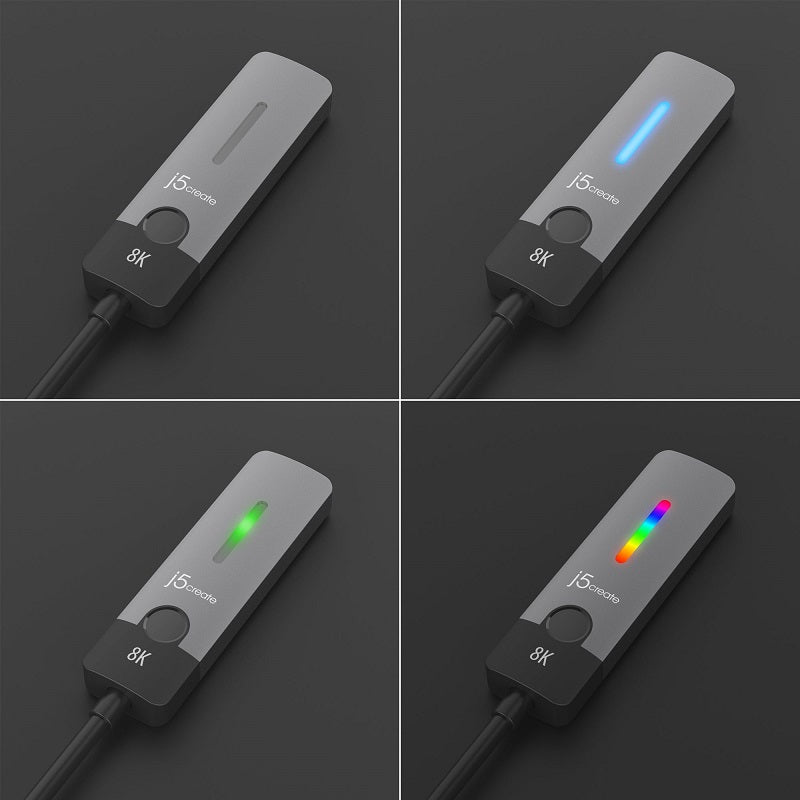

- RGB light indicator for gaming setups
- Ideal accessory for Windows® laptops, MacBook®, and Chromebook™ computers with a USB-C® port
- 3.94-inch (10 cm) high quality USB-C® cable
- No driver installation required

Specifications
Hardware:
Audio Supported: Yes
Host Connector: USB-C® Male (DP™ 1.4 Alt Mode)
Ports: 1 - HDMI™
Power Source: Bus-Powered
Usb Pass-Through: N/A
Video Output: HDMI™ 2.1 Male
Warranty: 2 Year Limited

Performance
Audio Channel: 2.1 via HDMI™
Displays Supported: Yes
Max Display Refresh Rate: 144 Hz
Max Display Resolution:
- With DSC:
3840 x 2160 @ 144 Hz
7680 × 4320 @ 60 Hz
- Without DSC:
3840 x 2160 @ 120 Hz
7680 × 4320 @ 30 Hz
Wide Screen Supported- Yes

Power
Power Consumption: N/A
Power Delivery: N/A

Physical Specifications
Cable Length: 3.94 in. (100 mm)
Color: Space Gray/Black
Enclosure Type: Aluminum/ Plastic
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 113°F (0 to 45°C)
Product Depth: 0.41 in. (10.45 mm)
Product Height: 2.75 in. (70mm)
Product Weight: 0.88 oz (28g)
Product Width: 0.8 in. (20.5 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 160°F (-10 to 71°C)

Package Contents
1 - USB-C® to HDMI™ 2.1 8K Adapter (JCA157)
1 - Quick Installation Guide (QIG)

Compatibility
System Requirements
- Available USB-C® port that supports DisplayPort™ Alt Mode
- GPU and video source must support DisplayPort™ 1.4 with DSC to achieve 8K @ 60 Hz /4K @ 144 Hz resolution

Special Notes
- The resolution may be limited to 4K @ 60 Hz with macOS® and iOS® devices.
