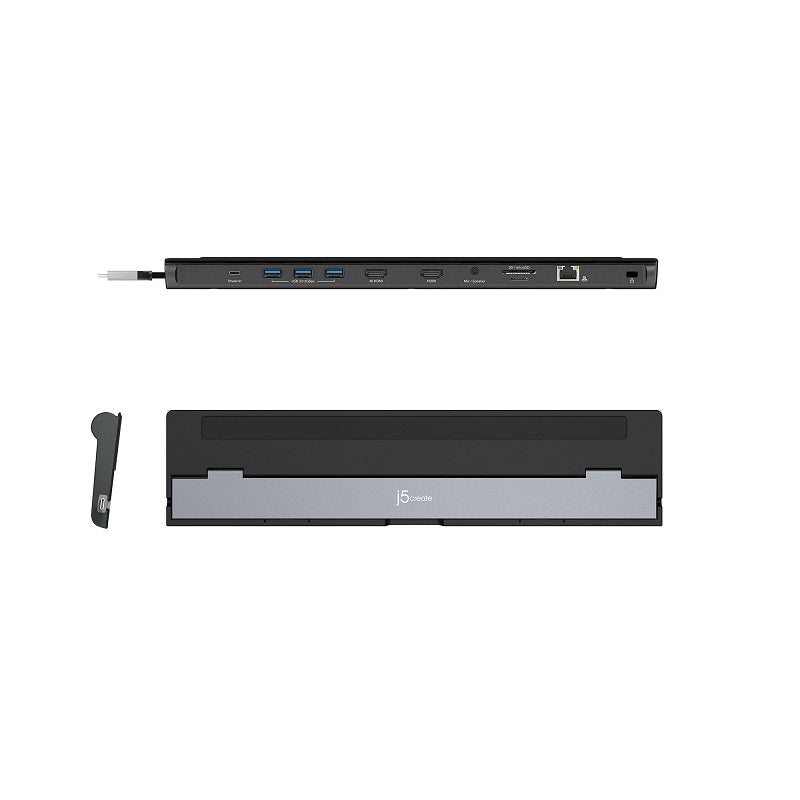

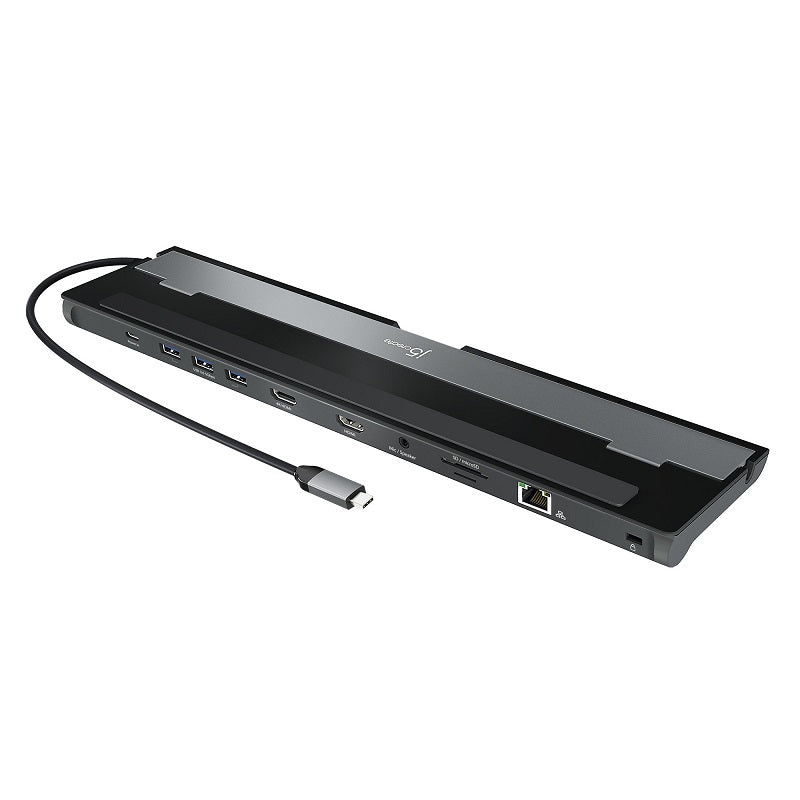

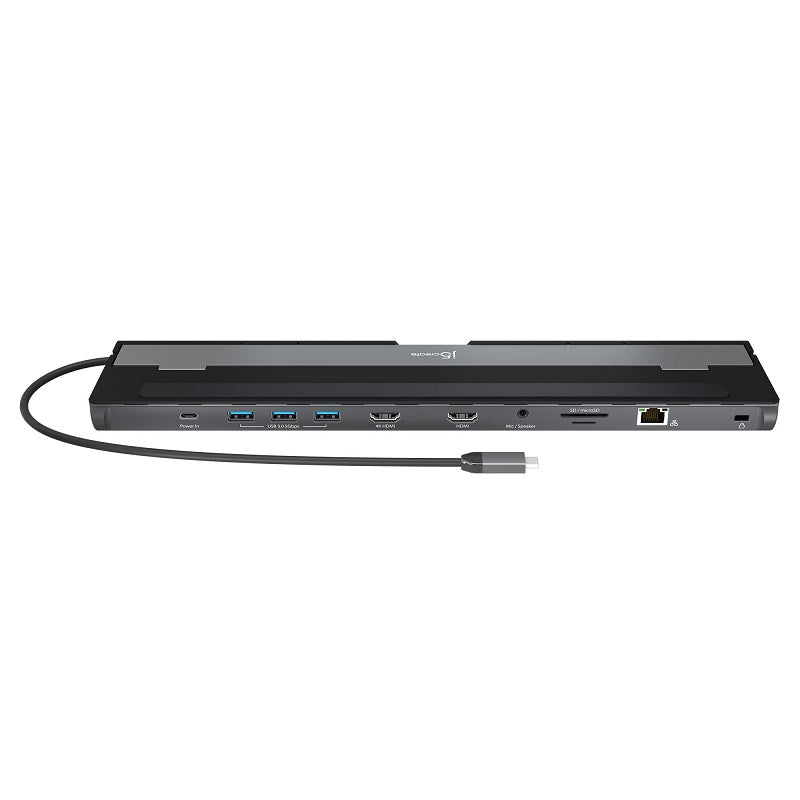

j5create USB-C to Dual HDMI Docking Station w/ 100W PD

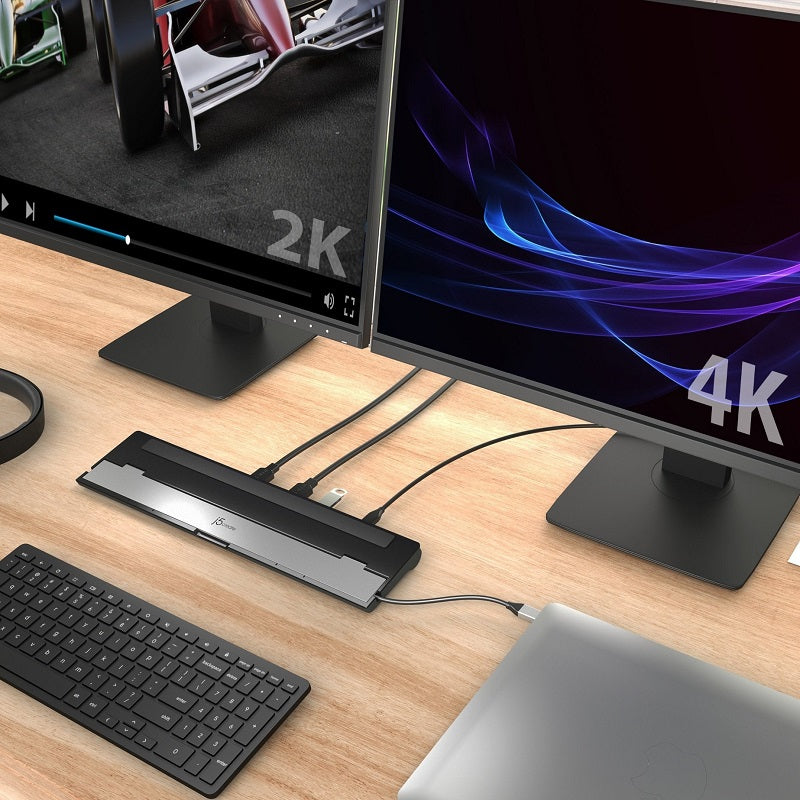

This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.

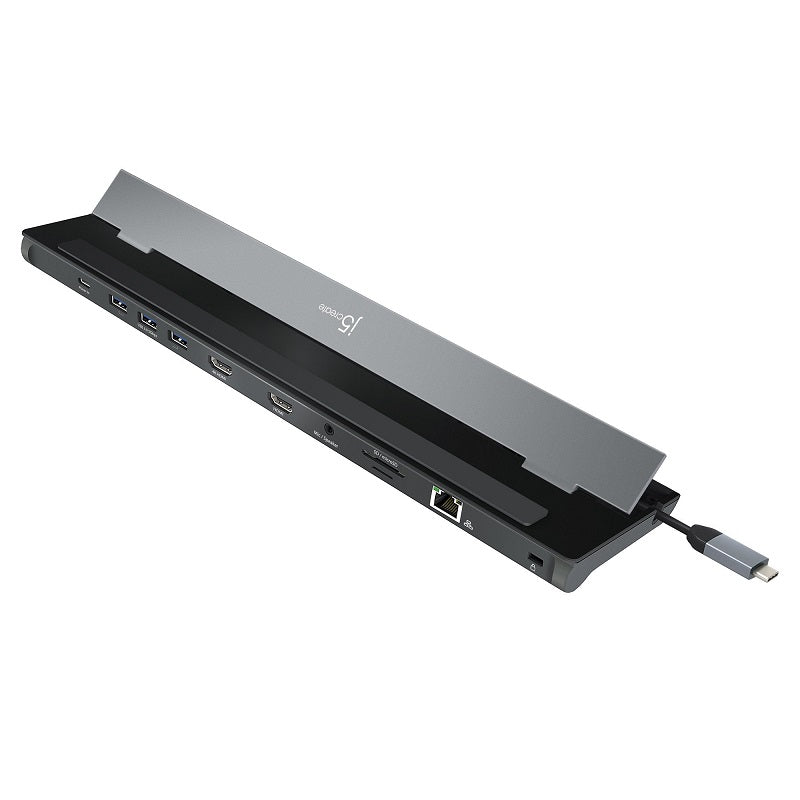

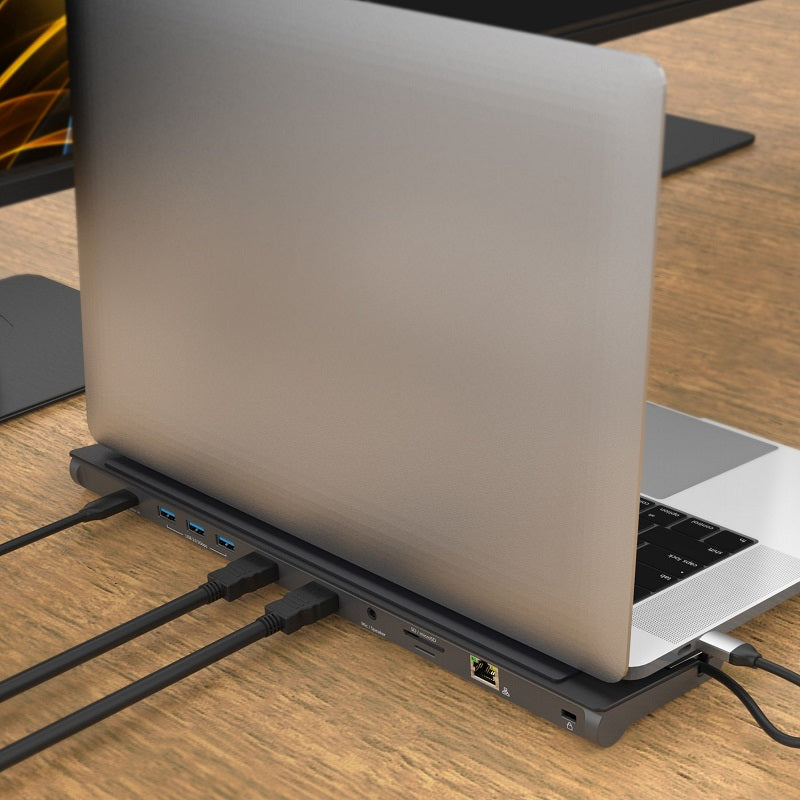

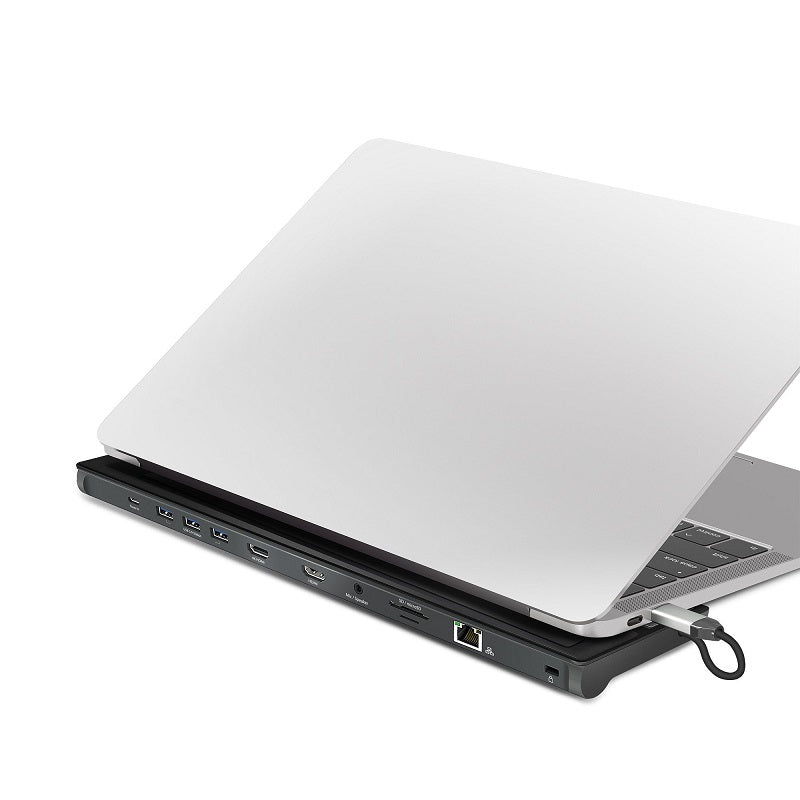

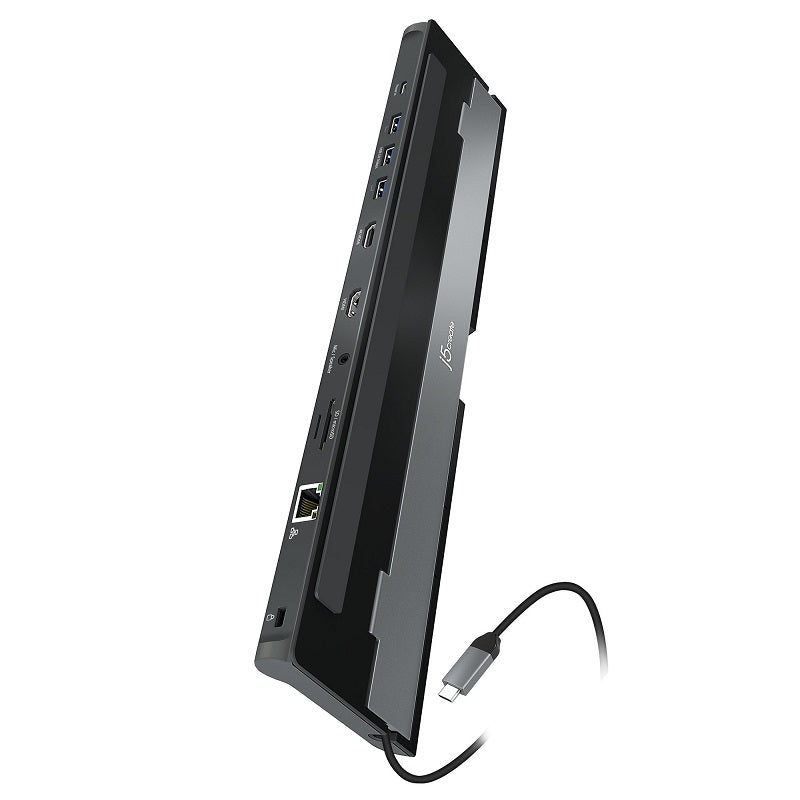

This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.

Features

• Dual displays via HDMI™ outputs
• Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter
• Connect and charge your USB™ devices with 3 x USB™ ports
• Reliable network connectivity via the Gigabit Ethernet port
• Direct access to SD™ & microSD™ memory cards for data storage and transfer
• 3.5mm audio jack to connect microphone/headphone

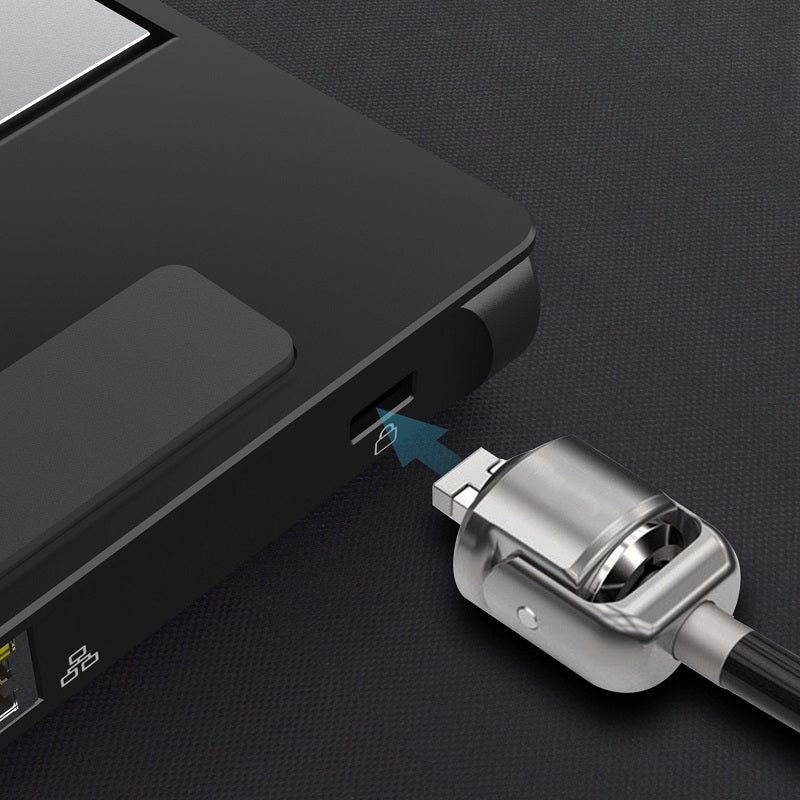

• Security lock slot for anti-theft protection

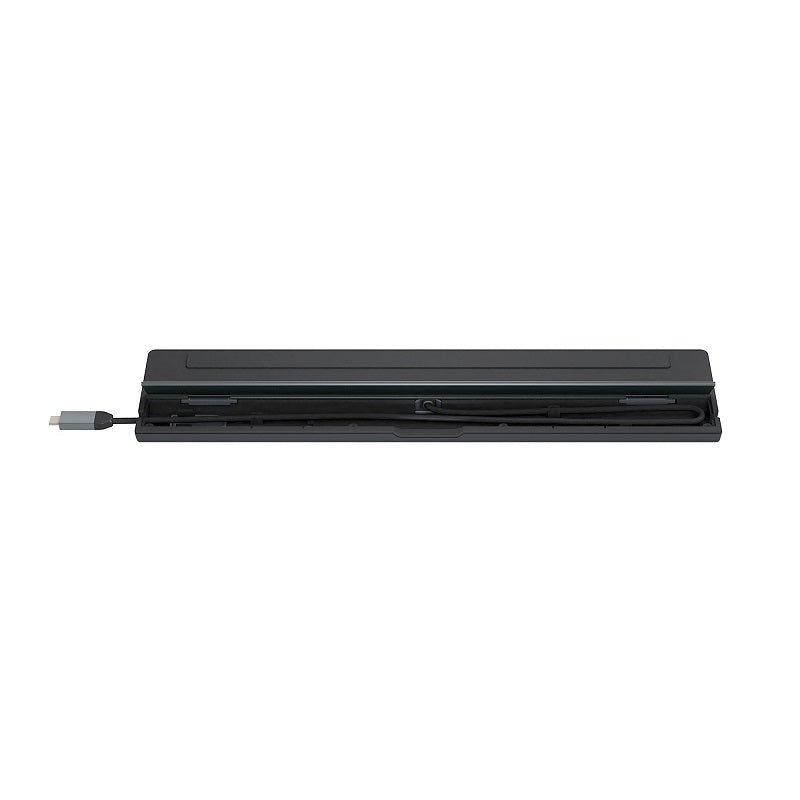

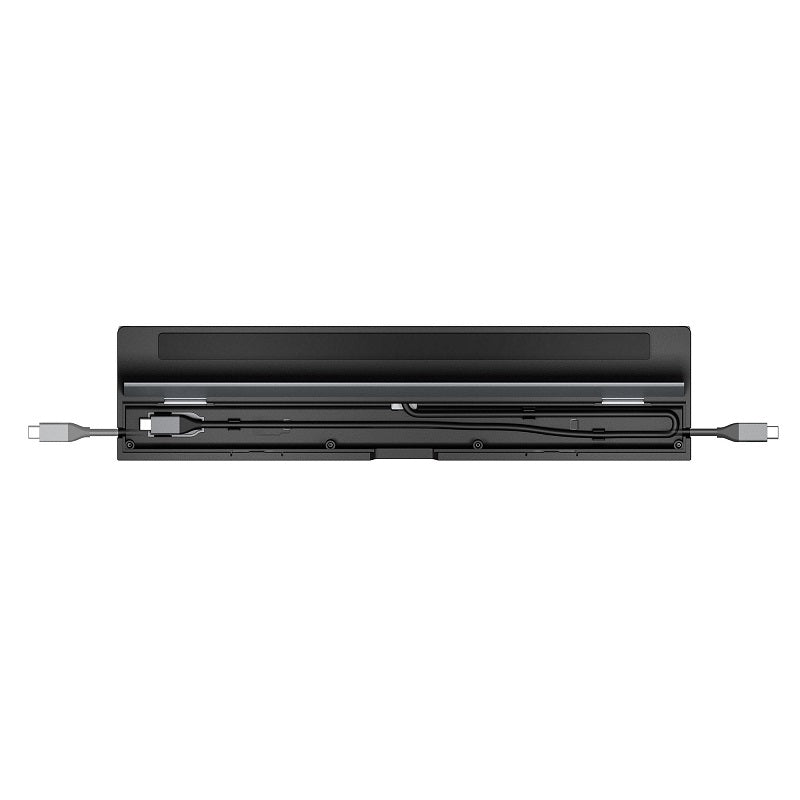

• Convenience setup with double-sided cable storage compartment
• Heat-eliminating design

Specifications
Hardware
Audio Supported: Yes
Host Connector: USB-C™ Male
Network Interface: RJ45 (Gigabit Ethernet)
Ports:

• 1 - USB-C® Power Delivery 3.0
• 3 - USB™ 3.0 Type-A
• 1 - 4K HDMI™
• 1 - 2K/1080p HDMI™
• 1 - SD™ & microSD™ memory card reader/writer
• 1 - RJ45 Gigabit Ethernet
• 1 - 3.5 mm combo audio jack

Power Source: Bus-powered
Usb Pass-Through: Yes
Video Output: 2 - HDMI™ Female
Warranty: 2 Year Limited

Performance
Audio Channel: 2.1 via HDMI™ / 3.5 mm Aux
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 2
Max Data Transfer Rate: 5 Gbps
Max Display Refresh Rate:

• 4K @ 30 Hz
• 2K @ 60 Hz

Max Display Resolution:
- Dual Displays:
3840 x 2160 and 2048 x 1152 / 1920 x 1080
- Single Display:
3840 x 2160

Power
Input Current: 5A
Input Voltage: 20V
Output Current: 5A
Output Voltage: 20V
Power Consumption: ≤ 900 mA
Power Delivery: Up to 100W via USB-C®

Physical Specifications
Cable Length: 1.48 ft (45 cm)
Color: Grey & Black
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Product Depth: 13.79 in. (350.18 mm)
Product Height: 0.87 in. (21.98 mm)
Product Weight: 10.79 oz (306 g)
Product Width: 3.25 in. (82.46 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents
1 - JCD542 USB-C® Dual HDMI™ Docking Station
1 - Quick Installation Guide (QIG)

Compatibility
System Requirements
- Microsoft® Windows® 10 or later macOS® 10.14 or later
Intel® HD Graphics 4000/ ATI™ HD 7xxx/ NVIDIA® 5XXM or higher
- Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
- Please refer to the manufacturer of your computer for more information about your device
- Extended Monitor: (More powerful processors recommended for multiple displays)
*One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core™ i5 Quad Core
RAM: 4 GB memory or higher
*Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core™ i7 Quad Core
RAM: 8 GB memory or higher

Special Notes

• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
• The dock can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
• If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
• To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
