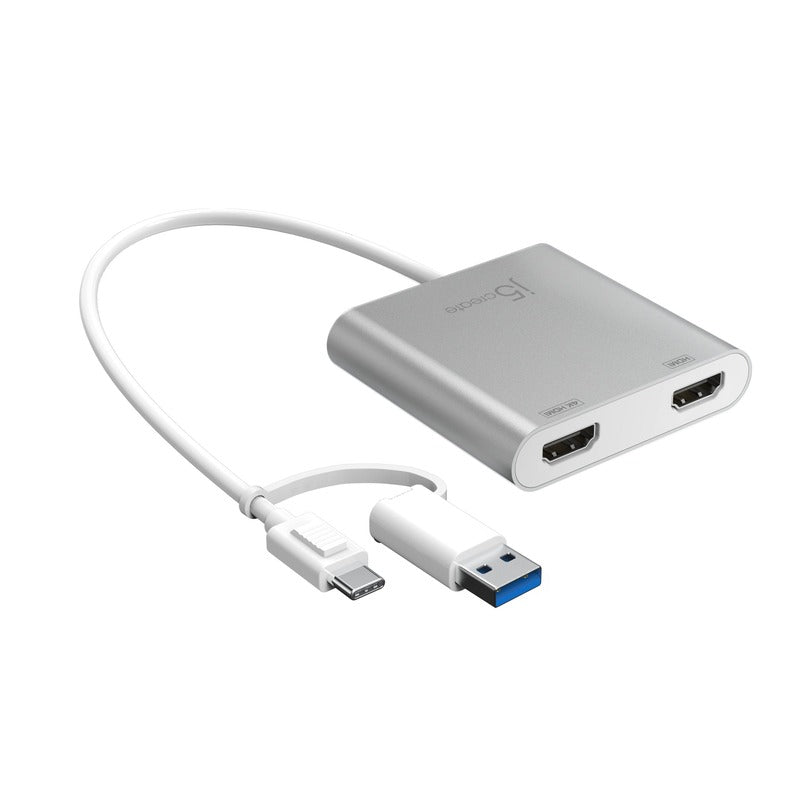

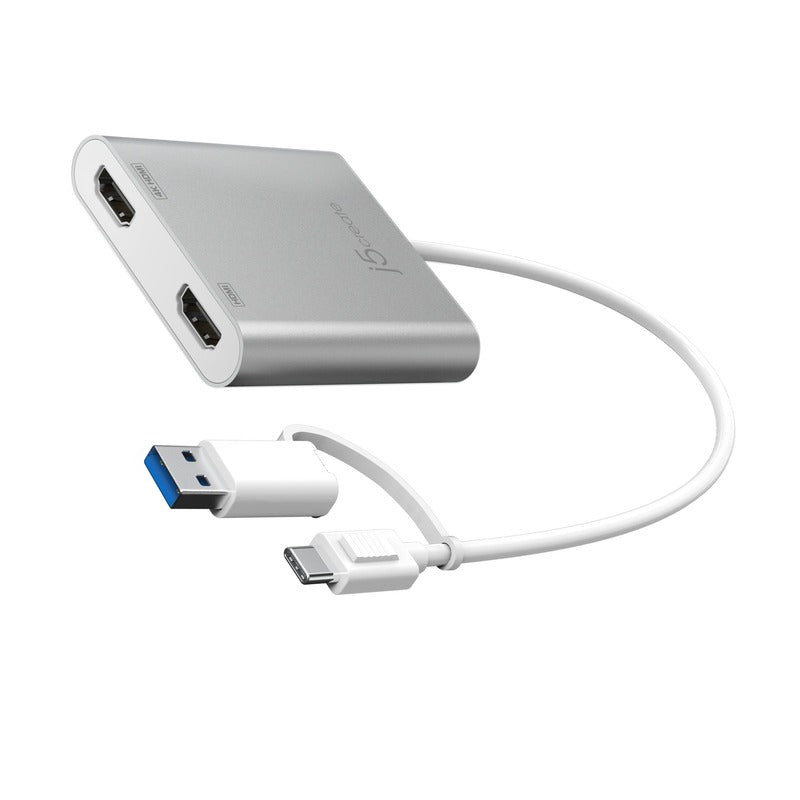

j5create USB-C to Dual HDMI 4K/2K Multi-Monitor Adapter

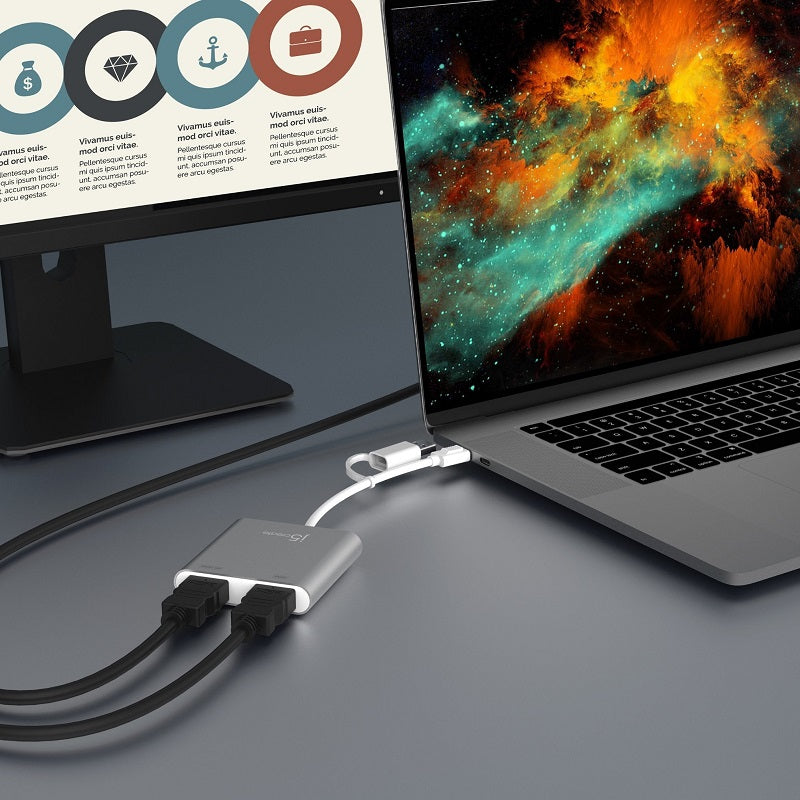

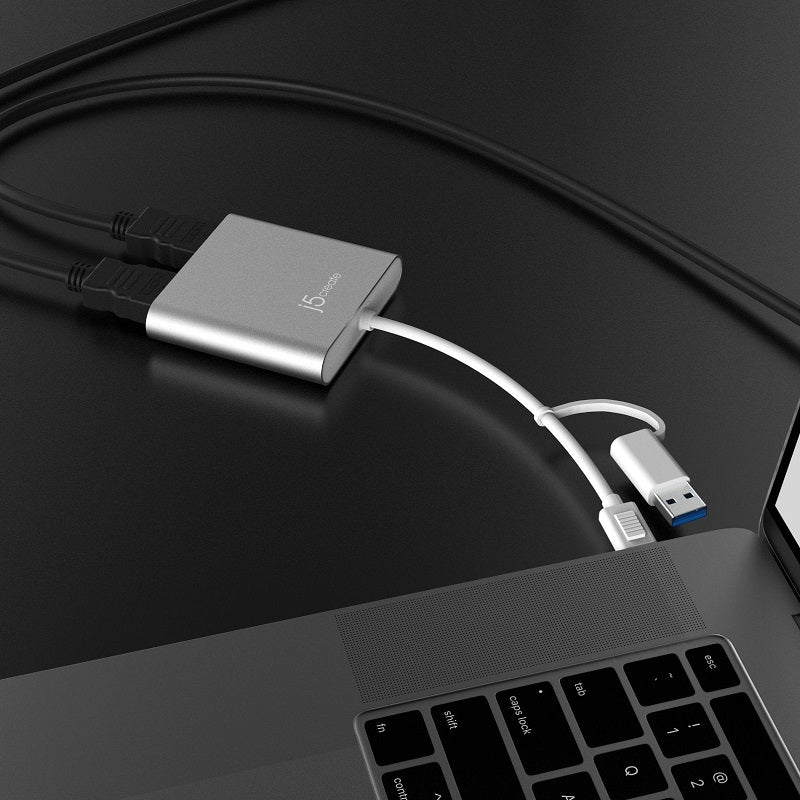

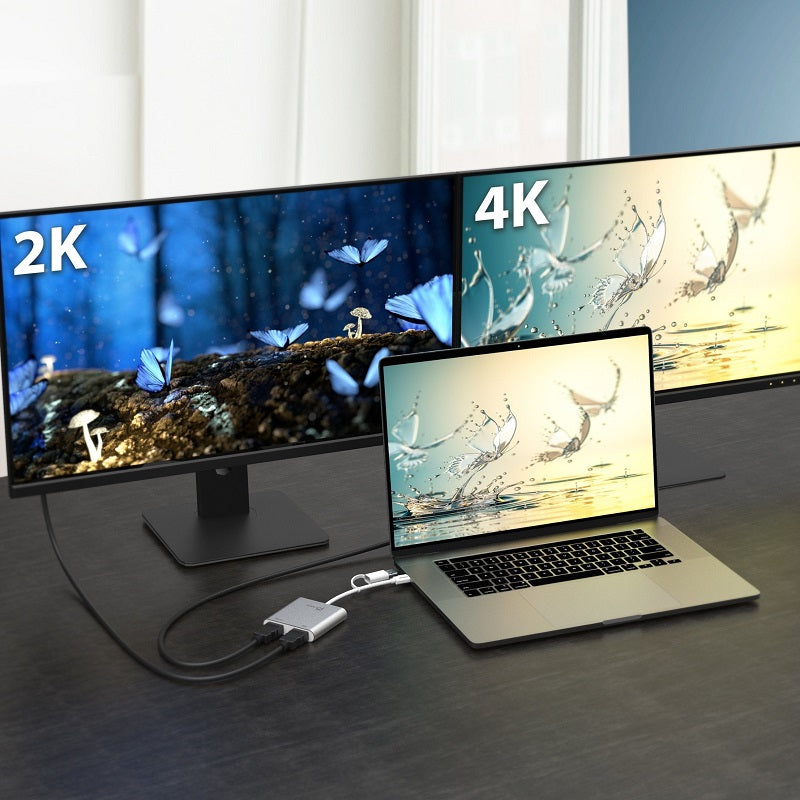

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.

Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!

- Easily add two HDMI™ video outputs though a single USB-C® port
- Compatible with USB-C® enabled macOS® & Windows® laptops
- Compact and lightweight design for maximum portability
- 4 display modes: Mirror, Extended, Primary, or Rotation*
*Rotation mode only available on Windows® computers

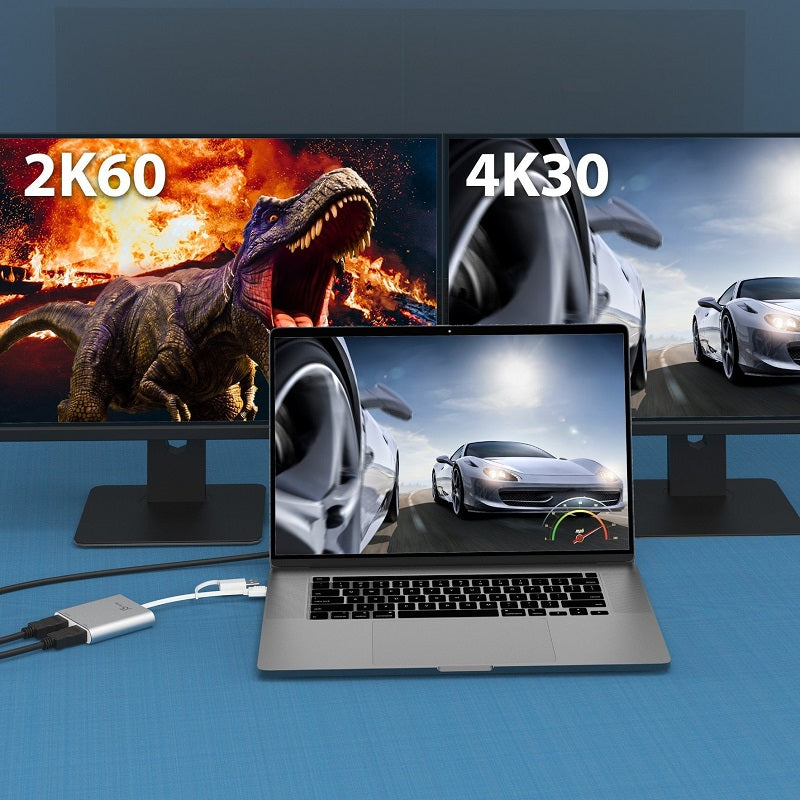

- Supports resolutions up to 3840 x 2160 @ 30 Hz & 2048 x 1152 @ 60 Hz
- Hot swappable USB™ enables you to add or remove monitors without rebooting your system
- USB™ 3.1 provides up to 5 Gbps transfer rate which is 10x faster than USB™ 2.0
- 2-channel audio support

Audio Supported: Yes
Host Connector: USB-C® 3.1 Male
1 - HDMI™
1 - 4K HDMI™
Power Source: Bus-powered
Usb Pass-Through: No
Video Output: HDMI™ Female
Warranty: 2 Year Limited

Audio Channel: 2.1 via HDMI™
Displays Supported: 2
Max Data Transfer Rate: N/A
Max Display Refresh Rate:
- 4K @ 30 Hz
- 2K @ 60 Hz
Max Display Resolution: 3840 x 2160
Wide Screen Supported: N/A

Power Consumption: ≤ 600 mA
Power Delivery: N/A

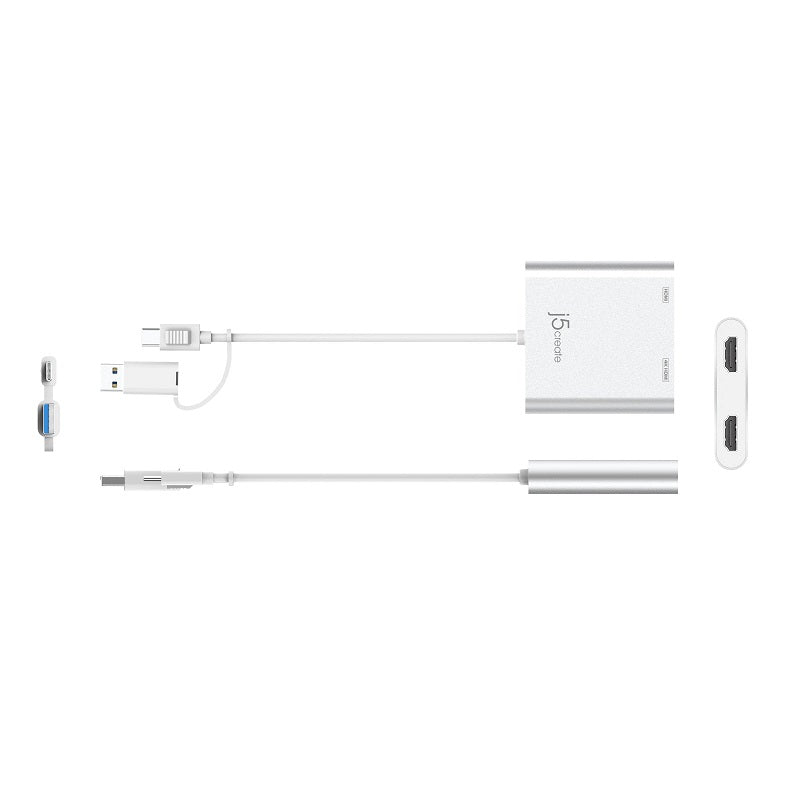

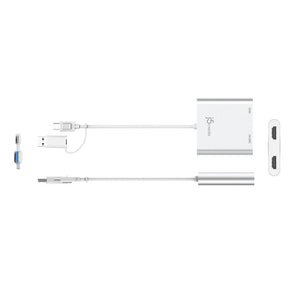

Physical Specifications
Cable Length: 7.87 in. (200 mm)
Color: Silver
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 104°F (0 to 40°C)
Product Depth: 0.59 in. (15 mm)
Product Height: 2.4 in. (61 mm)
Product Weight: 2.96 oz (84g)
Product Width: 2.68 in. (68 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents
1 - USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)
1 - Quick Installation Guide (QIG)

System Requirements
Windows® 10 or later
- macOS® 10.9 or later
Available USB-C® port
- USB™ 3.1/3.0 is required for 4K resolutions
For Office applications/Web browsers:
- CPU: Intel® Core™ i3 5th gen Dual Core 1.8 GHz
- RAM: 4 GB memory or higher
For 2048 x 1152 @ 60 Hz full-screen video playback:
- CPU: Intel® Core™ i5 5th gen Quad Core
- RAM: 4 GB memory or higher
For one 4K or two 2048 x 1152 @ 60 Hz full-screen video playback:
- CPU: Intel® Core™ i7 5th gen Quad Core
- RAM: 8 GB memory or higher
- GPU: Intel® HD Graphics 5xx or AMD™/ NVIDIA® equivalent or higher

Special Notes
- Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
- The adapter is not intended for graphic intensive applications, such as gaming
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- The adapter can connect to a USB™ 2.0 port, but it will only support resolutions up to 2048 x 1152 @ 60 Hz
- Rotation mode is supported on Windows® only
- Only one adapter is supported per macOS® computer
- Content protected by HDCP may not play when connected to an unsupported display
- Internet access is required to automatically install the driver on Windows® 10
- To ensure that your device is equipped with the most current driver.
