j5create USB-C to 4K HDMI Cable w/ USB Type-A 5V Pass-Through (1.8m)

The JCC154G enables you to output high-definition HDMI™ 4K video through a USB-C® port that supports DisplayPort™ Alternate Mode. The USB-C® display cable gives you the ability to quickly and easily connect your USB-C® device to an HDMI™ TV or display. The additional USB™ Type-A 5V 1.5A cable allows you to charge a smartphone or tablet when connected to a USB™ Type-A charger. Due to the 5V power rating, charging for laptops is not supported.

- Plug-and-play – No software required
- Compliant with HDMI™ 2.0 specifications 4K @ 60 Hz
- Ideal accessory for laptops, tablets, and smartphones with a USB-C® port

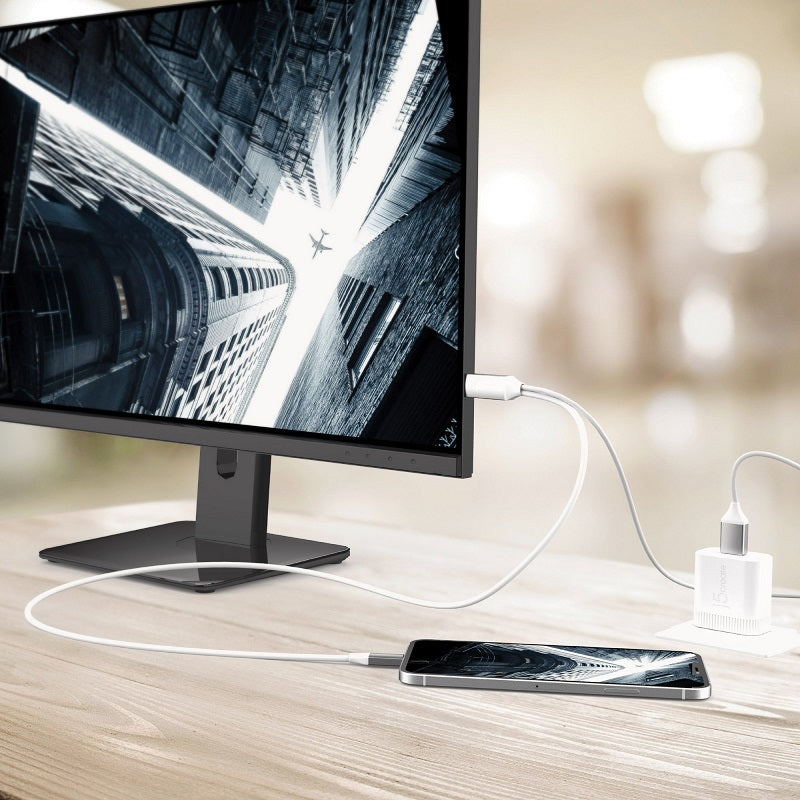

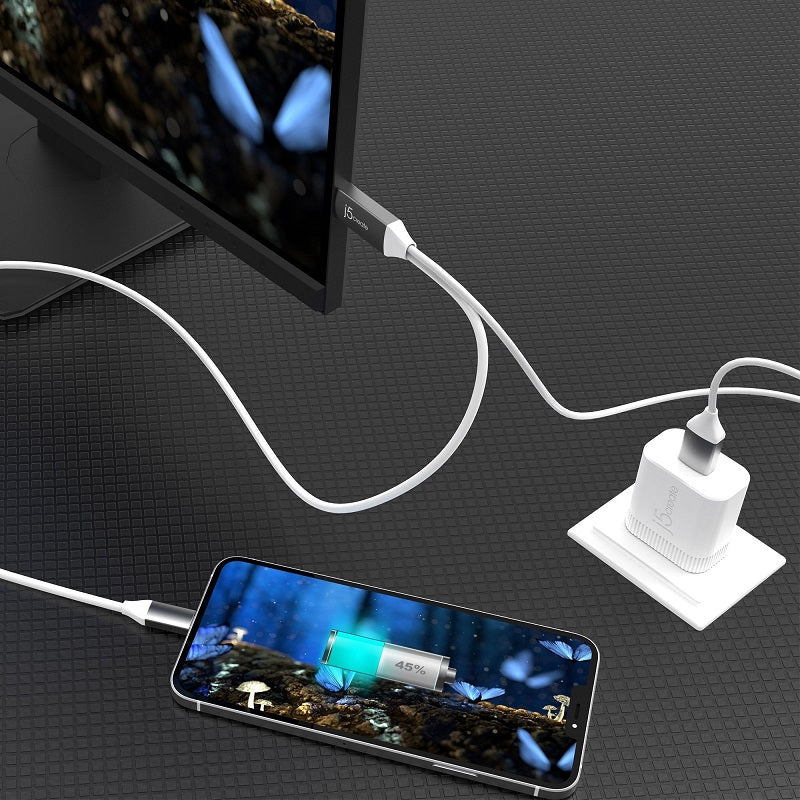

- Additional USB® Type-A 5V/1.5A cable allows up to 7.5W of charging for smartphones or tablets

Cable Jacket Type: PVC
Cable Shield Type: Aluminum

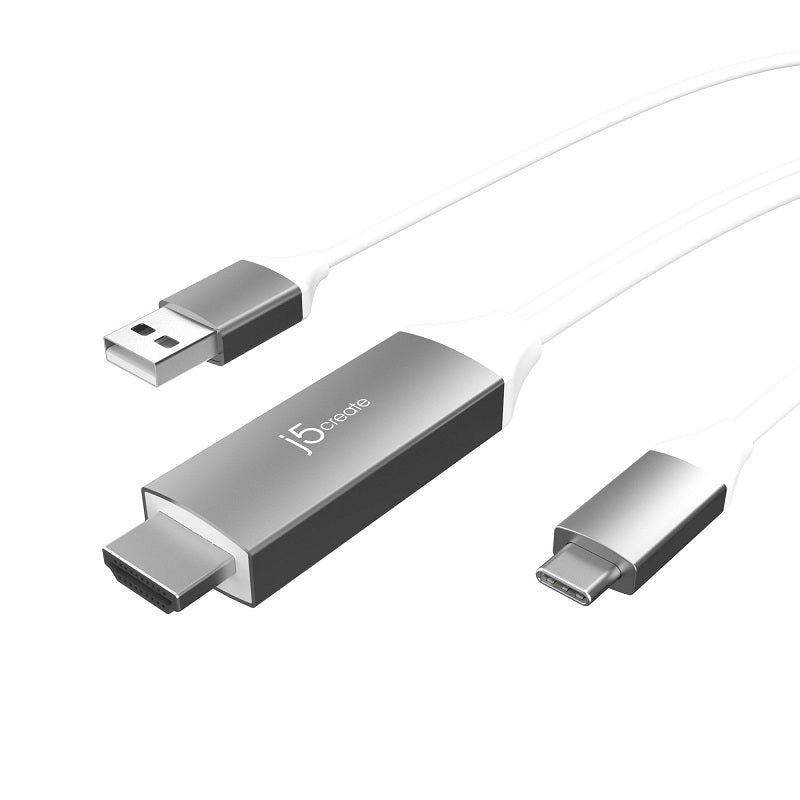

Connector A:
1 - USB-C® Male
1 - USB™ Type-A Male for Charging
Connector B: 1 - HDMI™ Male
Warranty: 1 Year Limited

Audio Channel: 2.1 via HDMI™
Displays Supported: 1
Max Data Transfer Rate: 18 Gbps
Max Display Refresh Rate: 60 Hz
Max Display Resolution: 3840 x 2160
Wide Screen Supported: Yes

Physical Specifications

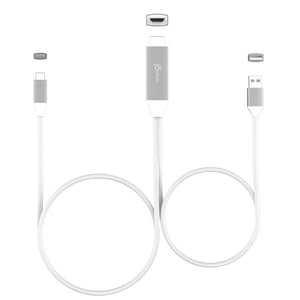

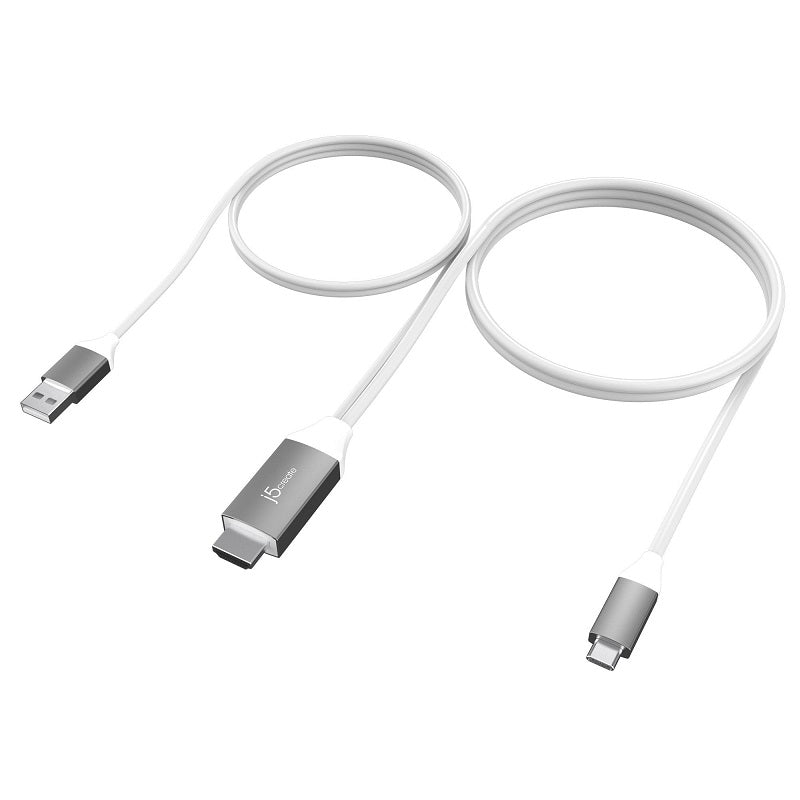

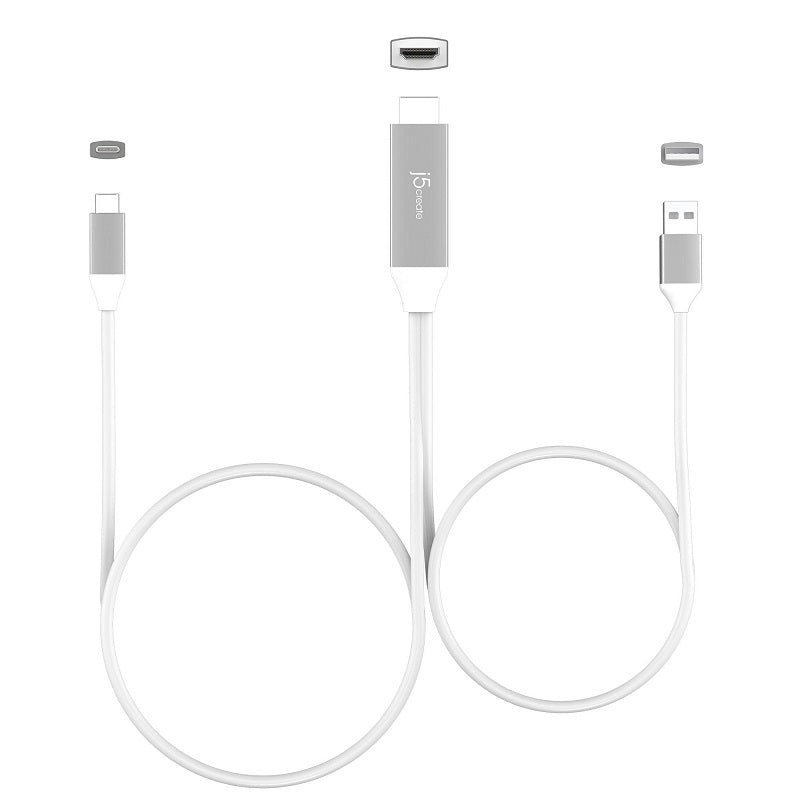

Cable Length:
- USB-C® cable: 6 ft. (180 cm)
- USB™ Type-A cable: 4 ft. (120 cm)
Color: Gray & White
Connector Type: N/A
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 113°F (0 to 45°C)
Product Depth: 0.45 In. (11.6 mm)
Product Height: 0.79 In. (20.2 mm)
Product Weight: 2.20 oz (62.5 g)
Product Width: 2.58 In. (65.6 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 160°F (-10 to 71°C)

Package Contents
1 - JCC154G USB-C® to 4K HDMI™ Cable with USB™ Type-A 5V Pass-Through
1 - Quick Installation Guide

System Requirements
- Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device
- DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 60 Hz resolution

Special Notes
- If you are using a high-powered USB™ device, attach the USB™ Type-A to a power adapter to ensure maximum performance.
