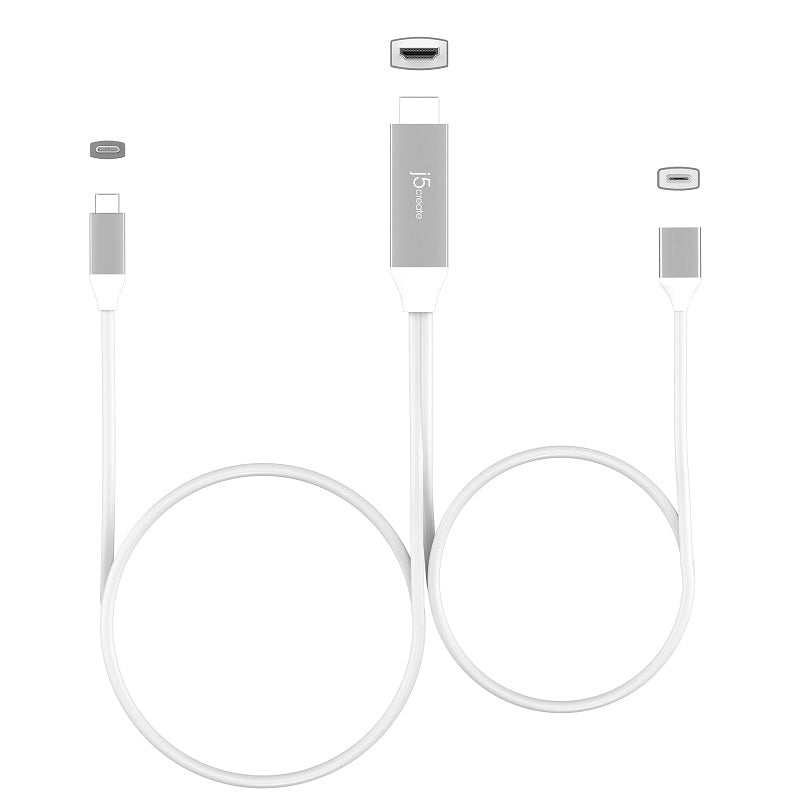

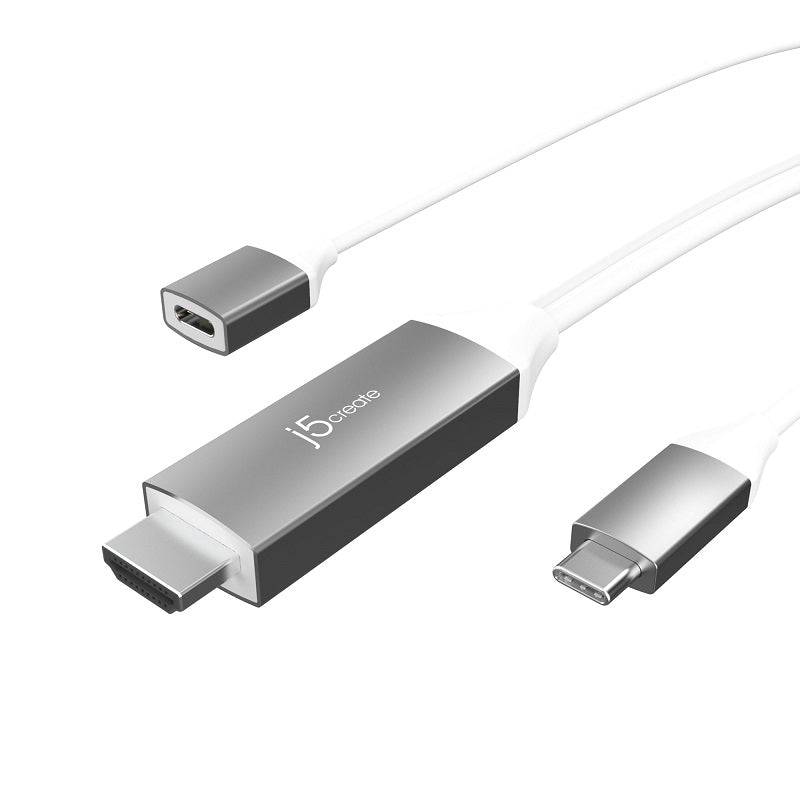

j5create USB-C to 4K HDMI Cable w/ PD 100W Pass-Through

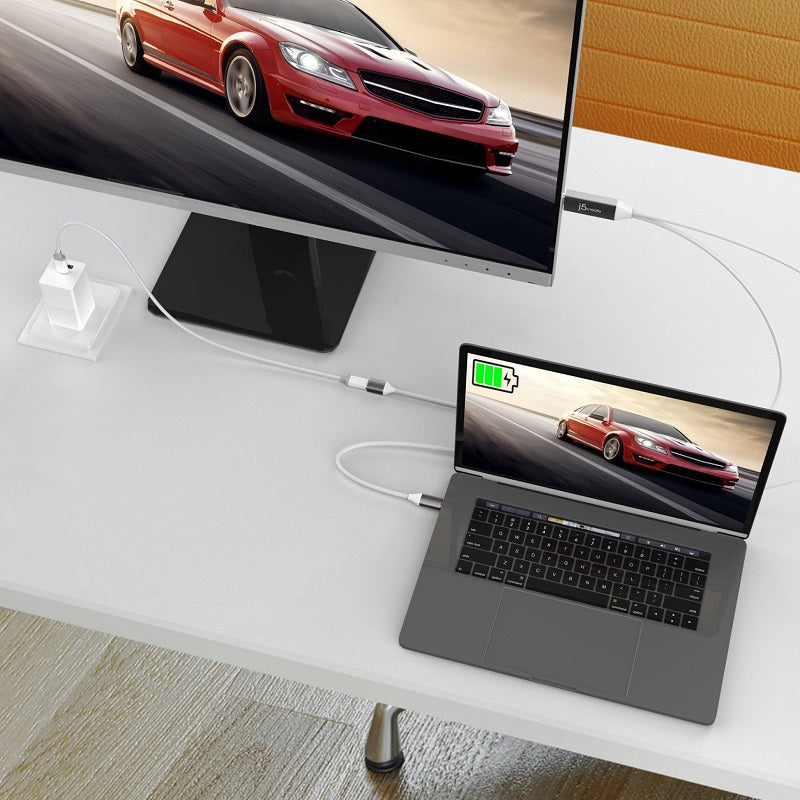

The JCC155G enables you to output high-definition HDMI™ 4K video through a USB-C® port that supports DisplayPort™ Alternate Mode. The USB-C® display cable gives you the ability to quickly and easily connect your USB-C® device to an HDMI™ TV or display. The additional USB-C® female port makes it possible to charge your device and still be able to connect to a display.

- Plug-and-play – No software required
- Compliant with HDMI™ 2.0 specifications 4K @ 60 Hz

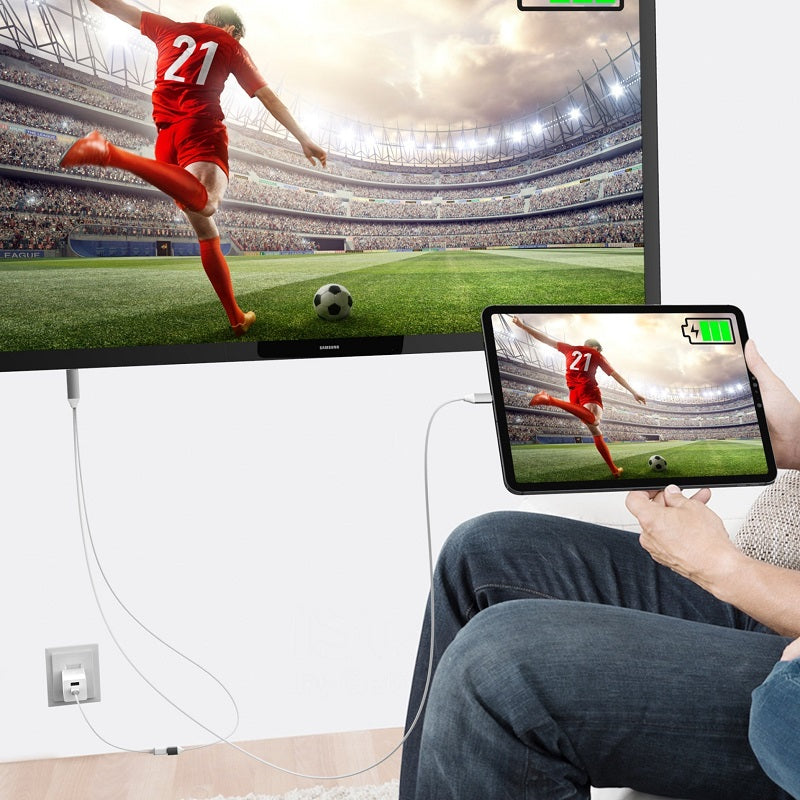

- Ideal accessory for laptops, tablets, and smartphones with a USB-C® port

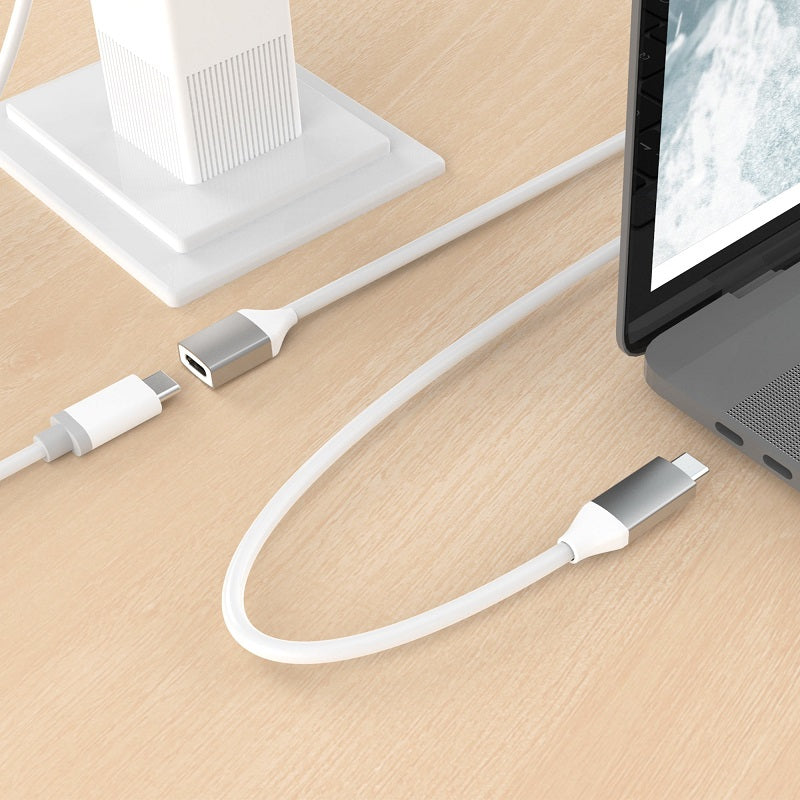

- Additional USB-C® port to connect a USB-C® PD charger giving you up to 100W of charging power

Cable Jacket Type: PVC
Cable Shield Type: Aluminum
Connector A:
1 - USB-C® Male
1 - USB-C® Female for Charging
Connector B: 1 - HDMI™ Male
Warranty: 1 Year Limited

Audio Channel: 2.1 via HDMI™
Displays Supported: 1
Max Data Transfer Rate: 18 Gbps
Max Display Refresh Rate: 60 Hz
Max Display Resolution: 3840 x 2160
Wide Screen Supported: Yes

Physical Specifications

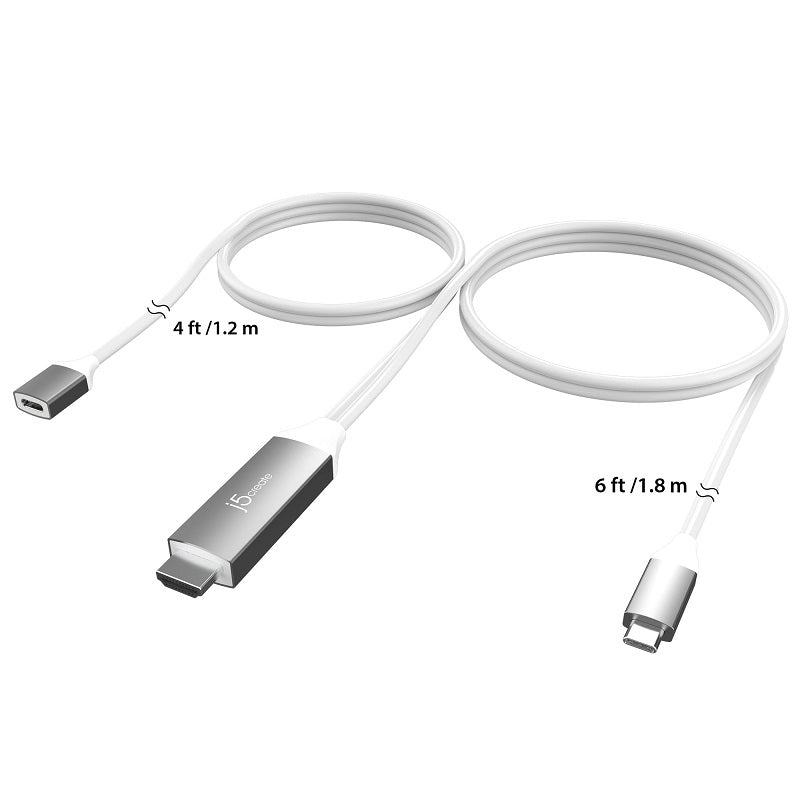

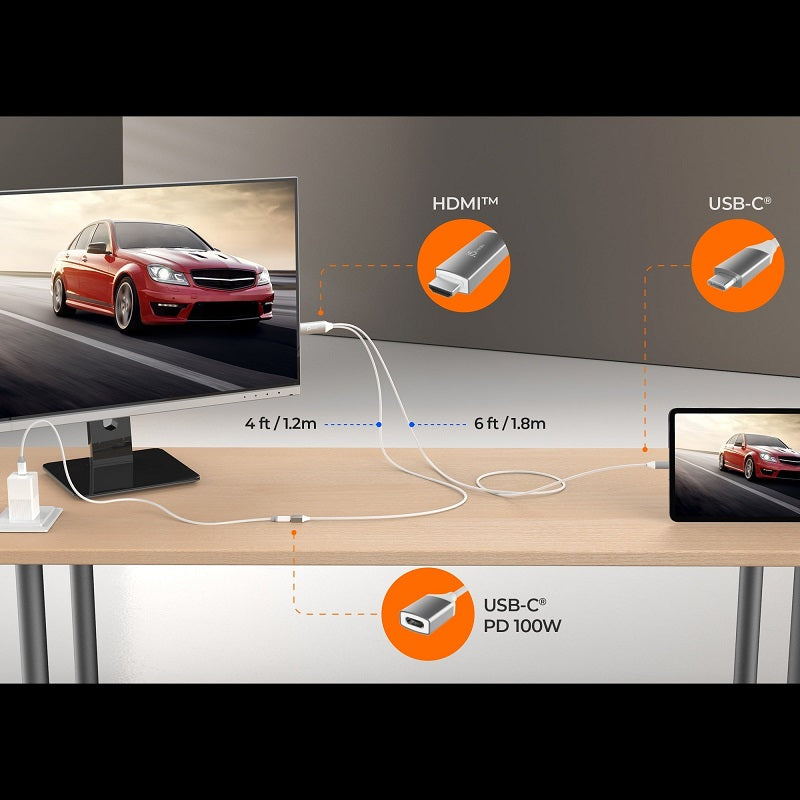

Cable Length:
- USB-C® cable: 6 ft. (180 cm)
- USB-C® female cable: 4 ft. (120 cm)
Color: Gray & White
Connector Type: N/A
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 113°F (0 to 45°C)
Product Depth: 0.45 In. (11.6 mm)
Product Height: 0.79 In. (20.2 mm)
Product Weight: 2.20 oz (62.5 g)
Product Width: 2.58 In. (65.6 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 160°F (-10 to 71°C)

Package Contents
1 - JCC155G USB-C® to 4K HDMI™ Cable with PD 100W Pass-Through
1 - Quick Installation Guide

System Requirements
- Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device
- DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 60 Hz resolution

Special Notes
- If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the USB-C™ power delivery port to ensure maximum performance.
