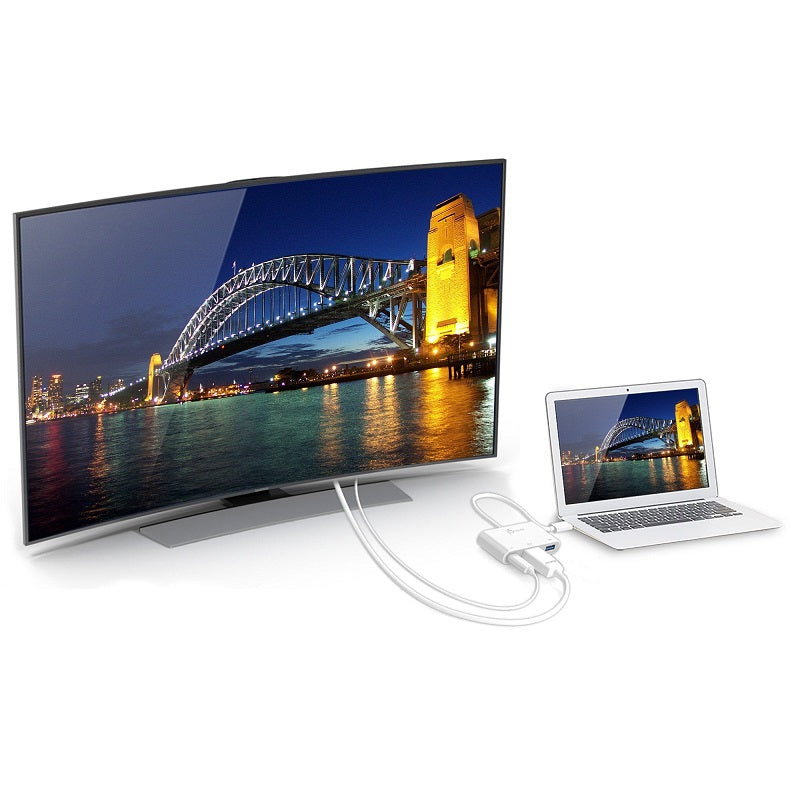

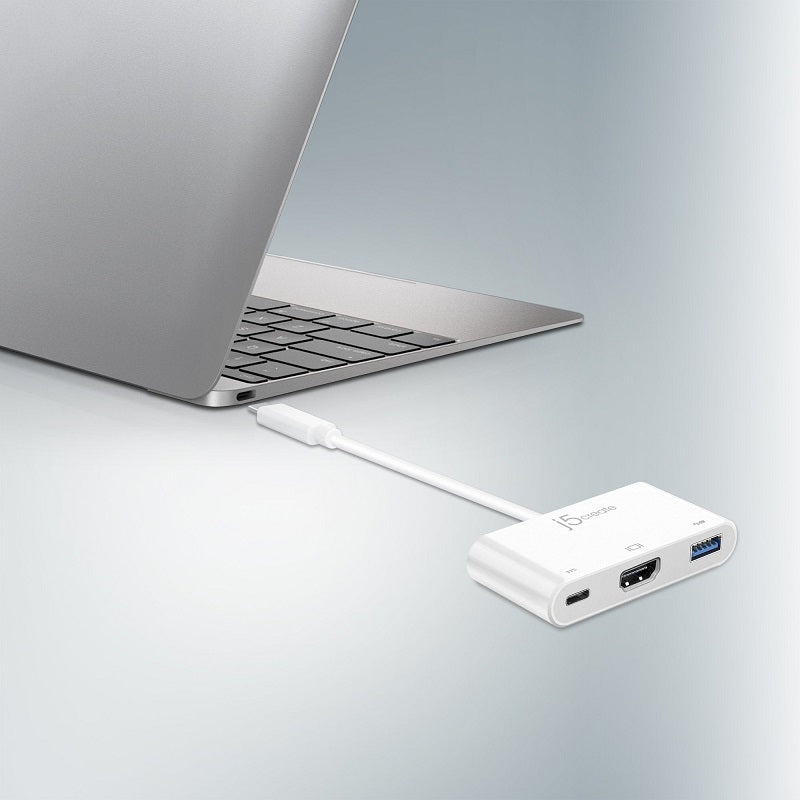

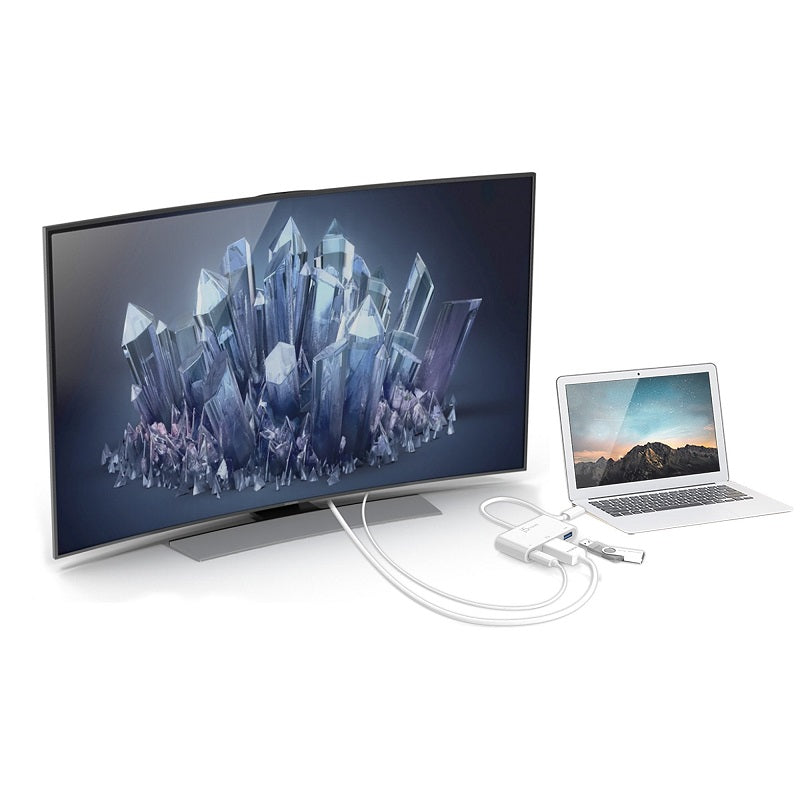

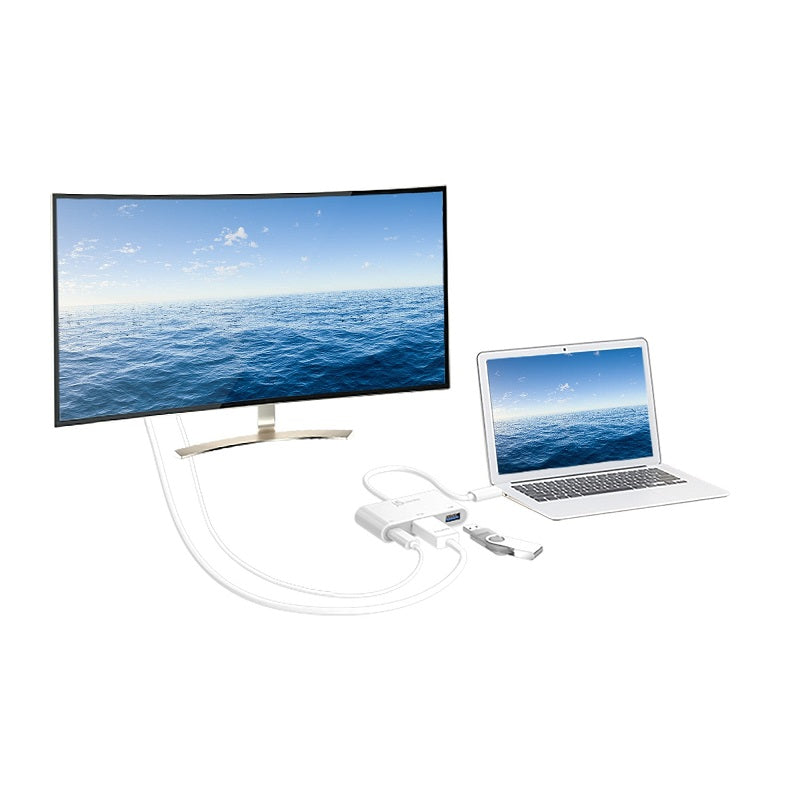

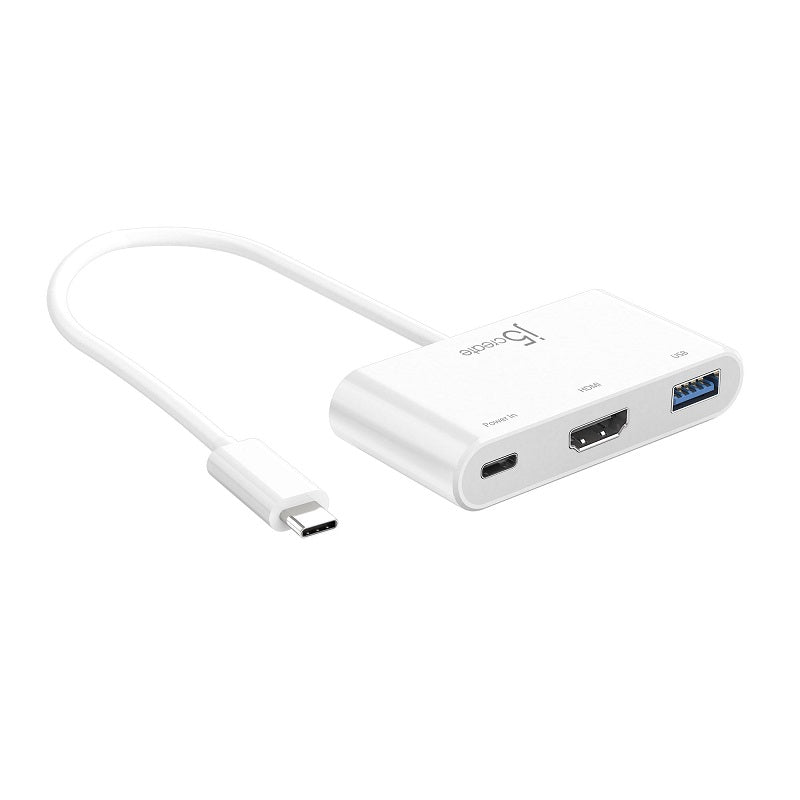

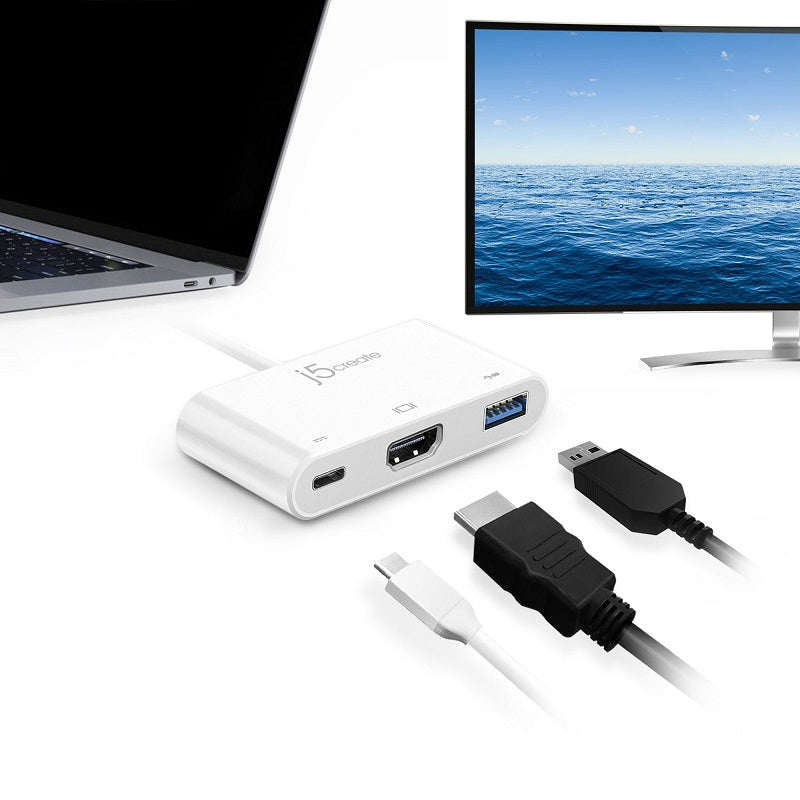

Add extra functionality to your laptop with the JCA379 USB-C® to HDMI™ & USB™ 3.0 with Power Delivery. This device allows you to add an additional USB™ 3.0, HDMI™ monitor, and USB-C® that can be charged through your USB-C® port. The USB™ 3.0 SuperSpeed port gives you data transfer rates up to 5 Gbps. Display Alt Mode for HDMI™ supports a resolution up to 4K @ 30 Hz with Primary, Extended, and Mirrored display modes. The JCA379 supports upstream charging and Power Delivery 2.0 to keep your connected laptop powered up while in use.
Features - Plug and play – No software or drivers required - USB™ 3.0 SuperSpeed - Data transfer rates up to 5 Gbps - Hot-swappable connection/disconnection without powering down - DisplayPort™ Alt Mode for HDMI™ - Supports up to 3840 x 2160 @ 30 Hz resolution

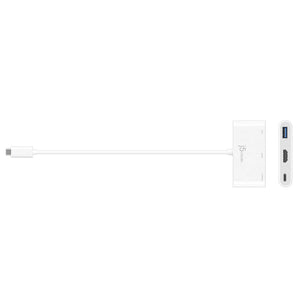

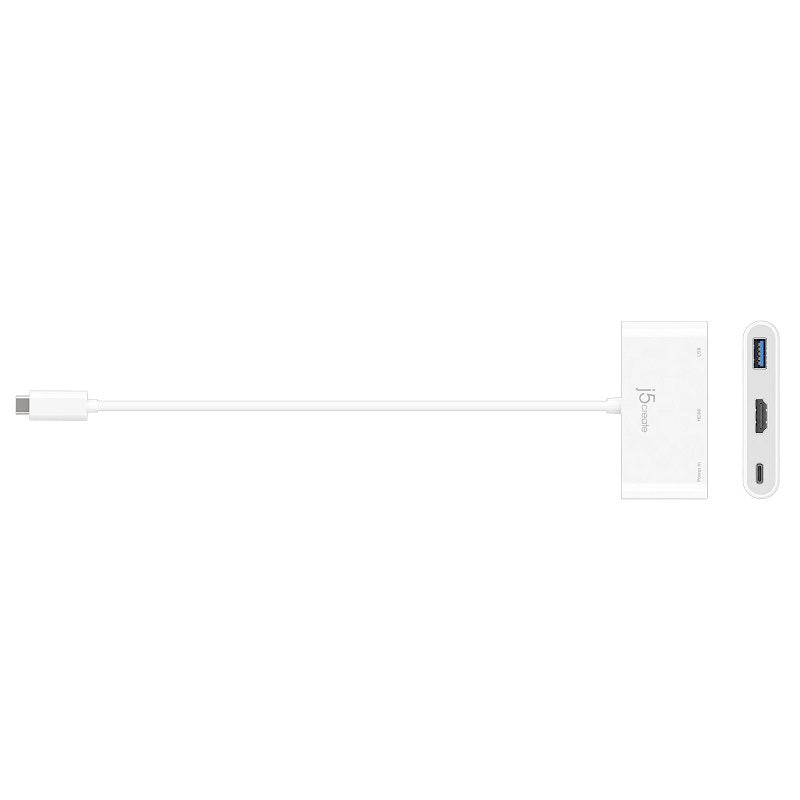

Specifications Hardware Audio Supported: Yes Host Connector: USB-C® Male Ports: 1 - USB-C® PD for upstream charging 1 - HDMI™ Output 1 - USB™ 3.0 Gen 1 Type-A 5 Gbps Power Source: Bus-powered or self-powered Usb Pass-Through: Yes Video Output: HDMI™ Warranty: 2 Year Limited
Performance Audio Channel: HDMI™ 2.1 Displays Supported: 1 Max Data Transfer Rate: 5Gbps Max Display Refresh Rate: 30 Hz Max Display Resolution: 3840 x 2160
Power Input Current: Up to 5A Input Voltage: Up to 20V Output Current: Up to 4.5A Output Voltage: Up to 20V Power Consumption: ≥ 350 mA Power Delivery: Up to 100W via USB-C®
Physical Specifications Cable Length: 7.87 in. (20 cm) Color: White Enclosure Type: ABS Plastic Operating Humidity: < 85% non-condensing Operating Temperature: 32 to 118°F (0 to 47°C) Product Depth: 0.59 in. (15.2 mm) Product Height: 2.96 in. (75.4 mm) Product Weight: 1.43 oz (40.8g) Product Width: 1.48 in. (37.8 mm) Storage Humidity: < 85% non-condensing Storage Temperature: 14 to 140°F (-10 to 65°C)
Package Contents 1 - JCA379 USB-C® to HDMI™ & USB™ 3.0 with Power Delivery 1 - Quick Installation Guide
Compatibility - Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your hardware for more information on your device - DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution.

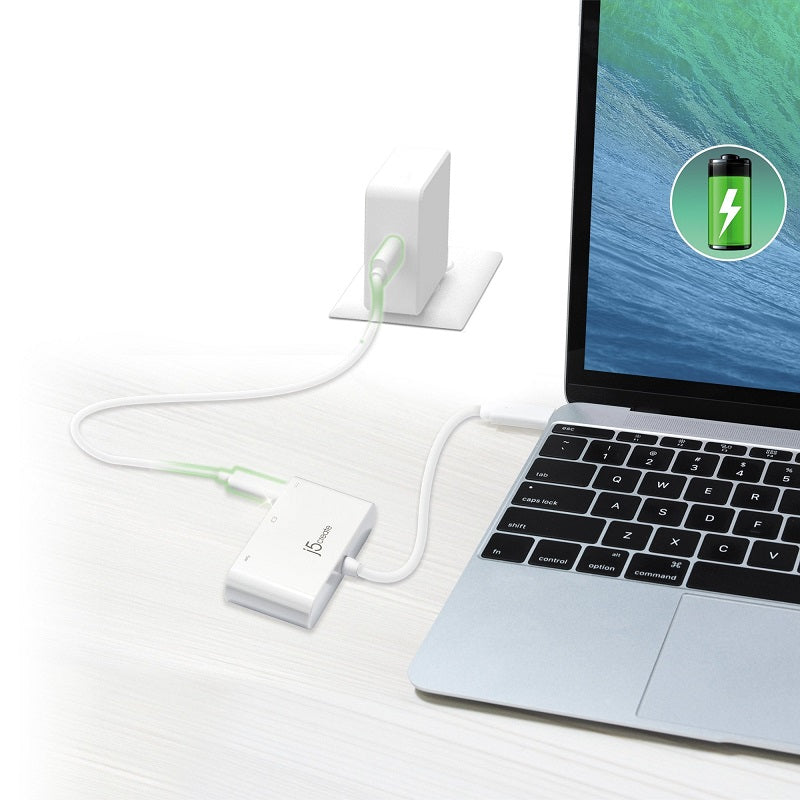

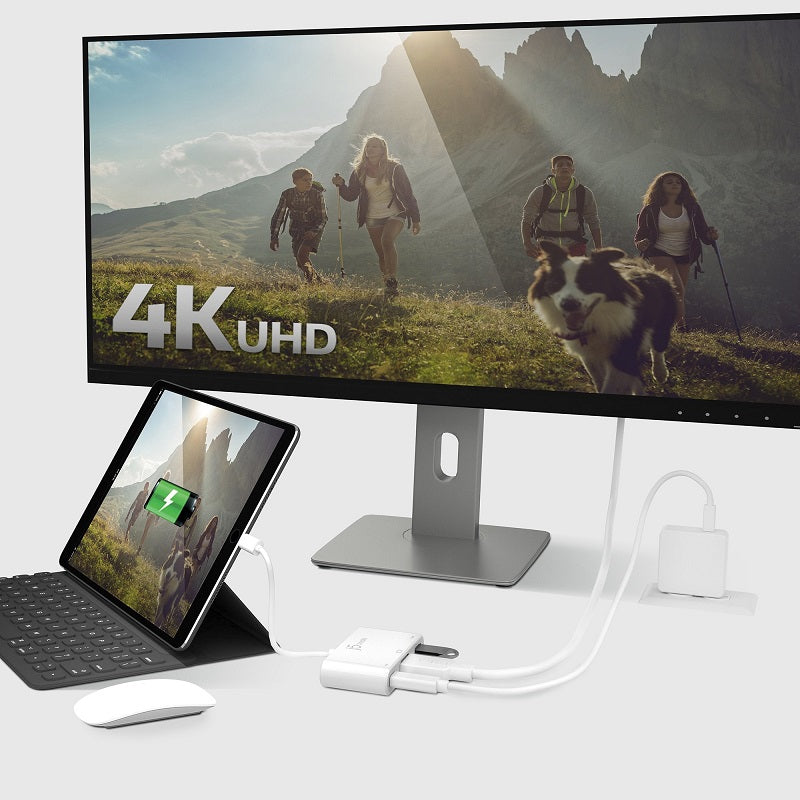

Special Notes - If you are using high-powered USB™ devices, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop - To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0 - Your mobile device might require more power than your charger allows when using the adapter and charging your device simultaneously. To ensure the JCA379 powers and charges your mobile device while in use, a higher wattage power adapter may be required.
