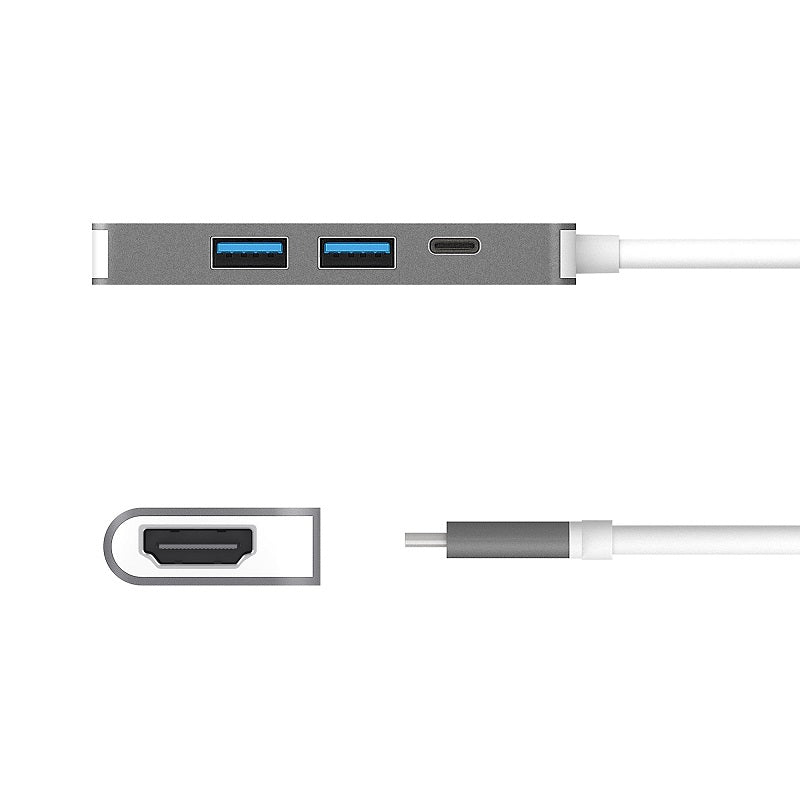

The JCD371 provides extra connectivity for your MacBook®, or other USB-C® laptop. This pocket-sized multi-adapter with two USB™ 3.0 Type-A ports allow you to connect an external keyboard, mouse, or USB™ flash drive. With up to 5Gbps of high-speed transmission, data transfer is quick and easy.
The HDMI™ port allows you to mirror or extend your screen and directly stream 4K UHD or Full HD 1080p video to an HDTV, monitor, or projector. The USB-C® power delivery port allows you to connect a USB-C® power adapter for charging your personal laptop.
Features - Supports HDMI™ resolutions up to 4K - USB™ 3.1 Type-A port x 2, transfer rates up to 5Gbps - USB-C® charging port supports upstream charging & power delivery 2.0 - Plug-and-play, no driver installation required
Specifications Hardware Audio Supported: Yes Host Connector: 1 - USB-C® Male Network Interface: N/A Ports: 2 - USB™ Type-A 3.1 Gen 2 1 - USB-C® Power Delivery 2.0 1 - 4K HDMI™ Power Source: Bus-powered or self-powered Video Output: 1 - HDMI™ Female Warranty: 2 Year Limited
Performance Audio Channel: 2.1 via HDMI™ Compatible Networks: N/A Displays Supported: 1 Max Data Transfer Rate: 5Gbps Max Display Refresh Rate: 30 Hz Max Display Resolution: 3840 x 2160 @ 30 Hz
Power Power Consumption: ≤ 500 mA Power Delivery: Up to 60W via USB-C®
Physical Specifications Cable Length: 3.94 in. (100 mm) Color: Space Grey Enclosure Type: Aluminum, ABS Plastic Operating Humidity: < 85% non-condensing Operating Temperature: 30 to 106°F (-1 to 41°C) Product Depth: 0.4 in. (10 mm) Product Height: 3.11 in. (79 mm) Product Weight: 1.13 oz (32g) Product Width: 0.9 in. (23 mm) Storage Humidity: < 85% non-condensing Storage Temperature: 0 to 155°F (-17 to 68°C)
Package Contents 1 - JCD371 USB-C® to HDMI™ & USB™ 3.1 2-Port with Power Delivery 1 - Quick Installation Guide (QIG)
Compatibility - Available DisplayPort™ Alt Mode over USB-C® port - Available USB™ Power Delivery over USB-C® to support upstream charging
Special Notes - A 4K-capable display is required for obtaining the 3840 x 2160 resolution - The adapter can connect to a USB™ 3.1 Gen 1 or USB™ 3.0 port that supports DisplayPort™ Alt mode but it will only provide up to 5Gbps transfer rates
