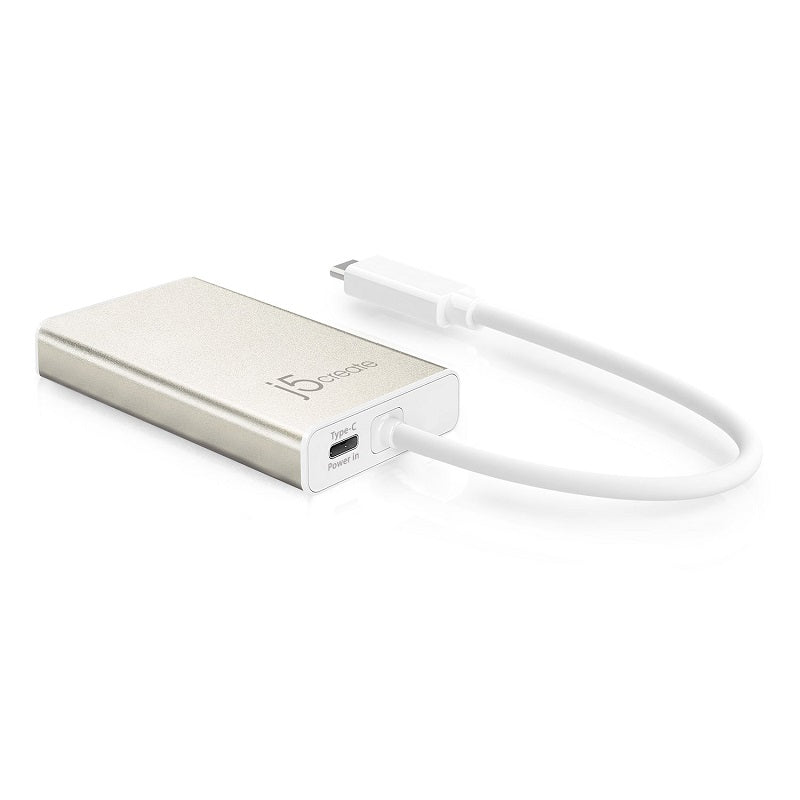

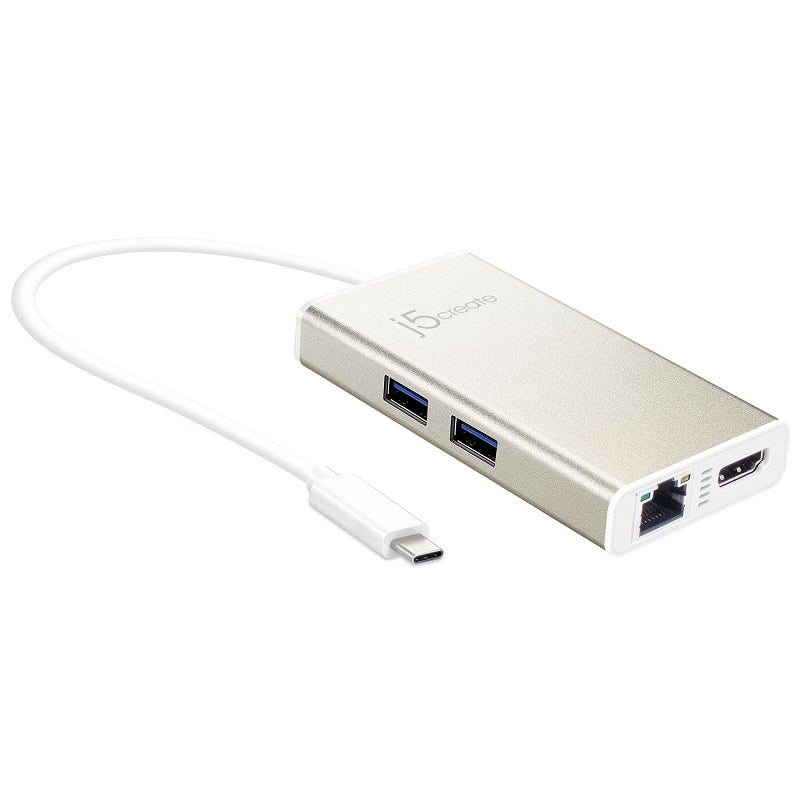

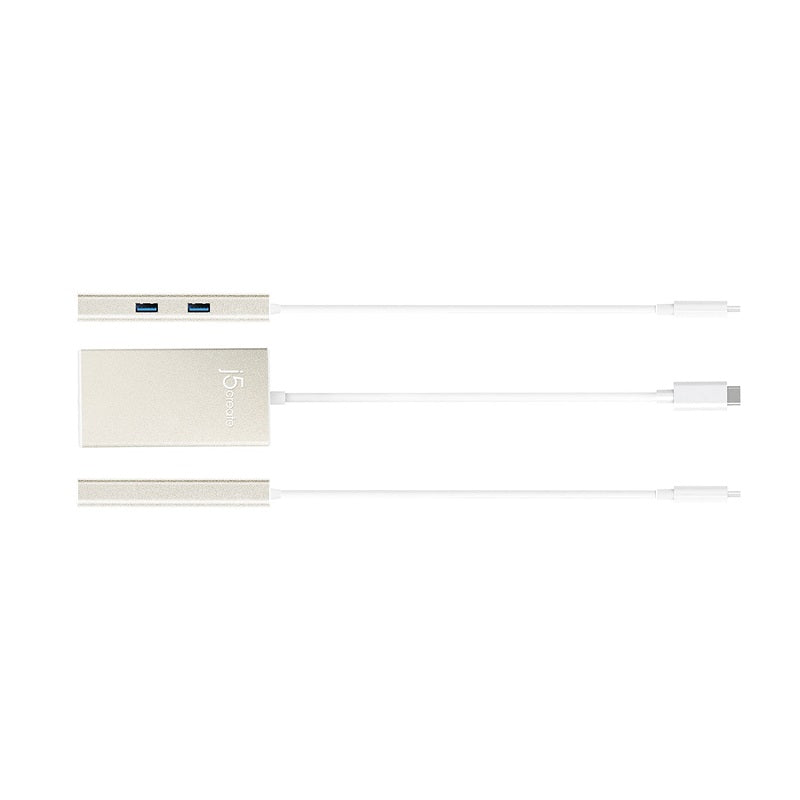

j5create USB-C Hub w/ Ethernet + HDMI + PD Pass-through

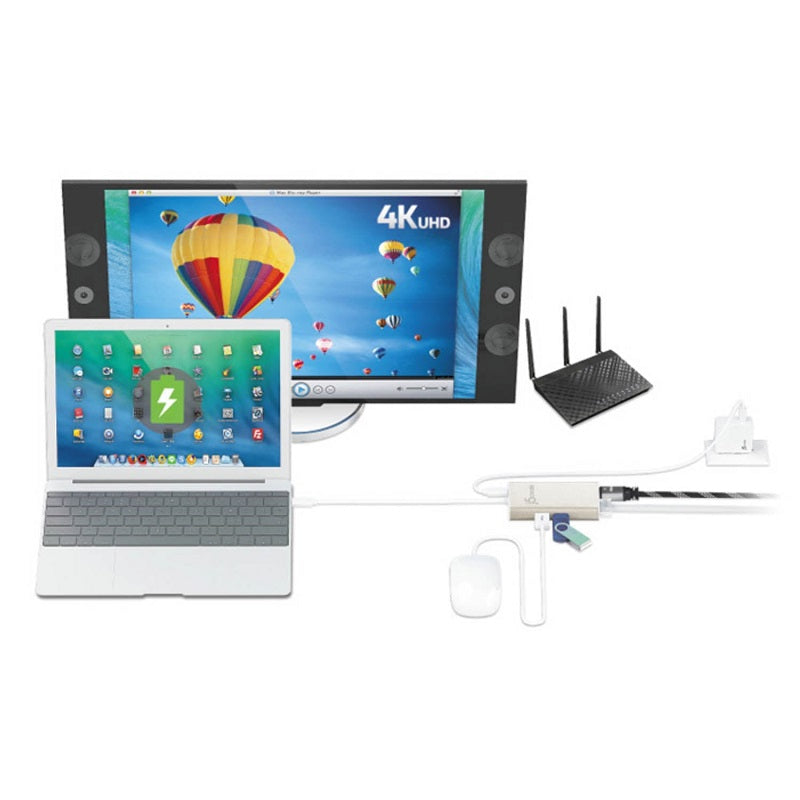

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 3.0, it supports upstream streaming ensuing your connected laptop powered up while in use.

- Supports HDMI™ resolutions up to 4K @ 30 Hz
- Reliable network connectivity via the Gigabit Ethernet port with LED indicators
- Power your laptop with up to 60W pass-through charging using this adapter and a USB-C® power adapter
- 2 x SuperSpeed USB™ 5 Gbps ports to connect additional peripherals transfer speed
- Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
- Compact and lightweight design for maximum portability

Audio Supported: Yes
Host Connector: 1 - USB-C® Male
Network Interface: RJ45 (Gigabit Ethernet)
2 - USB™ 3.0 Type-A
1 - RJ45 Gigabit Ethernet
1 - 4K HDMI™
1 - USB-C® for Power Delivery
Power Source: Bus-powered or self-powered
Video Output: 1 - HDMI™ Female
Warranty: 2 Year Limited

Audio Channel: 2.1 via HDMI™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: Yes
Max Data Transfer Rate: 5 Gbps
Max Display Refresh Rate:
- 60 Hz @ 1920 x 1080
- 30 Hz @ 3840 x 2160
Max Display Resolution: 3840 x 2160

Input Current: Up to 3A
Input Voltage: Up to 20V
Output Current: Up to 3A
Output Voltage: Up to 20V
Power Consumption: ≤ 450mA
Power Delivery: Up to 60W via USB-C®

Physical Specifications
Cable Length: 3.93 in. (100mm)
Color: Champagne Metallic
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 98°F (0 to 37°C)
Product Depth: 3.79 In. (96.5 mm)
Product Height: 0.59 In. (15 mm)
Product Weight: 2.43 oz (69 g)
Product Width: 1.98 In. (50.5 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 140°F (-10 to 65°C)

Package Contents
1 - JCA374 USB-C® Multi-Adapter
1 - Quick Installation Guide (QIG)

- Available USB-C® port that supports DisplayPort™ Alt Mode and USB™
Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your hardware for more information on your device
- DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30Hz resolution

Special Notes
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance.
- To ensure files copy completely, do not remove the USB-C® power adapter while copying files
