j5create USB-C Dual HDMI 4K/2K Mini Dock w/ Ethernet + PD

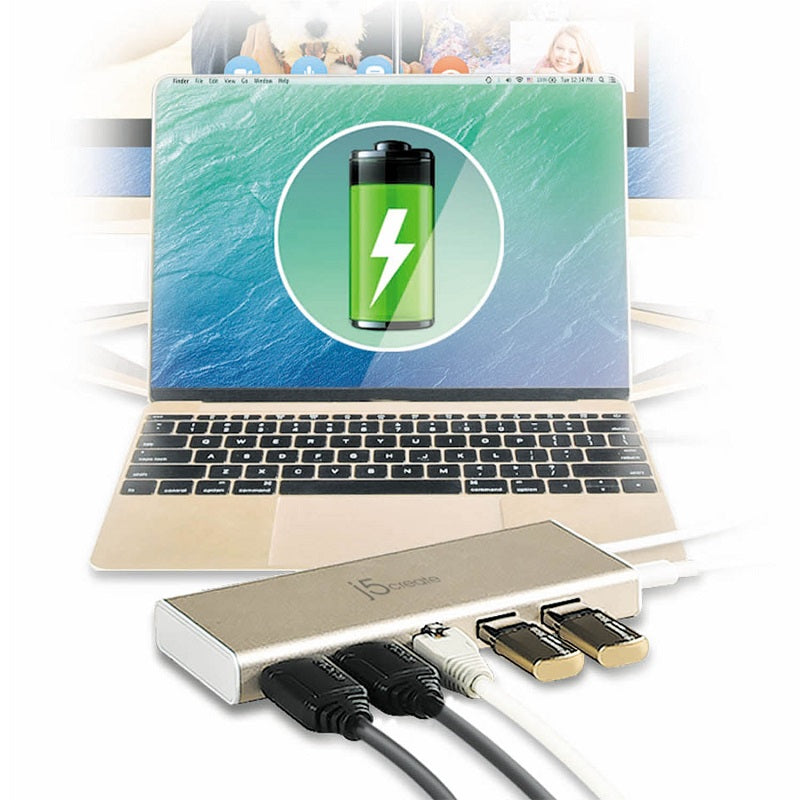

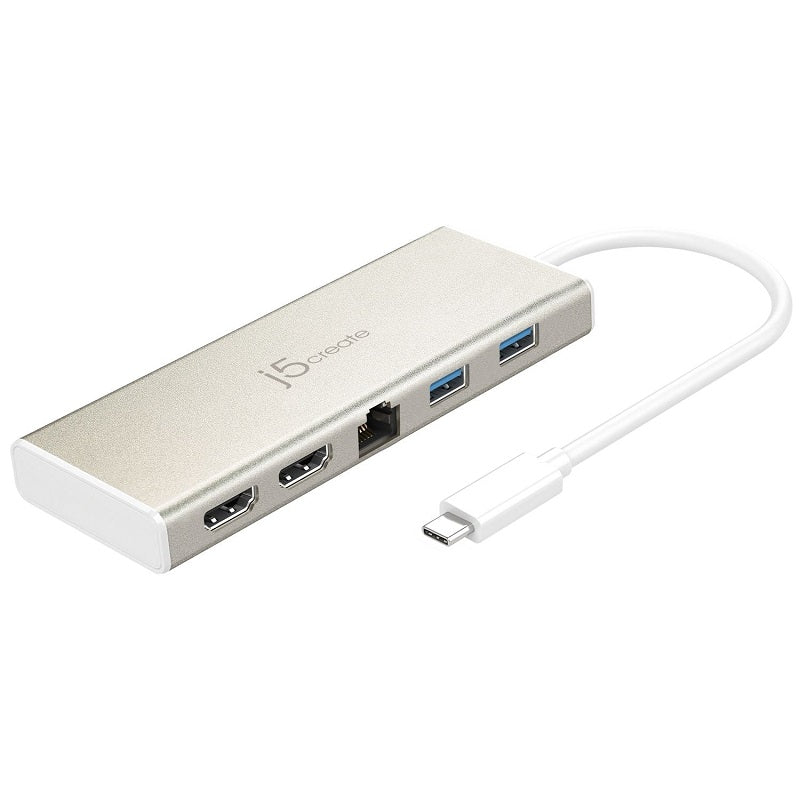

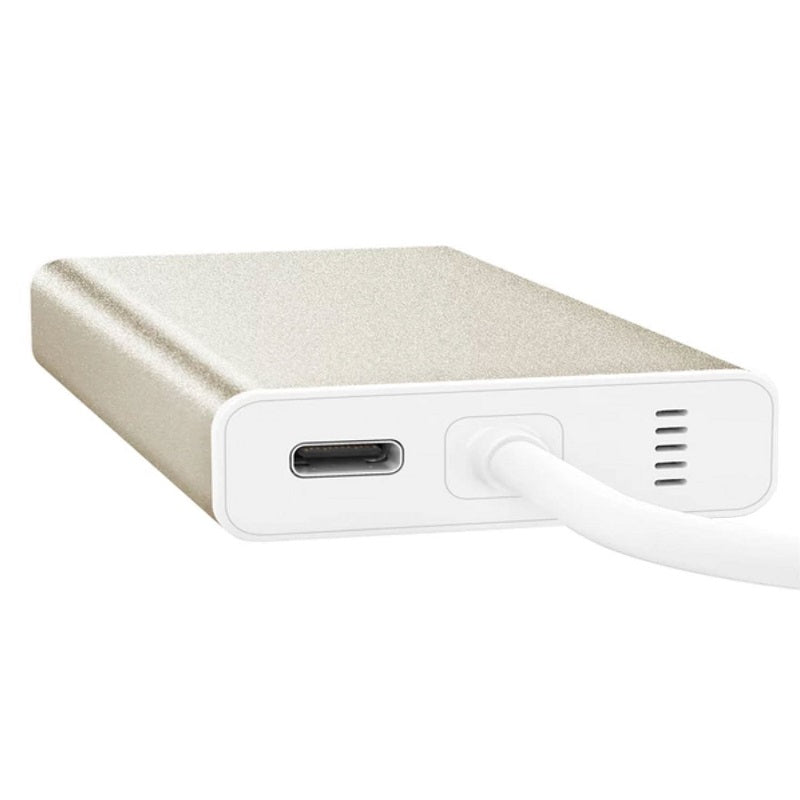

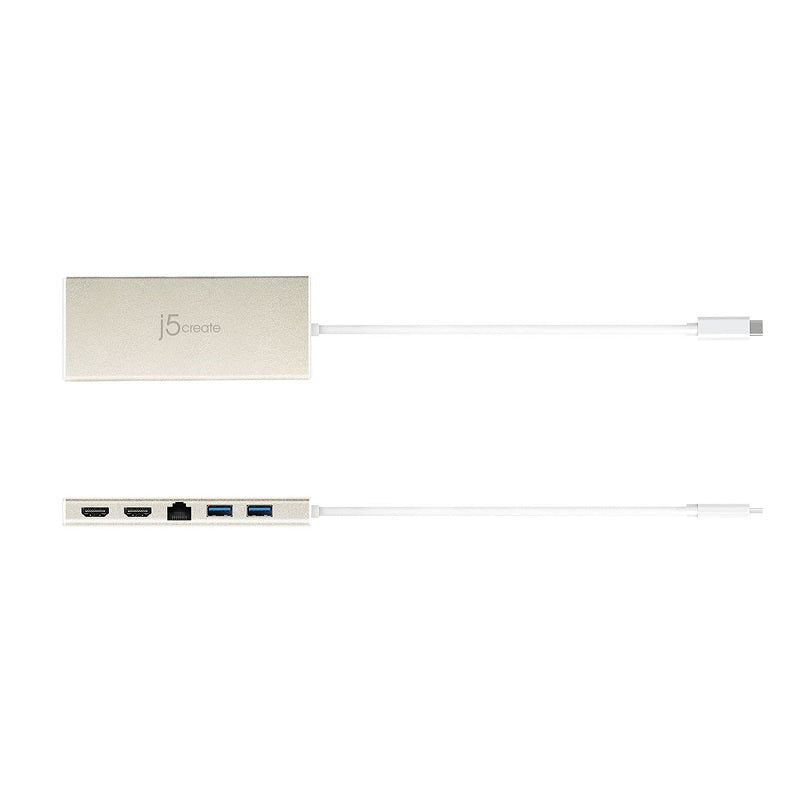

The USB-C® Dual HDMI™ Mini Dock provides extra connectivity for your USB-C® computer, featuring data transfer, power delivery and video displays. Easily add two additional USB™ computer peripherals, two HDMI™ monitors, and a Gigabit Ethernet connection through your USB-C® port. When connected to a power source, the USB-C® input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.

Features
- Easily add a 4K or two 2K displays via HDMI™
- USB-C™ power delivery 2.0 provides charging power to the connected devices
- Connect or charge your USB™ devices with 2 x USB™ ports
- SuperSpeed USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
- Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
- Reliable network connectivity via the Gigabit Ethernet port

Specifications
Hardware
Audio Supported: Yes
Host Connector: 1 - USB-C® Male
Network Interface: RJ45 (Gigabit Ethernet)
Ports:
1 - USB-C® Power Delivery 2.0
2 - USB™ Type-A 3.0
1 - RJ45 Gigabit Ethernet
1 - 4k HDMI™
1 - HDMI™
Power Source: Bus-powered or self-powered
Video Output: 2 - HDMI™ Female
Warranty: 2 Year Limited

Performance
Audio Channel: 2.1 via HDMI™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 2
Max Data Transfer Rate: 5 Gbps
Max Display Refresh Rate:
- 4K @ 30 Hz
- 2K / 1080p @ 60 Hz
Max Display Resolution:
*Dual Displays:
- 3840 x 2160 and 2048 x 1152 / 1920 x 1080
*Single Display:
- 3840 x 2160

Power
Input Current: 3A
Input Voltage: 20V
Output Current: 3A
Output Voltage: 20V
Power Consumption: ≤ 450mA
Power Delivery: Up to 60W via USB-C®

Physical Specifications
Cable Length: 7.8 in. (198.12mm)
Color: Champagne Metallic
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 98°F (0 to 37°C)
Product Depth: 0.6 In. (15 mm)
Product Height: 2.1 In. (54 mm)
Product Weight: 4.00 oz (113.5 g)
Product Width: 5.1 In. (130 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 140°F (-10 to 65°C)

Package Contents
1 - JCD381 USB-C® Dual HDMI™ Mini Dock
1 - Quick Installation Guide

Compatibility
System Requirements
- Windows® 10 or later

• macOS® 10.14 or later

- Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0. (USB™ 3.0 is recommended)
Please refer to the manufacturer of your hardware for more information on your device.
- For office applications / Web:

• CPU: Intel® Core™ i3 Dual Core 2.8 GHz
• RAM: 2 GB memory or higher

- For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback:

• CPU: Intel® Core™ i5 Quad Core
• RAM: 4 GB memory or higher

For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback:

• CPU: Intel® Core™ i7 Quad Core
• RAM: 8 GB memory or higher

Special Notes
- Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
- The adapter can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
- If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port to ensure maximum performance. When using the USB-C™ power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
