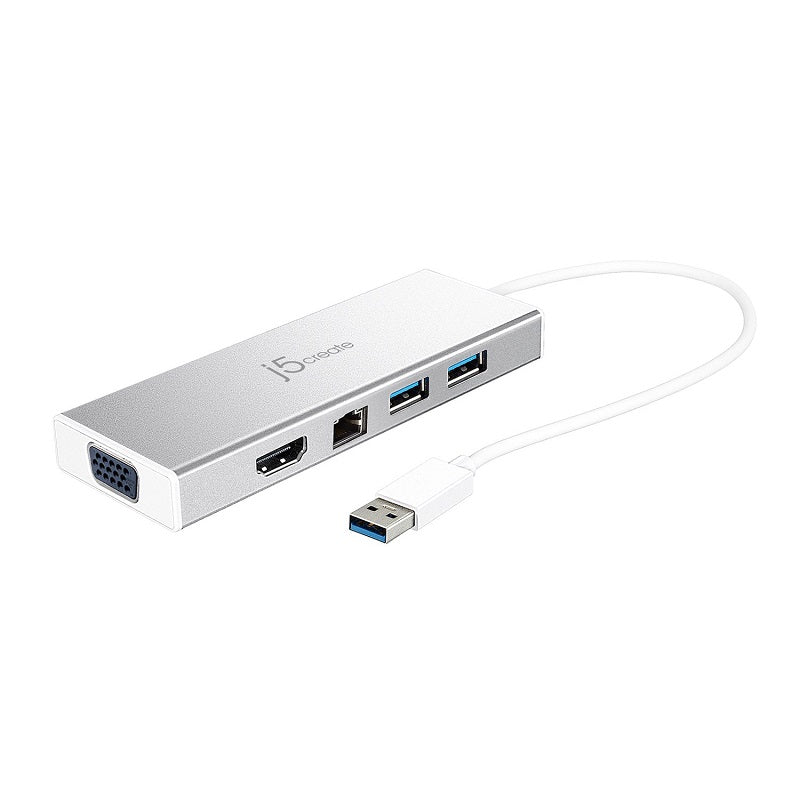

This dual-monitor USB™ 3.0 mini docking station features two USB™ 3.0 Type-A ports for connecting extra peripherals, an HDMI™ & VGA output port, providing up to 2048 x 1152 resolutions, as well as an integrated RJ45 Ether port for a reliable wired network connection.
With its space-saving, travel-friendly design, you can quickly set up a workstation while on the go!
Features- Create a dual-monitor setup with HDMI™ and VGA outputs and together with your laptop display, you can have a maximum of 3 displays
- Compatible with USB™-enabled macOS® & Windows® laptops
- Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
- Compact and lightweight design for maximum portability
- 4 display modes: Mirror, Extended, Primary, or Rotation*
- USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
- Reliable network connectivity via the Gigabit Ethernet port
SpecificationsHardwareAudio Supported: Yes
Host Connector: 1 - USB™ Type-A 3.0 Male
Network Interface: RJ45 (Gigabit Ethernet)

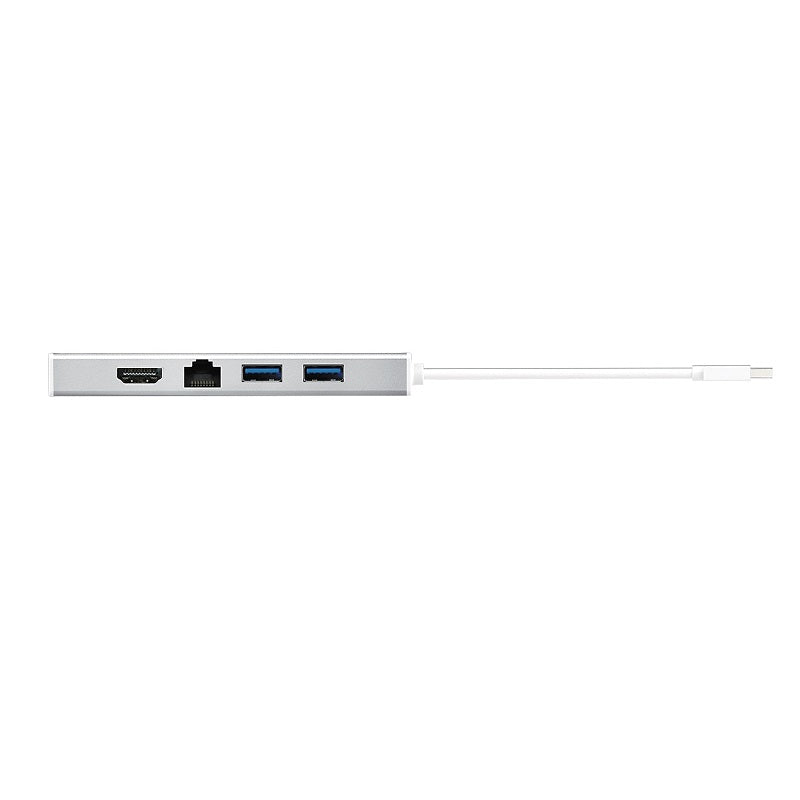

Ports:
2 - USB™ 3.1 Gen 1 Type-A
1 - RJ45 Gigabit Ethernet
1 - HDMI™
1 - VGA

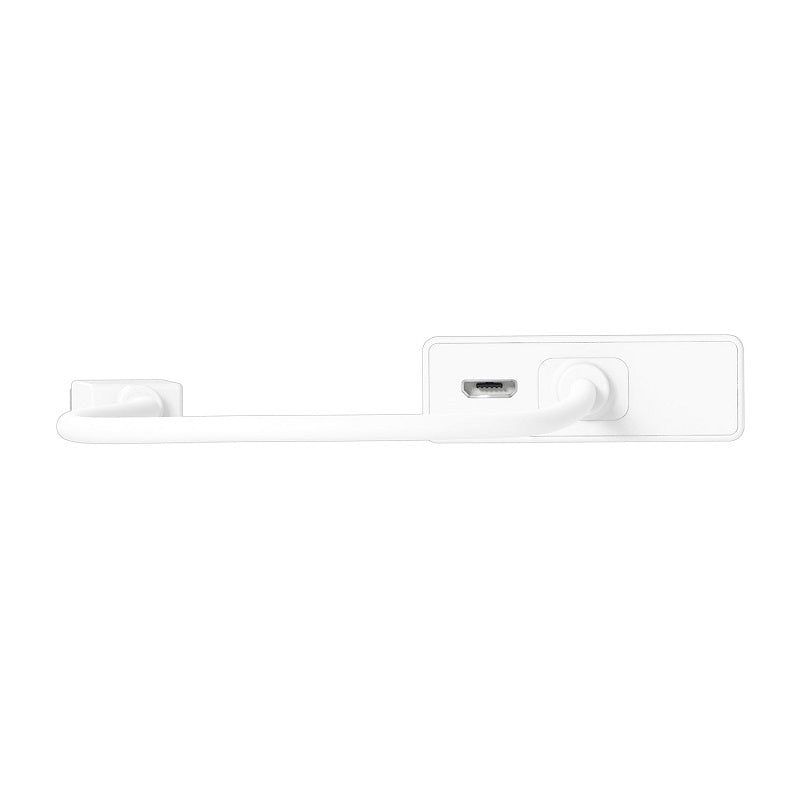

1 - USB™ Micro-B
Power Source: Bus-powered and self-powered
Video Output:
1 - HDMI™ Female
1 - VGA Female
Warranty: 2 Year Limited
PerformanceAudio Channel: 2.1 via HDMI™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 2
Max Data Transfer Rate: 5 Gbps
Max Display Refresh Rate: 60 Hz
Max Display Resolution: 2048 x 1152
PowerPower Consumption: ≤ 450 mA
Power Delivery: No
Physical SpecificationsCable Length: 7.87 in. (200 mm)
Color: Black or Silver
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 47°C)
Product Depth: 1.69 in. (42.8 mm)
Product Height: 0.56 in. (14.15 mm)
Product Weight: 2.91 oz (82.6g)
Product Width: 4.71 in. (119.6 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)
Package ContentsJUD380 USB™ 3.0 Mini Dock
1 - Quick Installation Guide
CompatibilitySystem RequirementsMicrosoft® Windows® 7 or later (32-bit or 64-bit)
- macOS® 10.8 – 10.13.3
- macOS® 10.14 or later
Available USB™ 3.0 port
For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i5 Quad Core or AMD™ equivalent
- RAM: 4 GB memory or higher
- GPU: Intel ® HD Graphics 5000 or AMD™ equivalent
For two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i7 Quad Core or AMD™ equivalent
- RAM: 8 GB memory or higher
- GPU: Intel ® HD Graphics 620 or AMD™ equivalent
Special Notes- Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
- Video playback for Windows® users
- ‘Windows® Media Player’ is recommended for Windows® 8.1/8/7 users
- ‘Movies & TV’ is recommended for Windows® 10 users
- Gigabit Ethernet requires driver installation on macOS®
- The micro USB™ Power In port is optional, but it is recommended when using with high-powered USB™ devices or with multiple peripherals at once.
- macOS® 10.13.6 is limited to supporting only one additional display and your MacBook® must support AirPlay®
- Rotation mode is supported on Windows® only
- To ensure that your device is equipped with the most current driver, please visit our website at j5create.com and install the latest driver for this model
