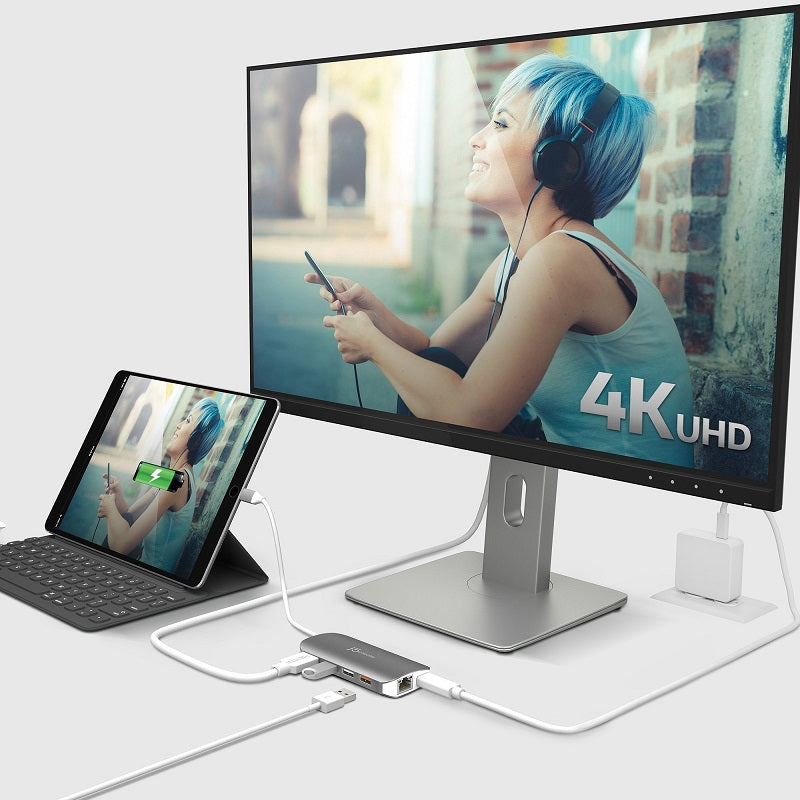

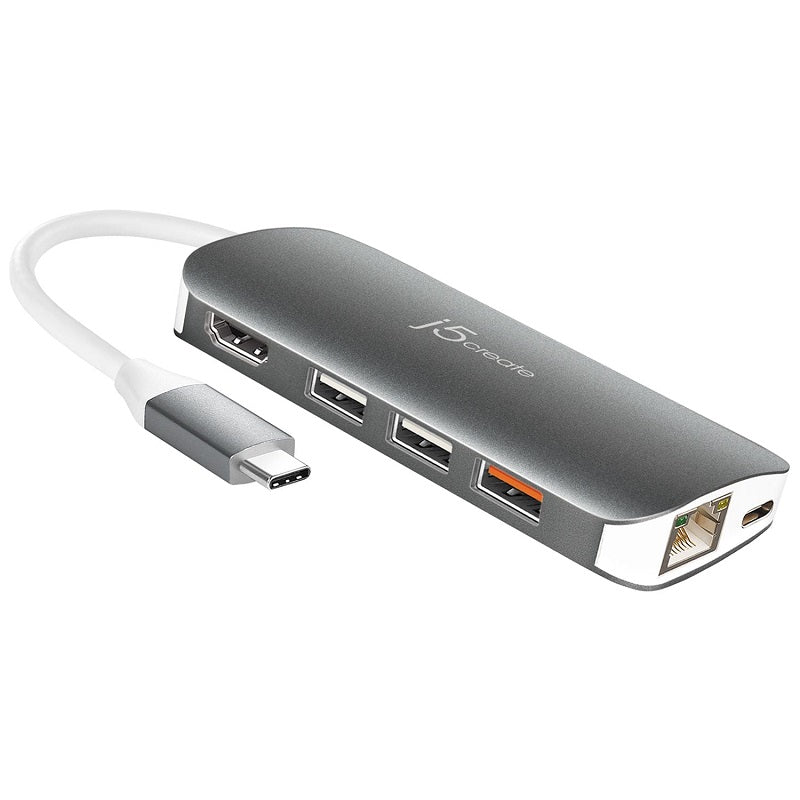

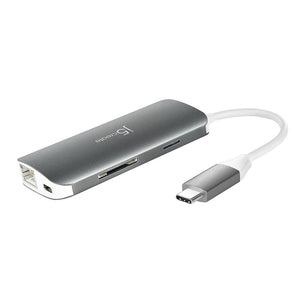

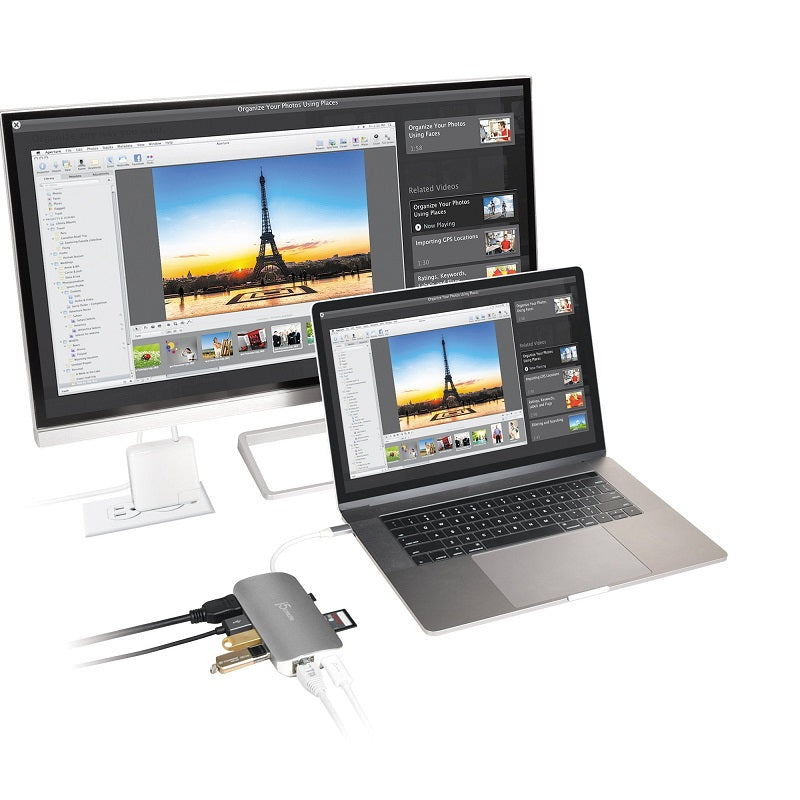

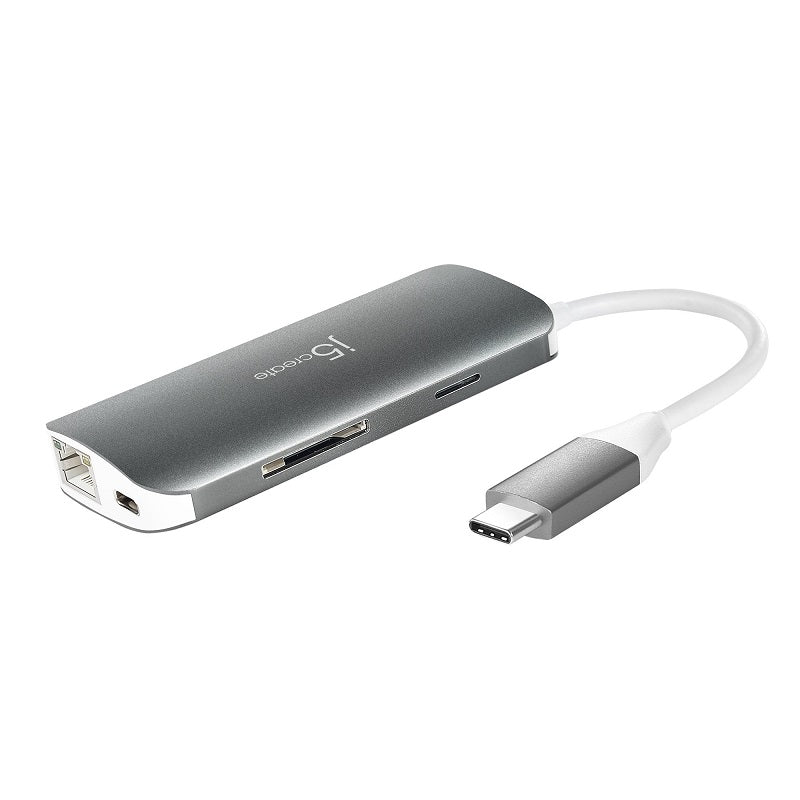

This pocket-sized multi-adapter provides all the ports you need for maximum productivity. It has 9 functions in 1 sleek adapter. It allows you to connect your laptop to a 4K monitor. It also connects to an ultrawide monitor. The USB-C™ multi-adapter gives you 2 USB™ Type-A ports for additional peripherals and 1 USB™ Type-A port with BC 1.2 to fast-charge your mobile device.

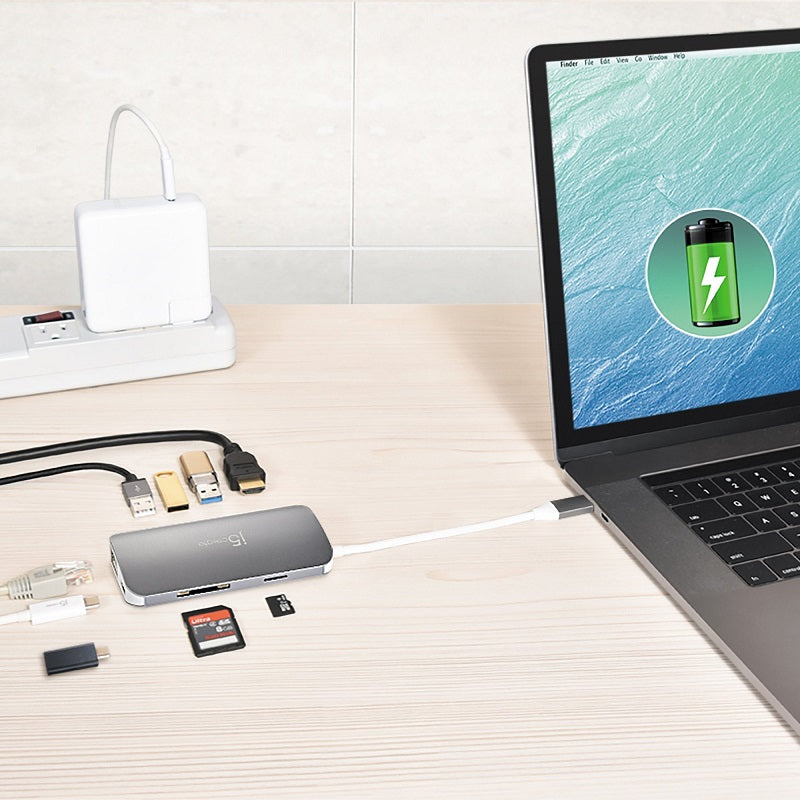

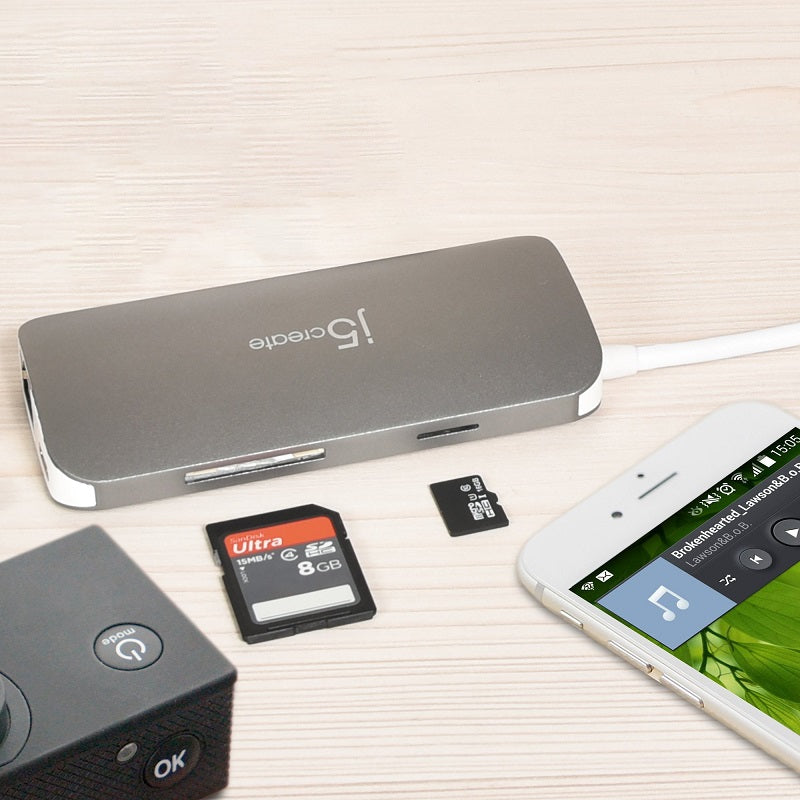

With USB-C® Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C® power adapter. It also provides direct access to a wired network and to your SD™ & microSD™ memory cards.
The JCD383 is perfect for small workspaces, home offices and for on-the-go!

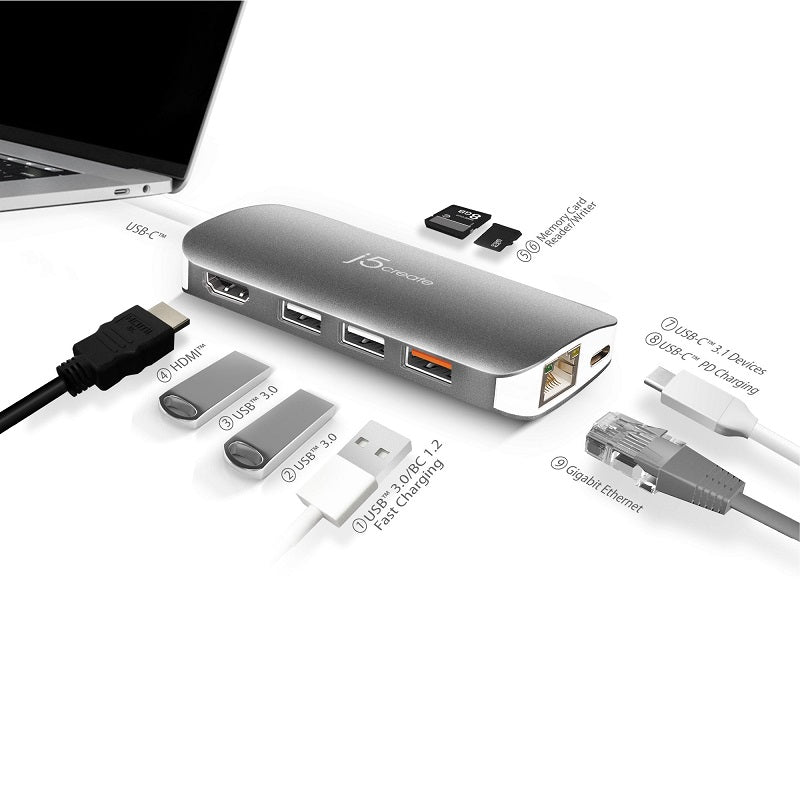

Features - 8 ports with 9 functions - USB-C™ power delivery 3.0 provides charging power to the connected devices as well as data transfer - Easily add a 4K HDMI™ video output - Reliable network connectivity via the Gigabit Ethernet port 2 - USB™ Type-A with BC 1.2 to fast-charge your mobile devices - USB™ 3.1 Gen 1 provides up to 5 Gbps transfer speed, which is 10x faster than USB™ 2.0 - Direct access to SD™ & microSD™ memory cards for data storage and transfer

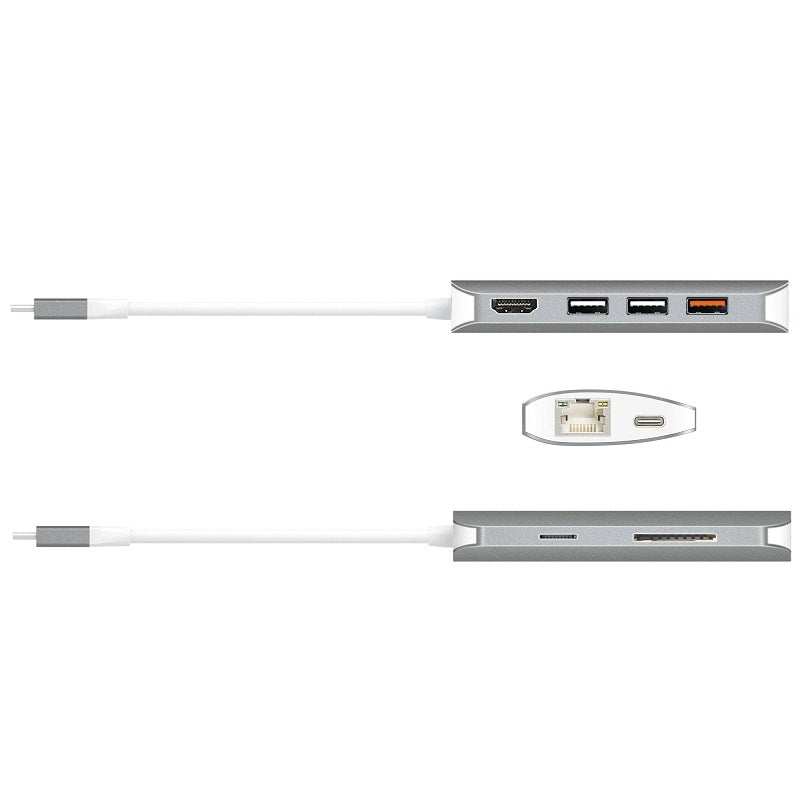

Specifications Hardware Audio Supported: Yes Host Connector: 1 - USB-C® Male Network Interface: RJ45 (Gigabit Ethernet) Ports: 1 - USB-C™ 3.0 (upstream & downstream charging, power delivery 3.0 and data transfer) 2 - USB™ Type-A 3.1 Gen 1 1 - USB™ Type-A 3.1 Gen 1 with BC 1.2 1 - SD™ & microSD™ 1 - 4K HDMI™ 1 - RJ45 Gigabit Ethernet Power Source: Bus-powered or self-powered Video Output: 1 - HDMI™ Female Warranty: 2 Year Limited
Performance Audio Channel: 2.1 via HDMI™ Compatible Networks: 10/100/1000 Base-T, auto-negotiating Displays Supported: 1 Max Data Transfer Rate: 5 Gbps Max Display Refresh Rate: 30 Hz Max Display Resolution: 3840 x 2160
Power Input Current: Up to 5A Input Voltage: Up to 20V Output Current: Up to 4.25A Output Voltage: Up to 20V Power Consumption: ≤ 500 mA Power Delivery: 100W
Physical Specifications Cable Length: 5.4 in. (137 mm) Color: Champagne Silver Enclosure Type: Aluminum Operating Humidity: < 85% non-condensing Operating Temperature: 32 to 118°F (0 to 48°C) Product Depth: 0.65 in. (16.5 mm) Product Height: 4.13 in. (105 mm) Product Weight: 2.75 oz (78g) Product Width: 1.97 in. (50 mm) Storage Humidity: < 85% non-condensing Storage Temperature: 14 to 149°F (-10 to 65°C)
Compatibility - Available USB-C™ port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 or 3.0. Please refer to the manufacturer of your hardware for more information on your device.
Special Notes - The adapter can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device - A 4K-capable display is required for obtaining the 3840 x 2160 resolution - If you are using a high-powered USB™ device, attach the USB-C™ power adapter to the power delivery port to ensure maximum performance. When using your USB-C™ power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop - To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0 - The device may become warm to moderately hot while transferring bulk data or while a USB-C™ power supply is plugged in
