The JCD382 ULTRADRIVE MINIDOCK™ can be used with the MacBook Pro® 13"/15" 2016/2017/2018/2019 and MacBook Air® 2018/2019. The dock gives you the ability to keep a Thunderbolt™ 3 port and add several standard connections. The connections include, USB-C™ 3.1 Gen 1, 4K HDMI™, USB™ 3.1 Gen 1 Type-A x2 and a USB™ 3.0 microSD™ and SD™ card reader/writer through the two Thunderbolt™ 3 male connectors on the other side of the dock.
Thunderbolt™ 3 uses the USB-C™ connector to deliver faster speeds (40 Gbps), more pixels (two 4K) and higher power (up to 100W) via more supported protocols (Thunderbolt™, USB™, DisplayPort™ and PCIe).
Features - Plug-and-play, no driver installation is required - USB-C® supports Thunderbolt™ 3 technology with up data transfer rates up to 40 Gbps - USB™ 3.0 SuperSpeed with data transfer rates up to 5 Gbps - USB™ SD™/microSD™ slots for an external memory card up to 2 TB - Supports USB-C® Power Delivery pass-through up to 100W - Supports a Thunderbolt™ 3 display up to 5K @ 60 Hz or dual 4K @ 60 Hz - Supports HDMI™ resolution up to 4K @ 30 Hz

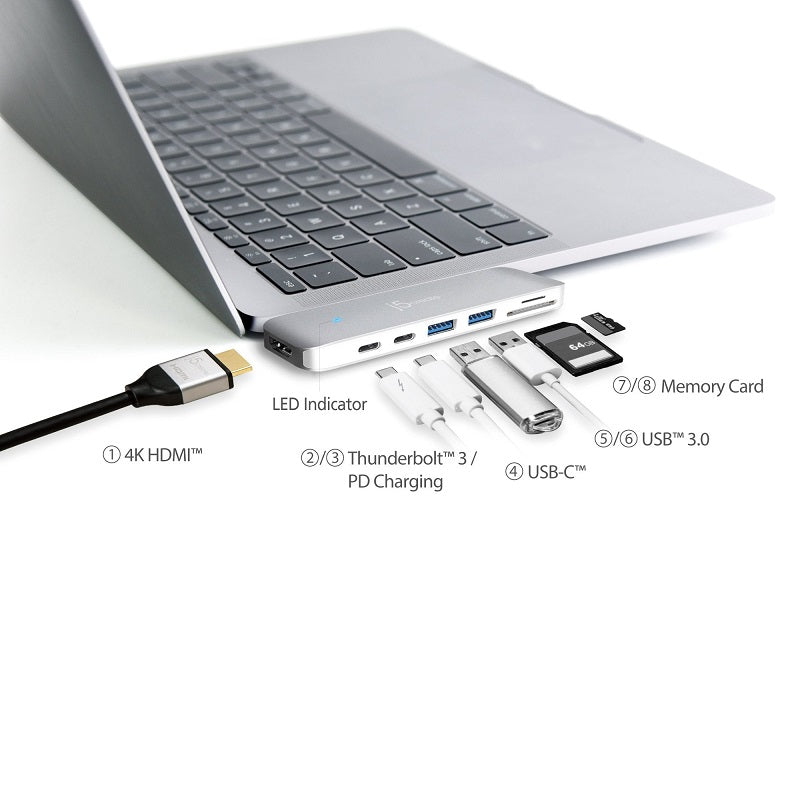

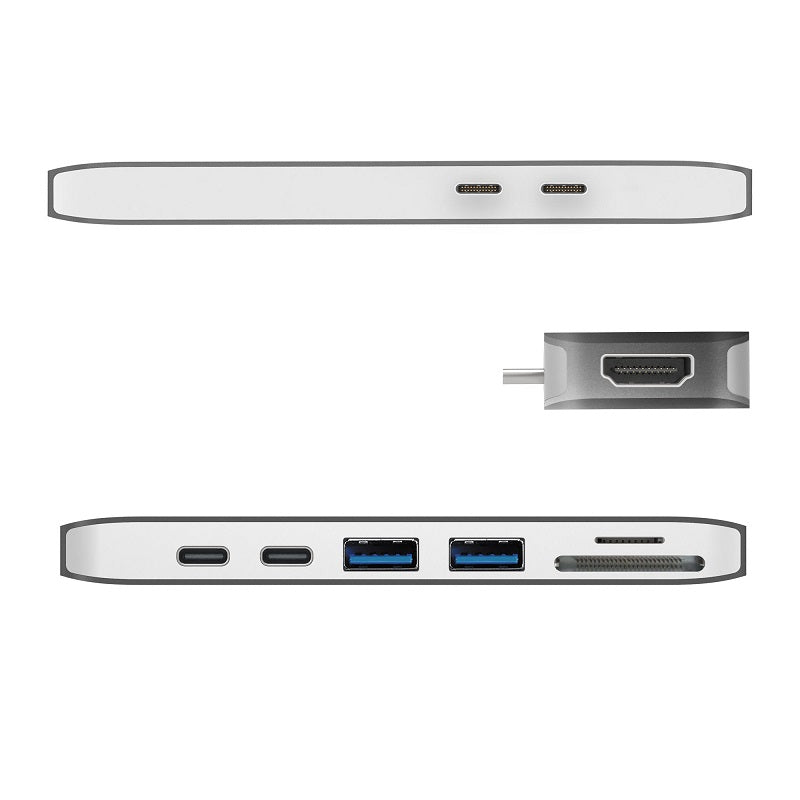

Specifications Hardware Audio Supported: Yes – via HDMI™ or Thunderbolt™ 3 Host Connector: 2 - USB-C® Male Network Interface: N/A Ports: 1 – Thunderbolt™ 3 1 – USB-C® 3.1 Gen 1 1 – 4K HDMI™ 2 – USB™ 3.1 Gen 1 Type-A 1 – SD™ 1 – MicroSD™ Power Source: Bus-powered Video Output: 1 – HDMI™ Female 1 – Thunderbolt™ 3 Warranty: 2 Year Limited
Performance Audio Channel: 2.1 via HDMI™ Displays Supported: 3 (2 via Thunderbolt™3 , HDMI™) Max Data Transfer Rate: - 5 Gbps via USB-C® port - 5 Gpbs via USB™ 3.1 Gen 1 Type-A ports Max Display Refresh Rate: - 60 Hz - 40 Gbps via Thunderbolt™ 3 port Max Display Resolution: - Dual Displays: 3840 x 2160 (4k) - Single Display: 3840 x 2160 (4k)
Power Input Current: 5A Input Voltage: 20V Output Current: 5A Output Voltage: 20V Power Consumption: ≤500mA Power Delivery: 100W
Physical Specifications Color: Silver, White Enclosure Type: Aluminum Operating Humidity: < 85% non-condensing Operating Temperature: 32 to 104°F (0 to 40°C) Product Depth: 0.01 in (0.47mm) Product Height: 1.25 in (32mm) Product Weight: 1.97 oz (56g) Product Width: 4.72 in (120mm) Storage Humidity: < 85% non-condensing Storage Temperature: 14 to 149°F (-10 to 65°C)
Package Contents 1 - JCD382 ULTRADRIVEMINI™ Dock for MacBook® Quick Installation Guide (QIG)
Compatibility System Requirements - USB-C® MacBook Pro® 13"/15" 2016 & later and MacBook Air® 2018 & later
Special Notes - Thunderbolt™ 3 port is up to 5K or 2x 4K @ 60 Hz Video, up to 40 Gbps data speed, max 100W Power Delivery - USB-C™ port supports 5Gbps data speed, but does not support upstream power delivery
