j5create ScreenCast USB-C Wireless Display HDMI Extender

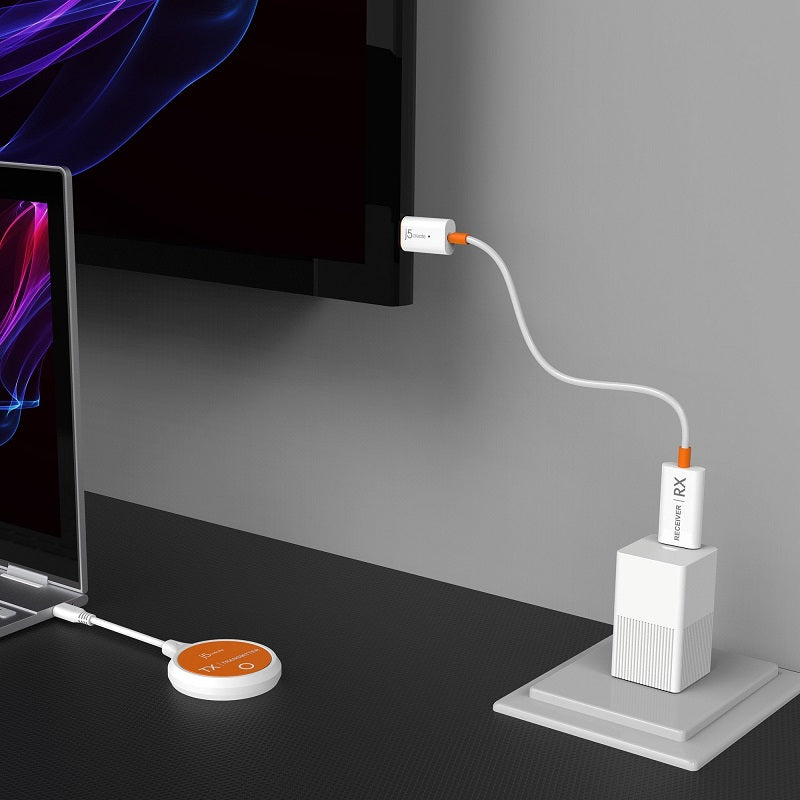

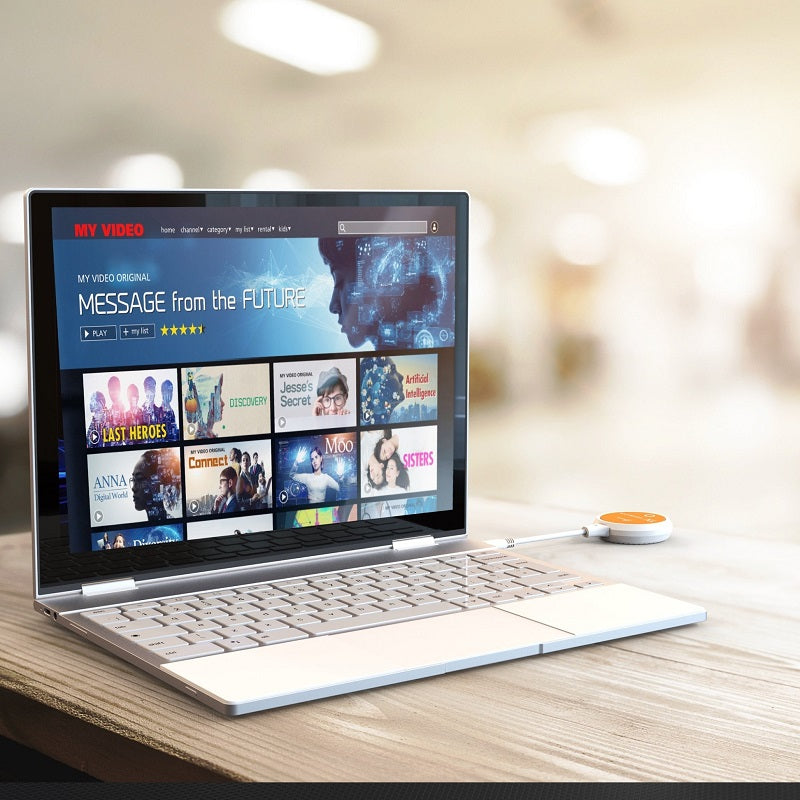

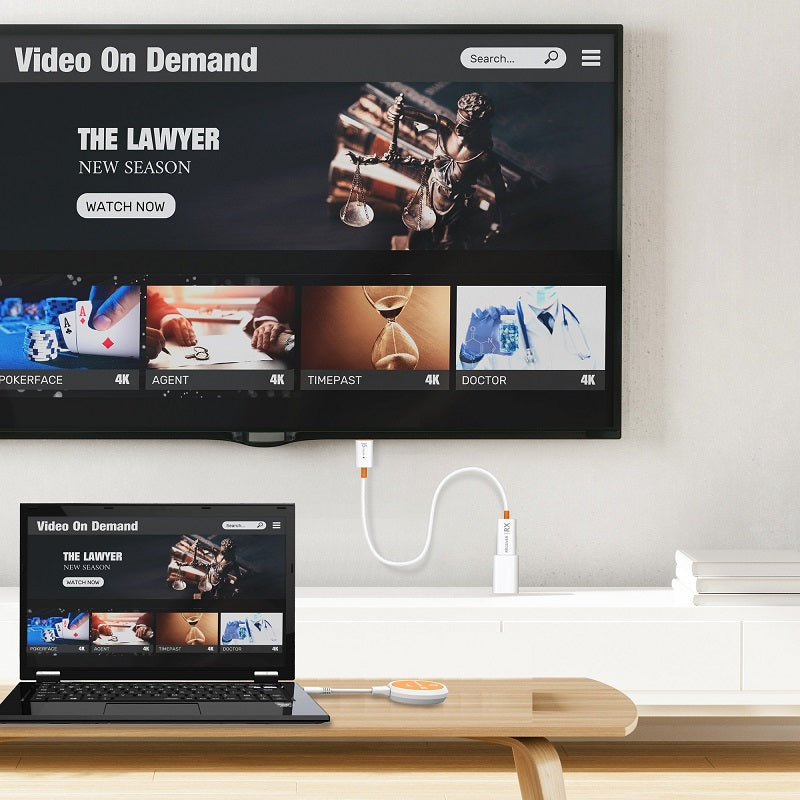

Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.

Features
- Wirelessly cast full HD content from your mobile device to a larger TV or display
- With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon Prime Video™, Hulu™, DISNEY+™, and more
- Supports 1080p HD video
- Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection and smooth streaming experience
- Includes an USB™ Type-A extension cable for added convenience
- Compact design is ideal for home, office, school, or on-the-go
- Supports multiple wireless standards including Miracast™, AirPlay®, and Google™ Chromecast™

Specifications
Hardware
Host Connector: USB-C® with DisplayPort™ Alt-mode
Infared: N/A
Led Indicators: N/A
Ports: N/A
Power Source: USB™ Type-A male
Warranty: 1 Year Limited

Performance
Audio Channel: 2.1 via HDMI™
Esd Protection: N/A
Hdcp Compliance: HDCP 1.4
Hdmi Compliance: HDMI™ v1.3
Infared Return Frequency: N/A
Ovp Protection: N/A
Rf Output Power: N/A
Security - Encryption: WPA2
Supported Resolution - Output
- 1920 × 1080
- 1280 × 720

Physical Specifications
Cable Length:
- USB-C® Transmitter (TX): 3.34 in. (85 mm)
- HDMI™ Receiver (RX): 23.6 in. (600 mm)
Color: White
Enclosure Type: White
Operating Humidity: < 85% non-condensing
Operating Temperature: +14 to +104°F (-10 to +40°C)
Product Depth:
- USB-C® Transmitter (TX): 0.66 in. (17 mm)
- HDMI™ Receiver (RX): 0.41 in. (10.5 mm)
Product Height:

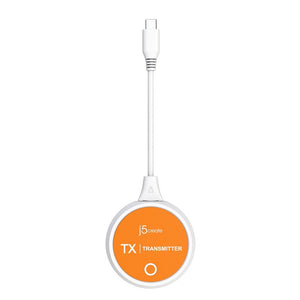

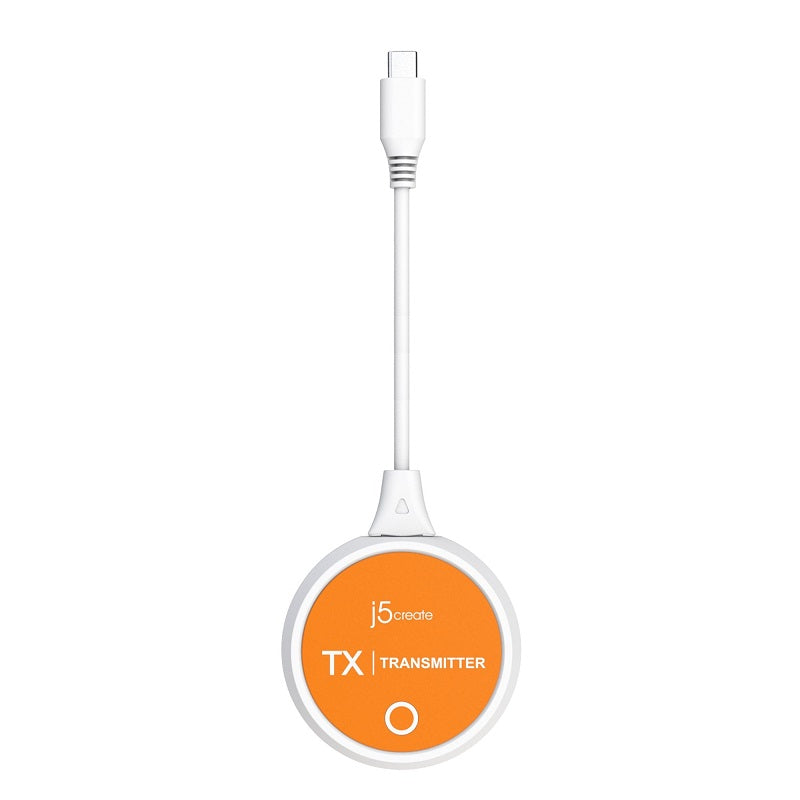

- USB-C® Transmitter (TX): 2.56 in. (65 mm)
- HDMI™ Receiver (RX): 2.2 in. (57 mm)
Product Weight:
- USB-C® Transmitter (TX): 1.9 oz (54g)
- HDMI™ Receiver (RX): 1.11 oz (31.5g)
Product Width:
- USB-C® Transmitter (TX): 2.56 in. (65 mm)
- HDMI™ Receiver (RX): 0.95 in. (24 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: -4 to +122°F (-20 to +50°C)

Wireless Protocols
Antenna Type: Internal antenna
Channel Width: 20 MHz, 40 MHz
Frequency: 2.4 GHz, 5 GHz
Range: Up to 10 – 15 meters
Standard: IEEE 802.11ac

Package Contents

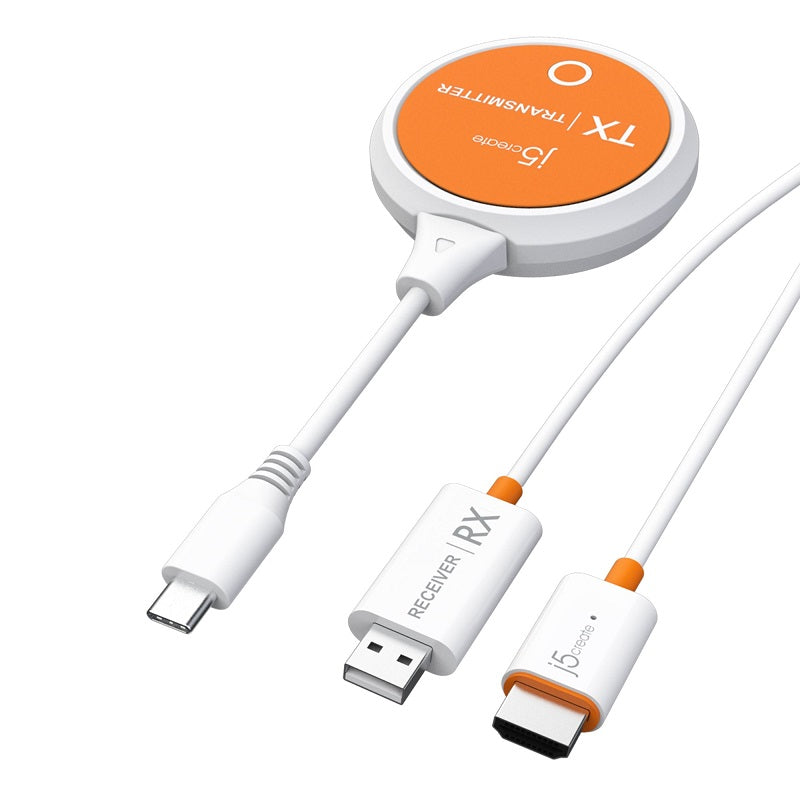

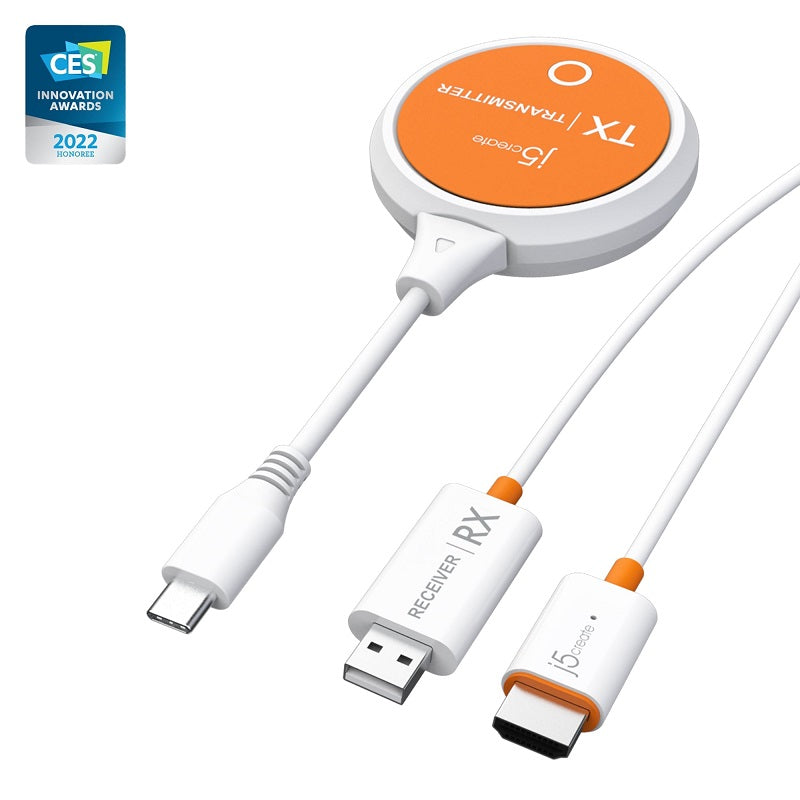

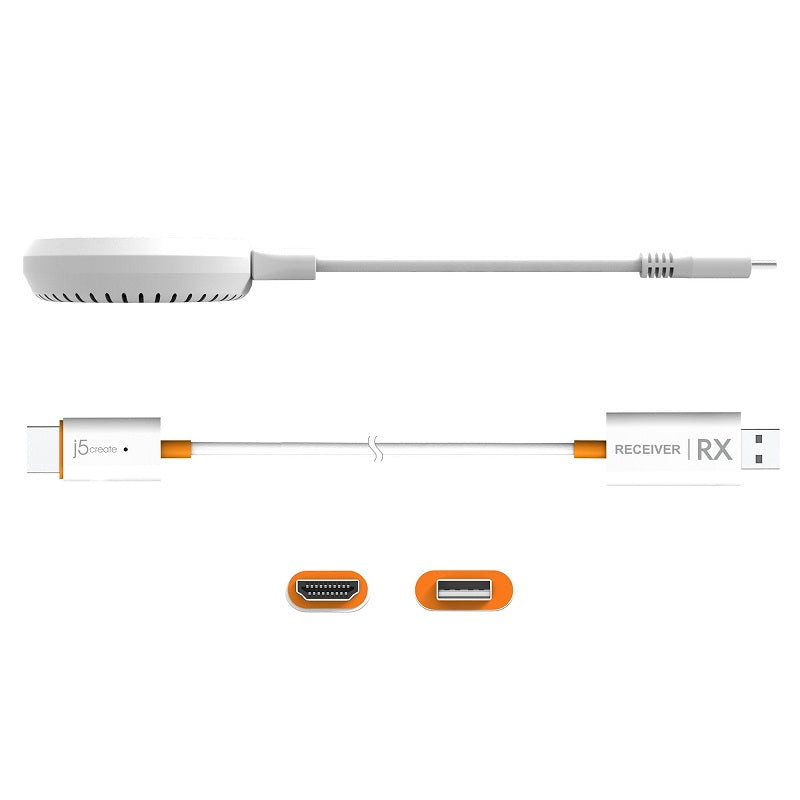

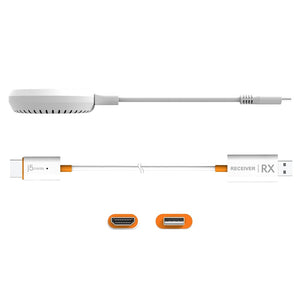

1 - JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver)
1 - USB™ Type-A extension cable (23.6")
1 - Quick Installation Guide (QIG)

Compatibility
System Requirements
- Available USB-C® port that supports DisplayPort™ Alt Mode

Special Notes
- N/A
