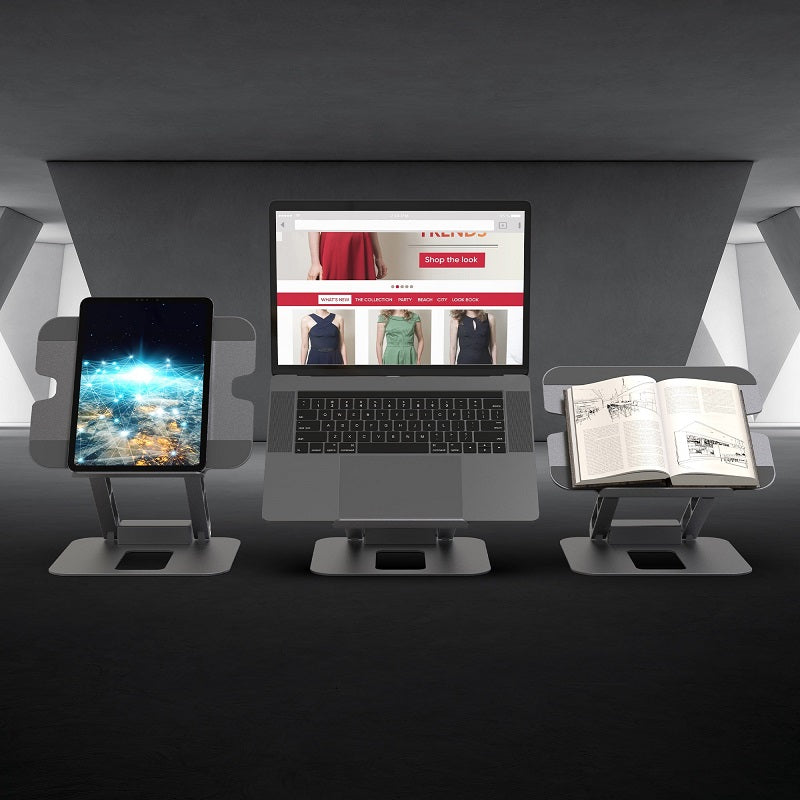

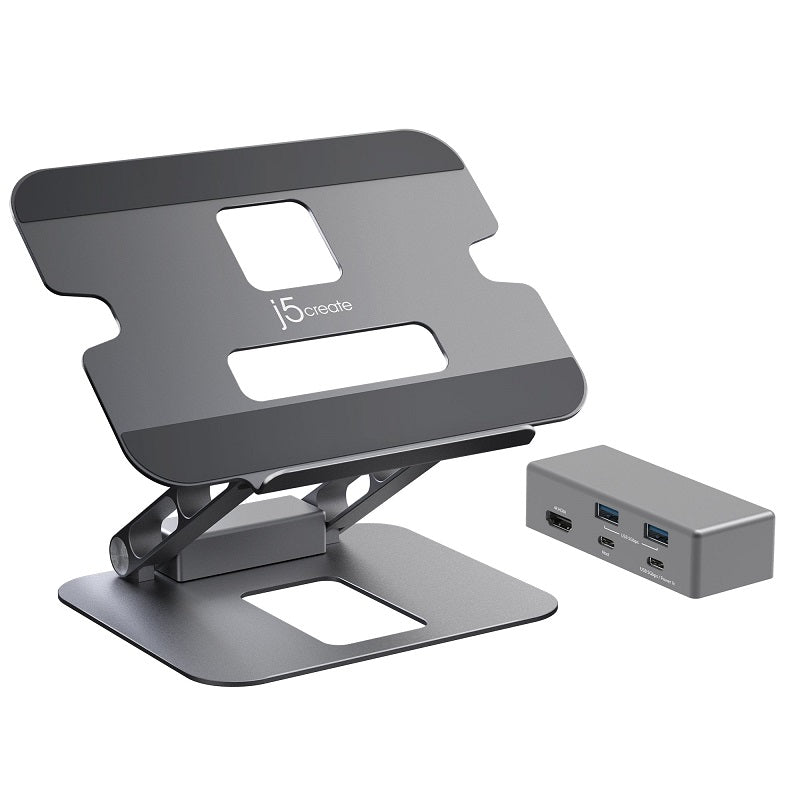

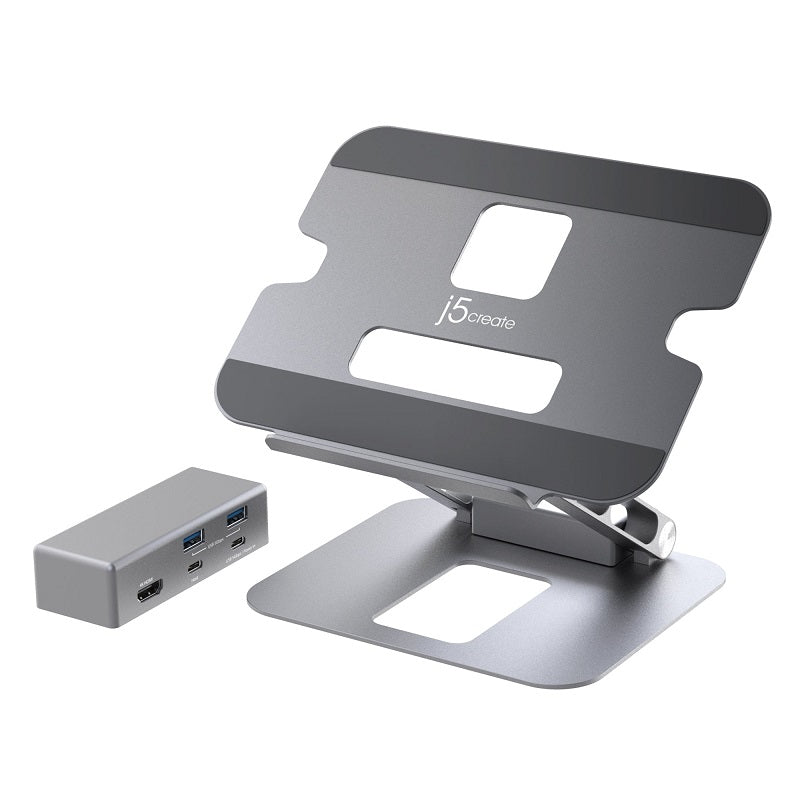

This multi-angle stand is made of durable aluminum and can support a variety of items in addition to a laptop including tablets, books, etc. Its foldable design allows for easy storage or transport, while the viewing angles and heights can be adjusted to fit your needs and optimize your viewing experience. This versatile stand gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

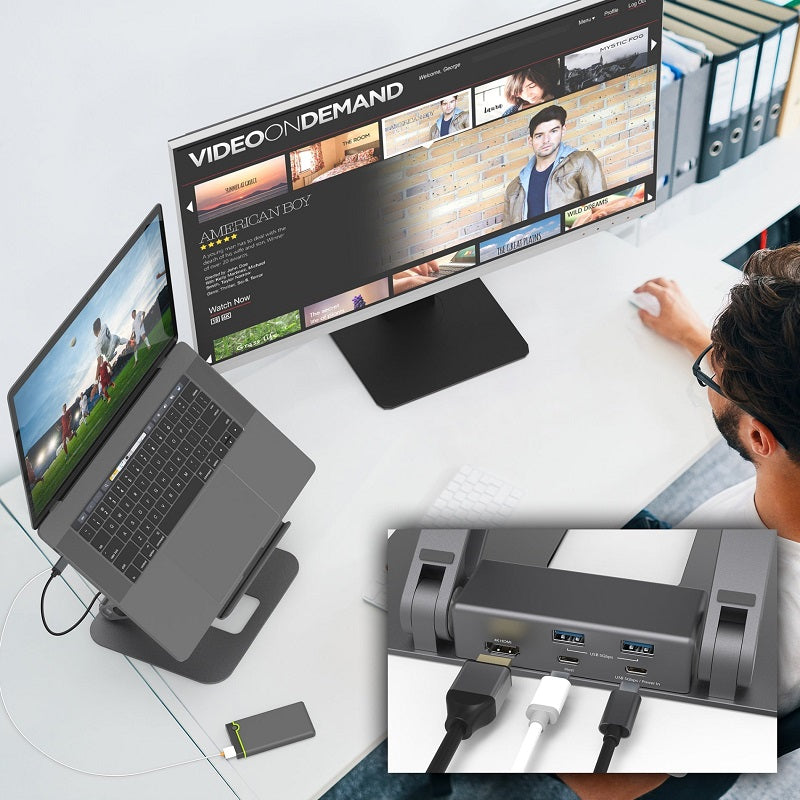

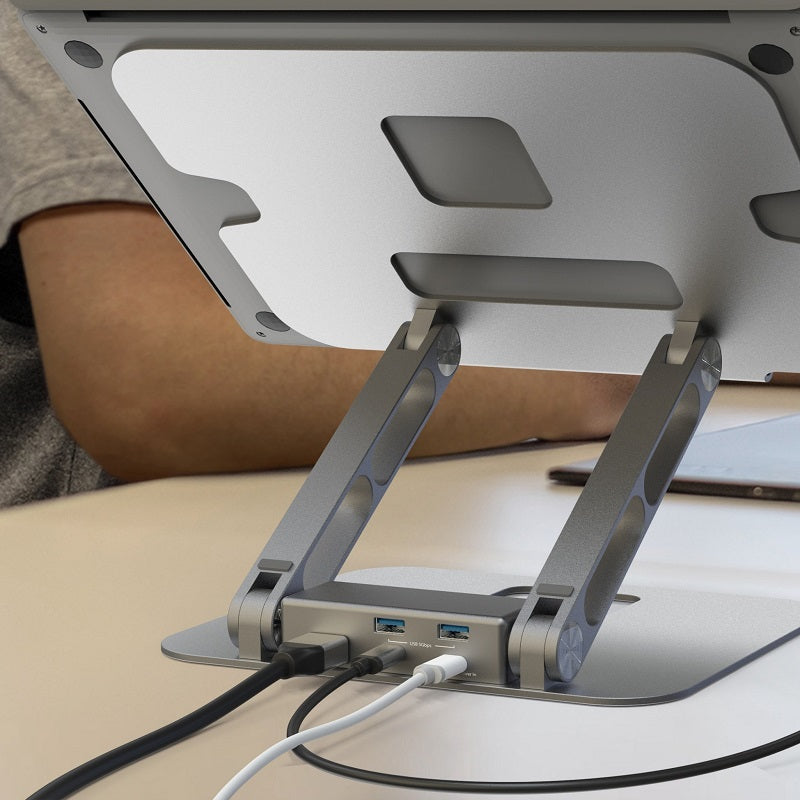

The integrated USB-C® mini dock features a 4K HDMI™ output, two USB™ 5Gbps Type-A ports, as well as a USB-C® port that supports 5Gbps data transfer rate and up to 100W pass-through, providing all the connectivity you need for enhanced productivity and to connect your peripherals.
Features- Fits most laptops up to 16 in.
- Aluminum construction with a weight capacity of up to 9 lbs. (4 kg)
- Adjustable viewing angles and heights help reduce eye strain and improve posture
- Nonslip protective pads help prevent slipping and scratches
- Foldable design for easy storage and portability
- Integrated USB-C® mini dock features a 4K HDMI™ output and three USB™ SuperSpeed 5Gbps ports
- Easily connect your Thunderbolt™ 3/4 or USB-C® laptop with DP™ Alt mode to a 4K 30Hz display
- 2 x Type-A ports for data transfer and syncing, or charging your USB™ devices
- 1 x USB-C® port with 5Gbps data transfer and support for 100W power pass-through
SpecificationsHardwareAdditional Storage: No
Adjustable Angle: Yes
Assembly Required: No
Audio Supported: Yes
Docking Station Included: Yes
Host Connector: 1 - USB-C® Female
Maximum Weight Capacity: 9 lbs. (4 kg)
Network Interface: Yes
Number Of Tiers: N/A
Ports:
1 - USB-C® 5Gbps (Data transfer & Power Delivery 3.0)
2 - USB™ Type-A 5Gbps
1 - 4K HDMI™
Power Source: Bus-powered or self-powered
Video Output: 1 - HDMI™ Female
Warranty: 2 Year Limited
PerformanceAudio Channel: 2.1 via HDMI™
Displays Supported: 1
Max Display Refresh Rate: 4K @ 30 Hz
Max Display Resolution: 3840 x 2160
Wide Screen Supported: Yes
PowerInput Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.5A
Output Voltage: Up to 20V
Power Consumption: ≤ 900 mA
Power Delivery: Up to 100W
Physical SpecificationsCable Length: 23.6 in. (60 cm)
Color: Space Gray
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (0 to 30°C)
Product Depth: 2.08 in. (53 mm)
Product Height: 11.4 in. (290 mm)
Product Weight: ≈ 2.89 lbs. (1.31 kg) (including cable)
Product Width: 8.9 in. (226 mm)
Stand Material: Aluminum
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-10 to 65°C)
Package Contents1 - JTS327 Multi-Angle 4K Docking Stand
1 - USB-C® 3.2 male to male host cable
1 - Quick Installation Guide (QIG)
CompatibilitySystem Requirements- Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device.
- DisplayPort™ v1.2 required on graphics card or video source to support 4K resolution @ 30 Hz.
Special Notes
Special Notes- A 4K-capable display and cable are required for obtaining the 3840 x 2160 resolution
- If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
- To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
- We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
