j5create Modular 11-in-1 USB-C Mini Dock

The award-winning USB-C™ Multi-Display Modular Dock is a versatile mini docking station featuring 5 detachable magnetic kits along with the main body for 12 combinations of configurations for video, data storage and charging. With the JCD389, you can easily create a triple display setup from your MacBook Pro®.

The 5 detachable magnetic kits are stand-alone mini adapters that allow you to expand even further with additional functions. This modular dock is a perfect all-in-one solution for you to connect your USB-C™ laptops to any device whether in the office, at home or on the road by switching the modules accordingly.

A hard-shell carrying case is also included to eliminate the hassle of carrying and sorting multiple adapters and cables, making the modular dock a perfect travel accessory.

Features
12 Combinations for 11-in-1 Functions:

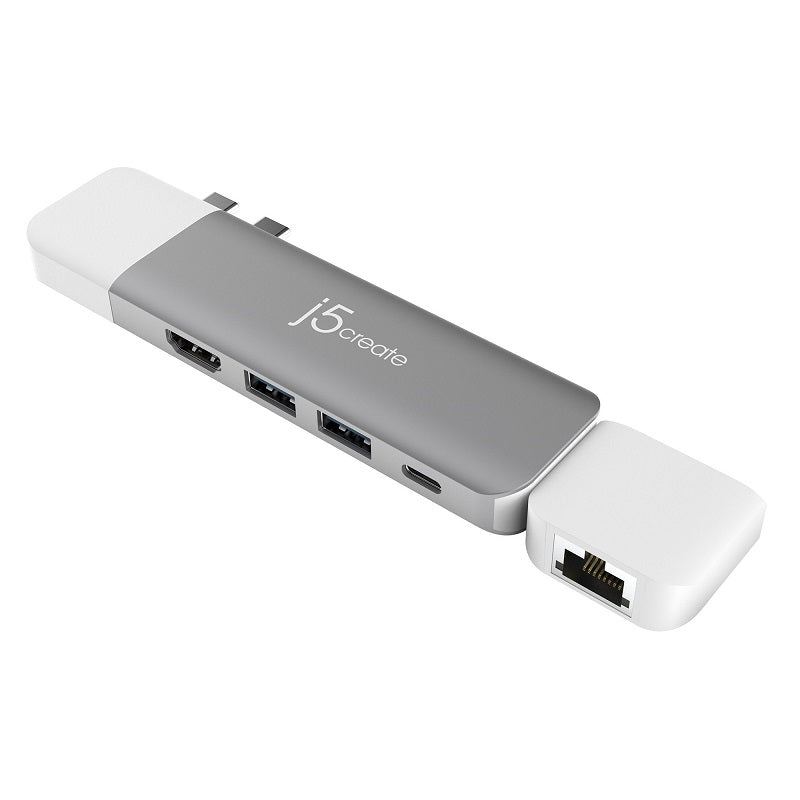

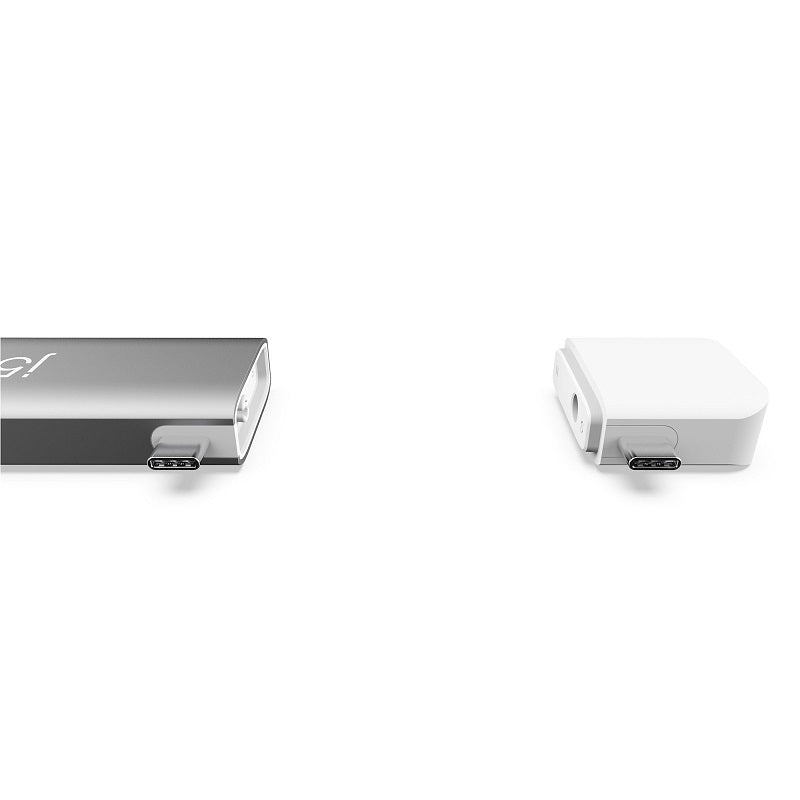

Each module can work separately as a stand-alone mini adapter or be magnetically attached to the main body for use together

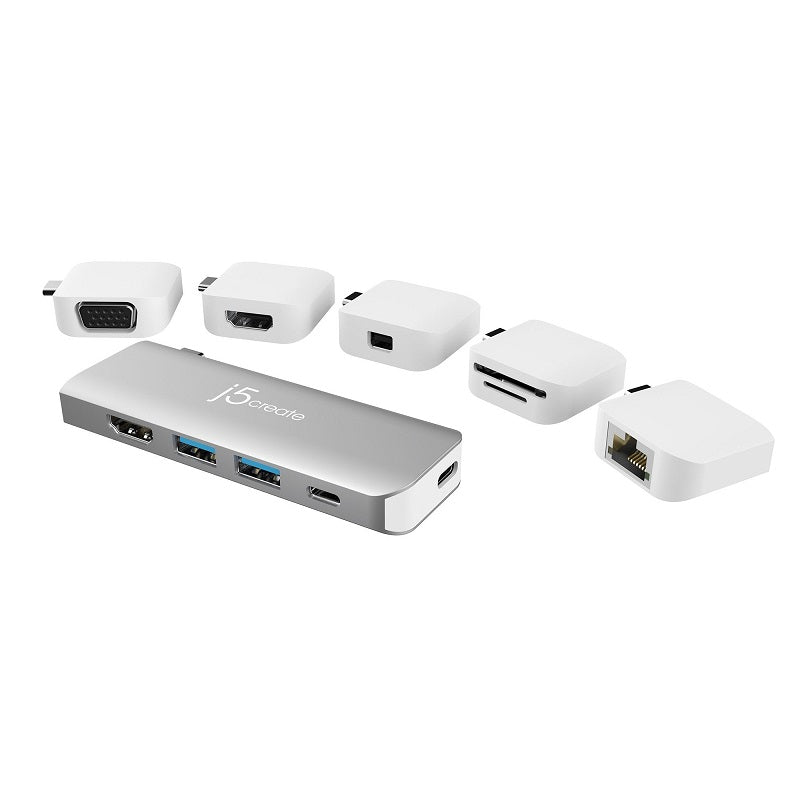

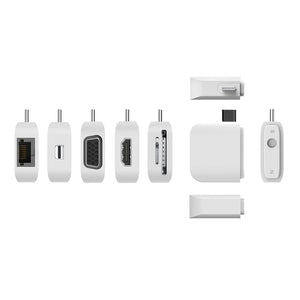

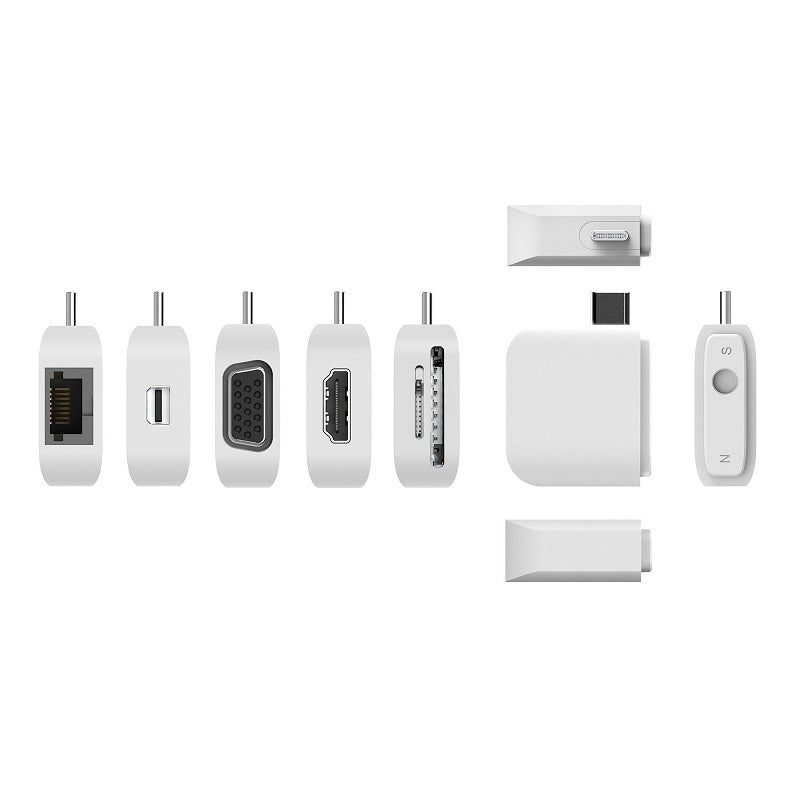

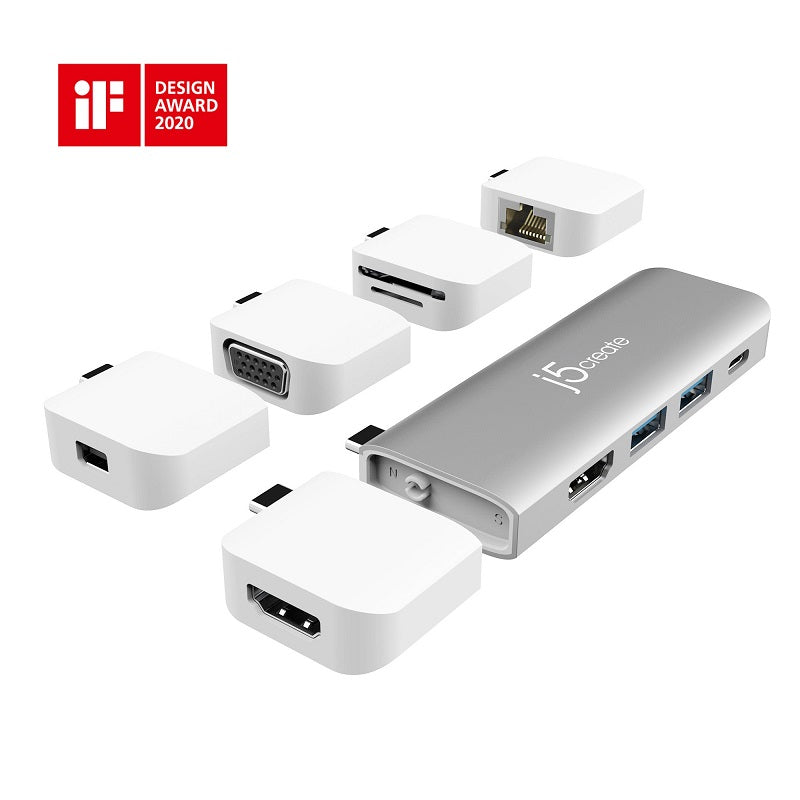

5 Magnetic Kits:
1) USB-C™ to HDMI™ with resolutions up to 3840 x 2106 @ 60 Hz
2) USB-C™ to mini DisplayPort™ with resolutions up to 3840 x 2160 @ 60 Hz
3) USB-C™ to VGA with resolutions up to 1920 x 1080 @ 60 Hz
4) USB-C™ to Gigabit Ethernet
5) USB-C™ to SD™/microSD™ 3.0 memory card reader/writer slots for external memory cards up to 2 TB

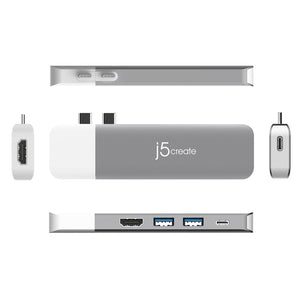

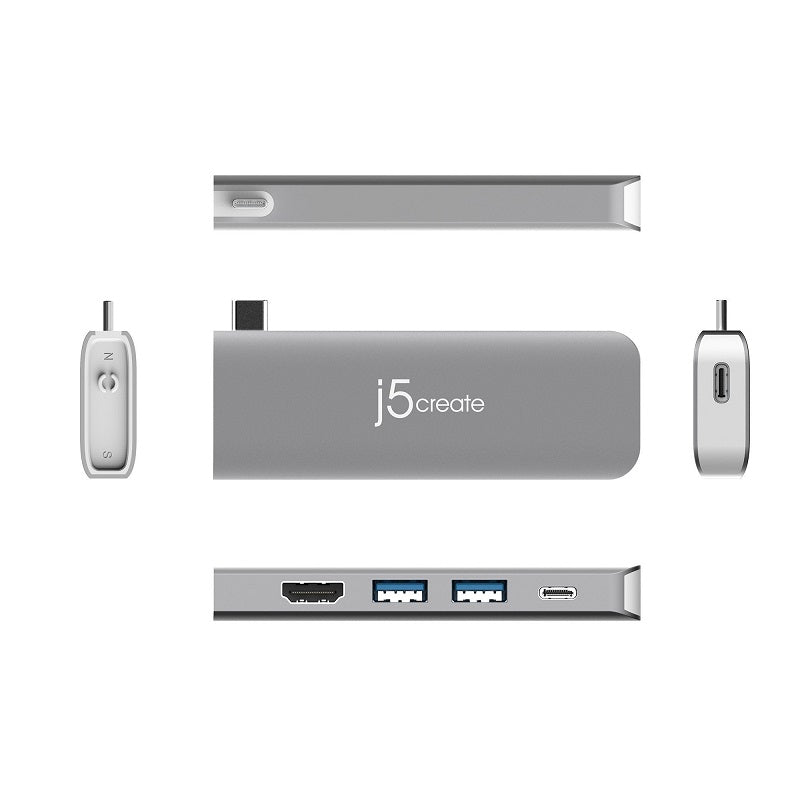

Main Body of Dock:
1) USB-C™ to 4K @ 30 Hz HDMI™
2) USB™ Type-A 3.1 Gen 1 port x2 supports 5 Gbps data transfer
3) USB-C™ Power Delivery 3.0 charging up to 100W
4) USB-C™ 3.1 Gen 1 supports 5 Gbps data transfer

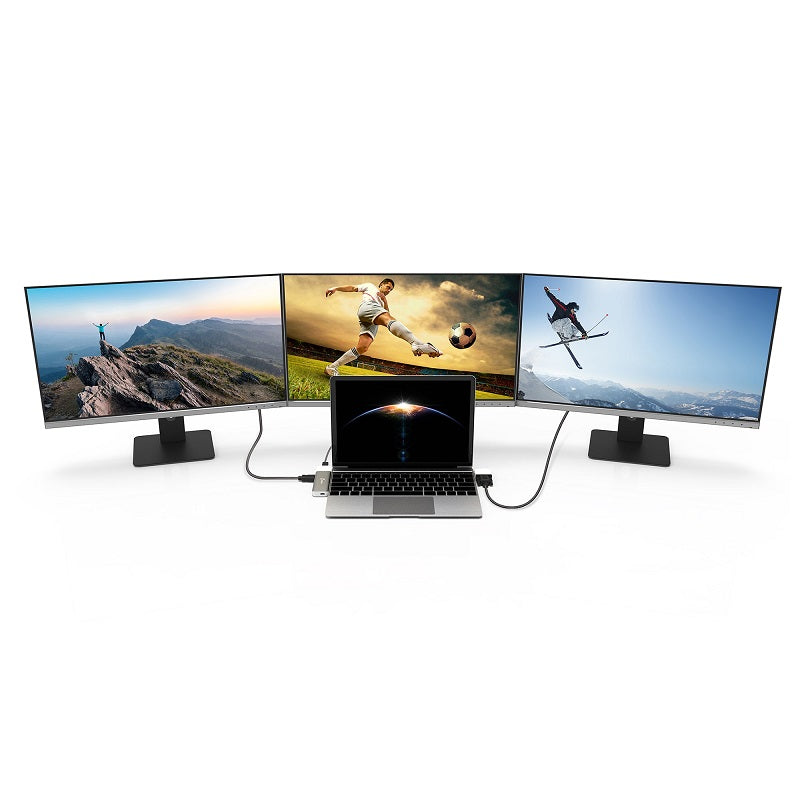

Dual or Triple Monitors:

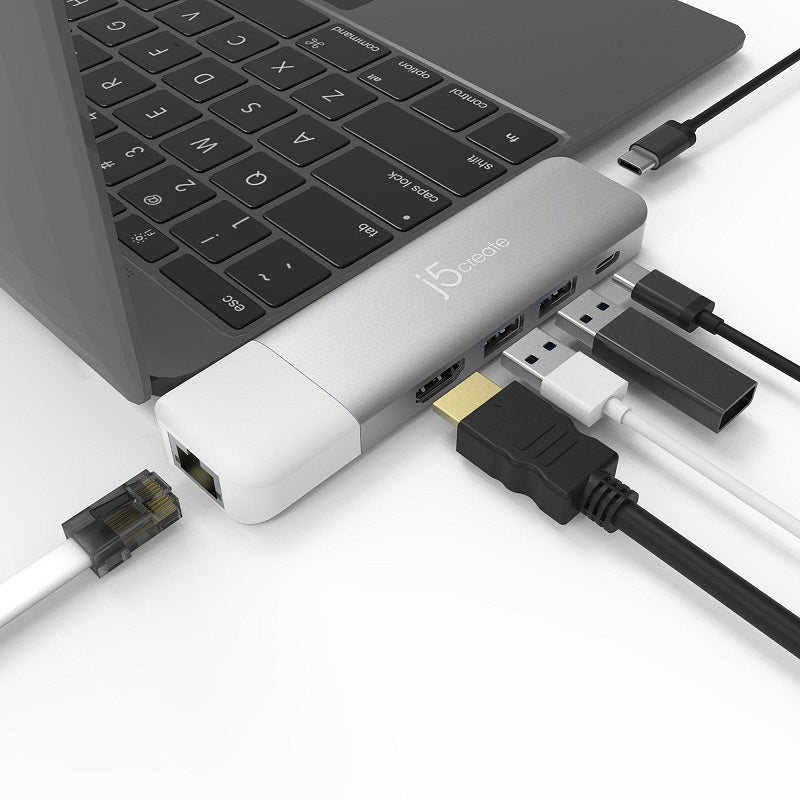

When the main body and USB-C™ to 4K HDMI™, USB-C™ to 4K mini DisplayPort™ or HDMI™ to VGA are used at the same time, a MacBook Pro® can be used with triple monitors.

Perfect for MacBook®:
Compatible with MacBook Pro® 2016-2019 / MacBook Air® 2018-2019 / 12" MacBook® 2015 or later

Specifications
Hardware
Audio Supported:Yes                                                                                                   Host Connector:
- Main Body: USB-C™ Male
- Magnetic Kits: USB-C™ Male
Network Interface:
- Main Body: N/A
- Magnetic Kits: RJ45 (Gigabit Ethernet)
Ports:
-Main Body:
1 - USB-C™ Power Delivery 3.0
1 - USB-C™ 3.1 Gen 1
2 - USB™ 3.1 Gen 1 Type-A
1 - 4K HDMI™
-Magnetic Kits (stand-alone mini adapters):
1 - USB-C™ to 4K HDMI™
1 - USB-C™ to 4K mini DisplayPort™
1 - USB-C™ to VGA
1 - USB-C™ to Gigabit Ethernet™
1 - USB-C™ to SD™/microSD™ 3.0 memory card reader & writer
Power Source: Bus-powered or self-powered
Video Output:
- Main Body:
HDMI™ Female
- Magnetic Kits:
HDMI™ Female
mini DisplayPort™ Female
VGA Female
Warranty: 2 Year Limited

Performance
Audio Channel:
- Main Body: 2.1 via HDMI™
- Magnetic Kits: 2.1 via HDMI™/ mini DisplayPort™
Compatible Networks:
- Main Body: N/A
- Magnetic Kits: 10 / 100 / 1000 Mbps
Displays Supported:
- Main Body: 1
- Magnetic Kits: 3 (when used with the main body and connected to a compatible MacBook®)
Max Data Transfer Rate:
- Main Body: 5 Gbps
- Magnetic Kits: 5 Gbps
Max Display Refresh Rate:
- Main Body: 30 Hz
- Magnetic Kits: 60 Hz
Max Display Resolution:
- Main Body: 3840 x 2160
- Magnetic Kits: 3840 x 2160

Power
Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.75A
Output Voltage: Up to 20V
Power Consumption: ≤ 600 mA
Power Delivery: Up to 100W via USB-C™

Physical Specifications
Cable Length: N/A
Color: Silver, White
Enclosure Type:
- Main Body: Aluminum
- Magnetic Kits: ABS Plastic
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Product Depth:
- Main Body: 3.86 in. (98 mm)
- Magnetic Kits: 0.83 in. (21 mm)
Product Height:
- Main Body: 0.51 in. (13 mm)
- Magnetic Kits: 0.51 in. (13 mm)
Product Weight:
- Main Body: 1.69 oz (48 g)
- Magnetic Kits: 0.42 oz (12 g)
Product Width:
- Main Body: 1.34 in. (34 mm)
- Magnetic Kits: 1.34 in. (34 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents
1 - JCD389 ULTRADRIVE Kit USB-C™ Multi-Display Modular Dock
1 - Hard Carrying Case
1 - Quick Installation Guide

Compatibility
System Requirements
- Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0.
- Please refer to the manufacturer of your computer for more information on your hardware specifications.

Special Notes
- A 4K-capable display is required to achieve a 3840 x 2160 resolution
- If you are using a high-powered USB™ device, attach the USB-C™ power adapter to the USB-C™ power delivery port to ensure maximum performance.
- Power adapter not included. If applicable, please use your computer’s OEM power adapter.
- We recommend, at most, one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time.
