j5create M.2 NVMe SSD USB-C Dual 4K Docking Station For MacBook Pro/Air

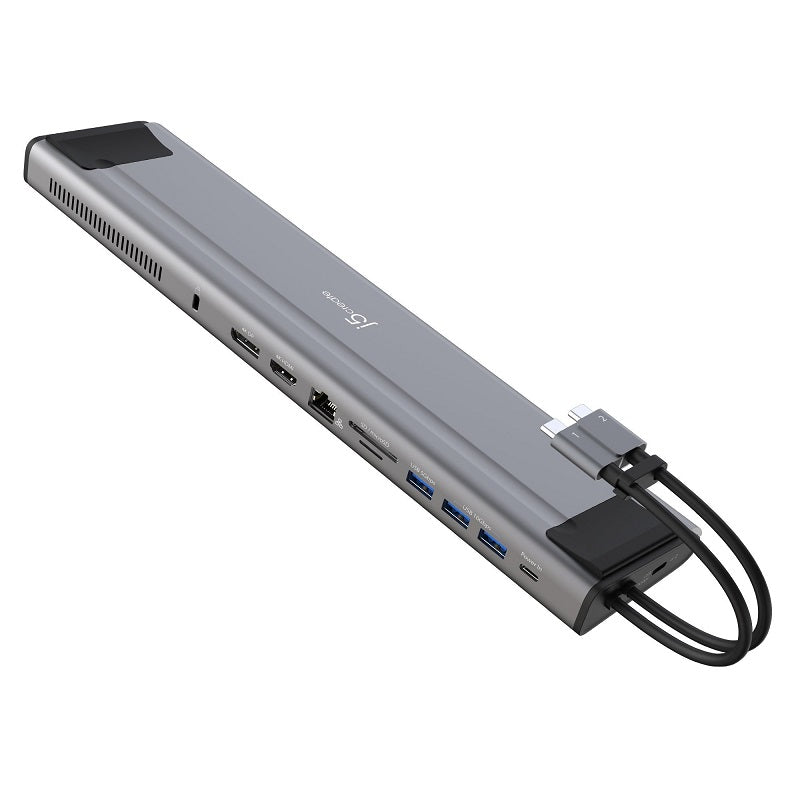

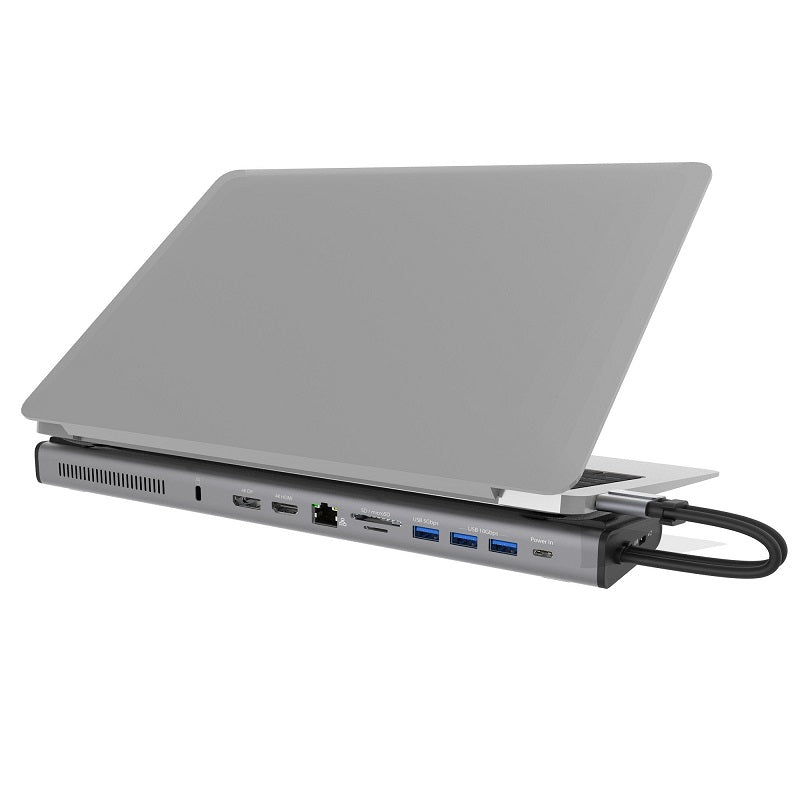

Increase your productivity with the M.2 NVMe® USB-C® Gen 2 Docking Station, transforming your Thunderbolt™ 3 or USB-C® compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe®/SATA PCIe® SSD Slot to expand your internal storage space, three SuperSpeed USB™ 10 Gbps ports (one USB-C® and two USB™ Type-A), a Gigabit Ethernet port, SD™ & microSD™ memory card reader/writer, and a USB™ Type-A 5 Gbps port.

This USB-C® Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe® M.2 SSD enclosure and extra storage you can access through an SD™ and microSD™ card, this is a must-have for creative professionals using a Mac®.

Features

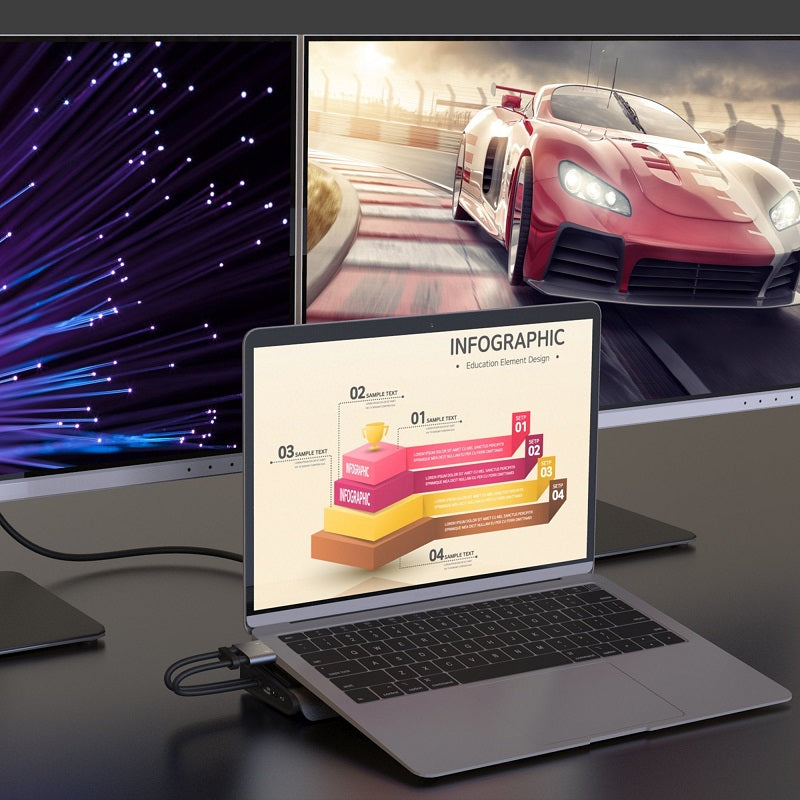

DUAL 4K 60 HZ DISPLAYS*
- Supports extended dual 4K displays (HDMI™ & DisplayPort™) on Intel® MacBook Pro® and MacBook Air®
- Supports single display via HDMI™ on other USB-C® compatible laptops connected via one USB-C® port

HIGH-PERFORMANCE STORAGE

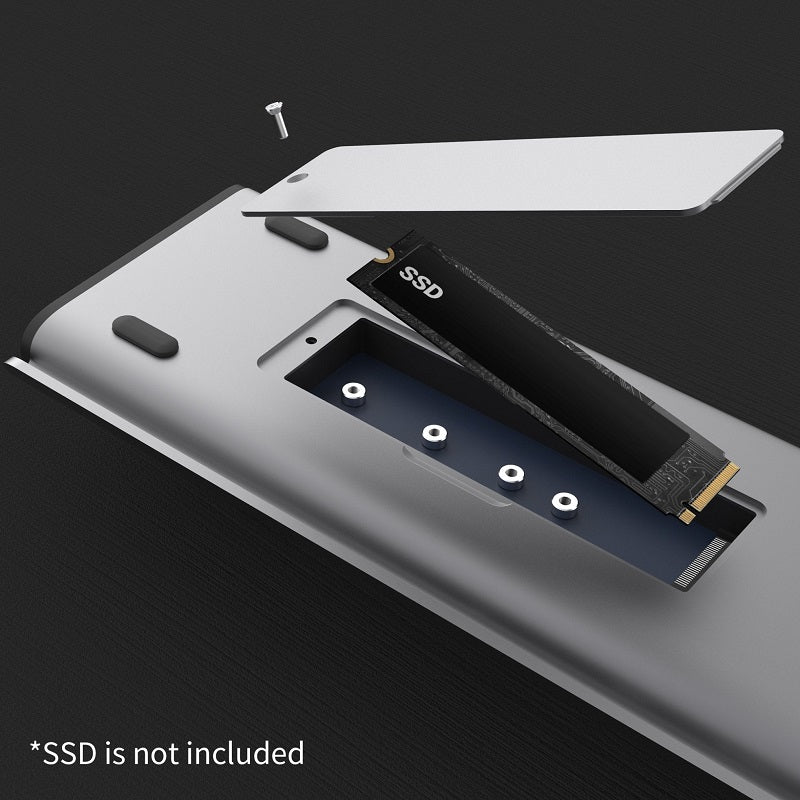

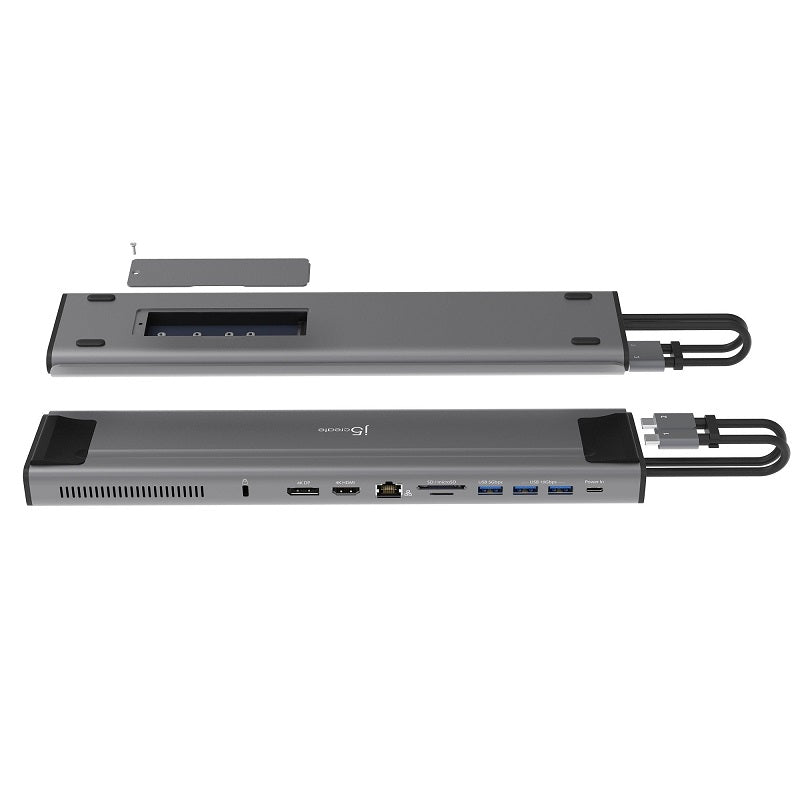

Built-in M.2 NVMe®/SATA PCIe® SSD Slot (Supports M.2 NVMe® or SATA M key 2230/2242/2260/2280) to expand storage space, convenient SD™ & microSD™ access, and one USB-C® 10 Gbps port to connect an external hard drive

HIGH-SPEED PERFORMANCE
Provides three SuperSpeed USB™ 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) to connect peripherals

100W POWER DELIVERY PASS-THROUGH
Charge your laptop and power connected peripherals when used with a USB-C® power adapter

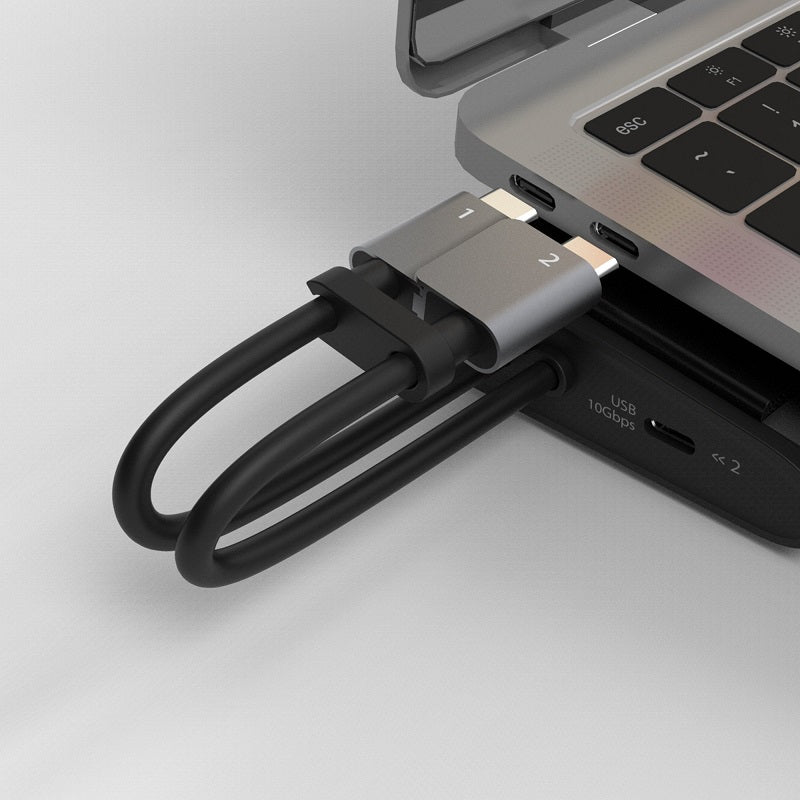

DETACHABLE MAGNETIC CONNECTORS
The flexible design gives you the ability to connect to a variety of compatible devices

ANTI-THEFT PROTECTION
Security slot to prevent equipment theft in a wide range of business or institutional environments

Specifications
Hardware
Audio Supported: Yes
Host Connector: USB-C™ Male
Network Interface: RJ45 (Gigabit Ethernet)

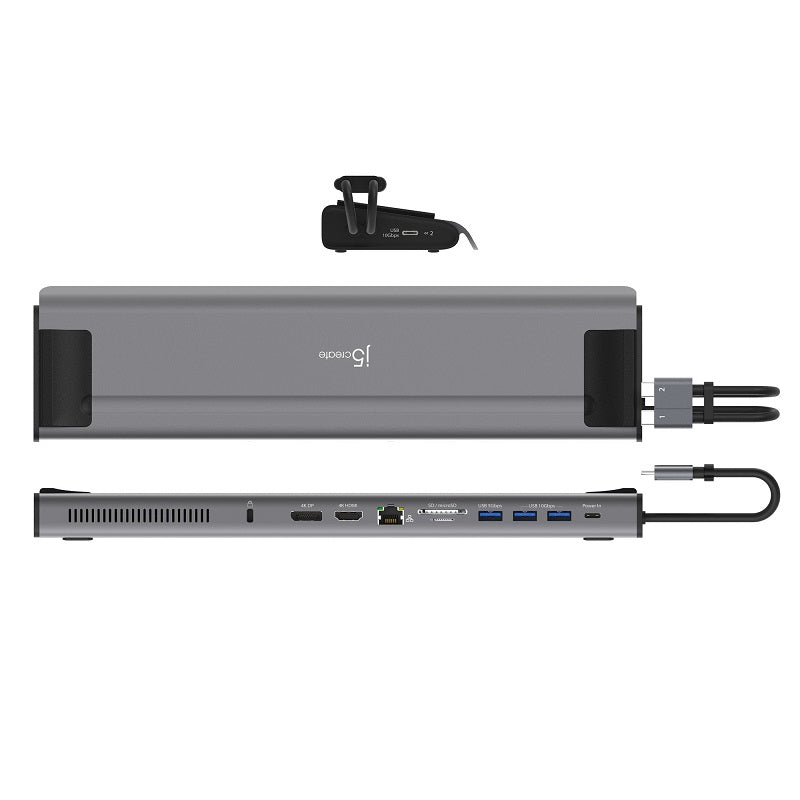

Ports:

• 1 - M.2 NVMe®/SATA slot (2230,2242,2260,2280)
• 1 - USB-C® 3.2 Gen 2
• 1 - USB-C® Power Delivery 3.0
• 2 - USB™ Type-A 3.2 Gen 2
• 1 - USB™ Type-A 3.2 Gen 1
• 1 - 4K HDMI™
• 1 - 4K DisplayPort™
• 1 - SD™ & microSD™ 3.0 memory card reader/writer
• 1 - RJ45 Gigabit Ethernet
• 1 - Security Lock Slot

Power Source: Bus-powered
Usb Pass-Through: Yes
Video Output:

• 1 - HDMI™ Female
• 1 - DisplayPort™ Female

Warranty: 2 Year Limited

Performance
Audio Channel: 2.1 via HDMI™/DisplayPort™
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 2
Max Data Transfer Rate:

• 10 Gbps
• M.2 slot - Write: 900 MB/s, Read: 925 MB/s

Max Display Refresh Rate: 60 Hz
Max Display Resolution:
HDMI™/DisplayPort™: 3840 x 2160

Power
Input Current: 5A
Input Voltage: 20V
Output Current: 5A
Output Voltage: 20V
Power Consumption: ≤ 600 mA
Power Delivery: Up to 100W via USB-C®

Physical Specifications
Cable Length: 0.6 in. (15 cm)
Color: Grey & Black
Enclosure Type: Aluminum
Operating Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Product Depth: 12.5 in. (318 mm)
Product Height: 1.02 in. (26 mm)
Product Weight: 0.83 lbs. (378g)
Product Width: 3.14 in. (80 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents
1 - JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station
1 - Quick Installation Guide (QIG)

Compatibility
System Requirements

• DisplayPort™ v1.4 required on graphics card, cable, and video source to support 4K @ 60 Hz resolution
• Available USB-C® port(s) that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
• *Please refer to the manufacturer of your computer for more information about your device

Special Notes

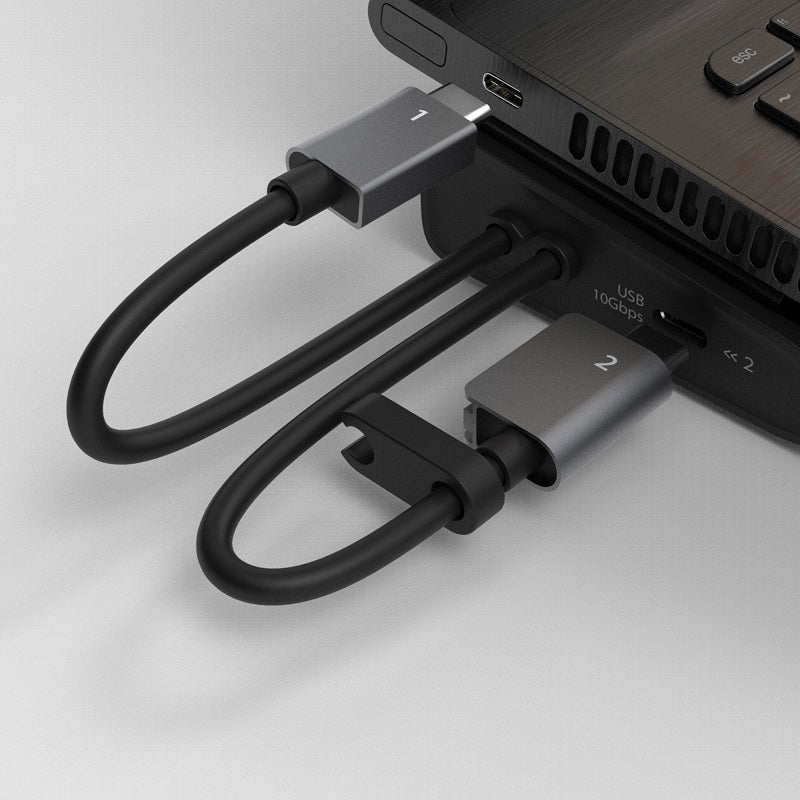

• To ensure optimal capability and compatibility for laptops with a single USB-C® port, the 2nd USB-C® host cable must be connected to the 10 Gbps USB-C® Gen 2 port on the docking station.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If connected to a USB™ 3.0 (5 Gbps)/USB™ 2.0 port or if using a USB™ 3.0 (5 Gbps)/USB™ 2.0, performance may be limited.
• The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
• M1 MacBook Pro® and MacBook Air® only supports up to 1 external display. This single display limitation does not affect Intel® Mac®
• Two USB-C® connections provide higher M.2 transfer speeds compared to a single USB-C® connection
• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time. If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance
