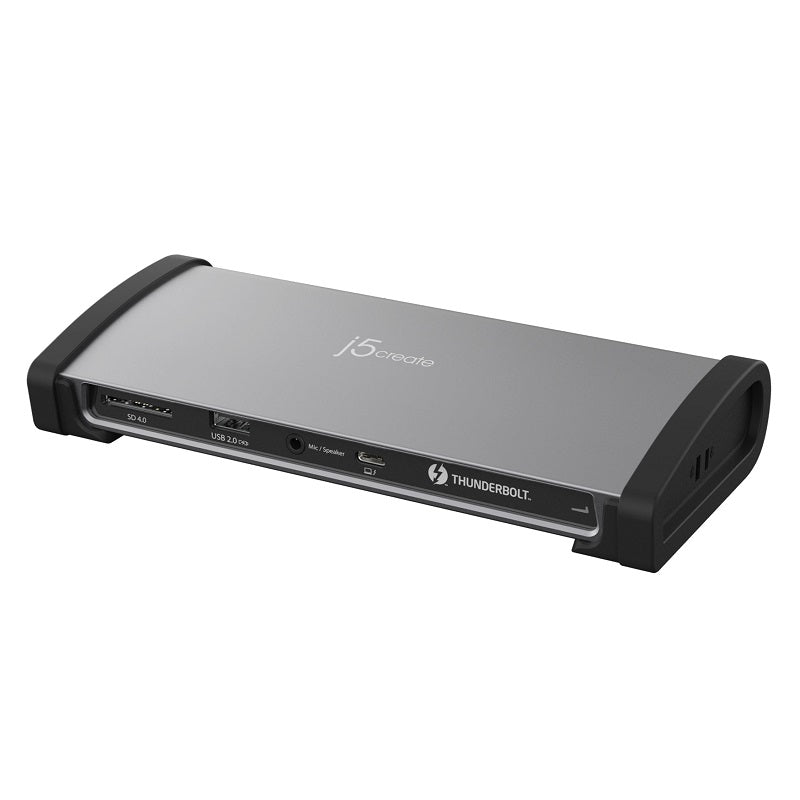

j5create 8K Thunderbolt 4 Docking Station

This Thunderbolt™ 4 Docking Station turns your Mac® or Windows® laptop into a full workstation with three Thunderbolt™ 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience.

With 96W Power Delivery, three USB™ 3.2 ports, and a USB-C® port, this docking station is perfect for your MacBook®, or Windows® laptop that support Thunderbolt™ 4 allowing you to add high-speed ports to your laptop. This Thunderbolt™ 4 docking station also has an RJ45 Gigabit Ethernet port, SD™ 4.0 memory card reader/writer, and combo audio jack for added flexibility.

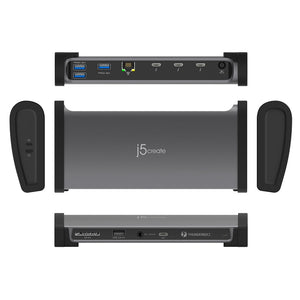

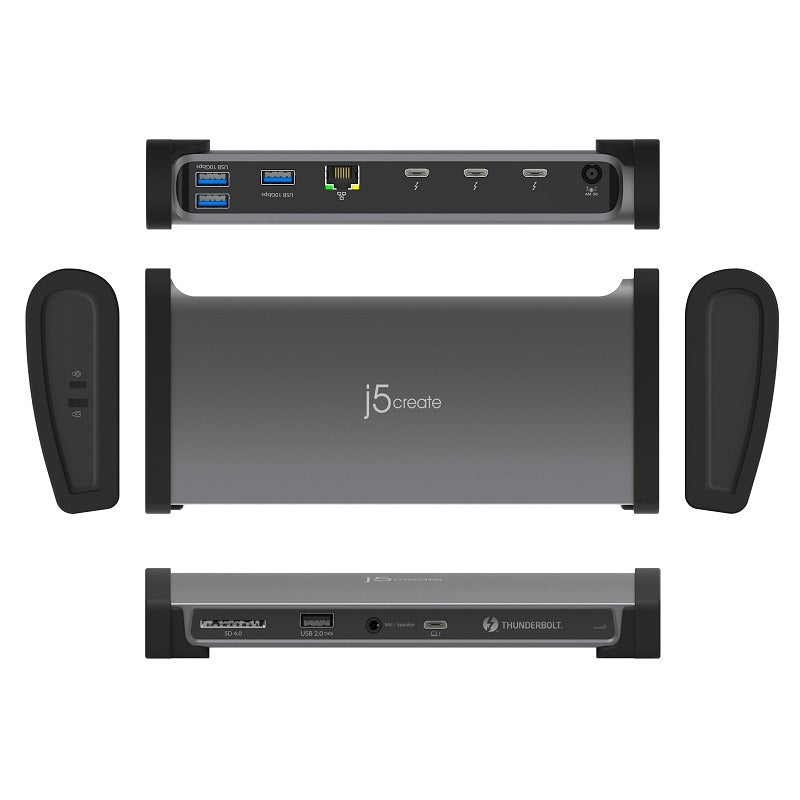

All 11 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!

Features
- Providing the ultimate connectivity for Thunderbolt™ 4 laptops
- Intel® Thunderbolt™ 4 certified for reliability and compatibility
- Capable of ultra-high data transfer speeds
- Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality

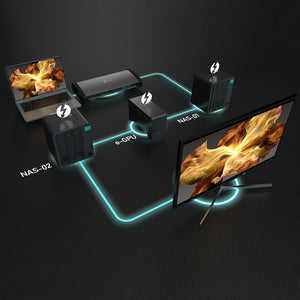

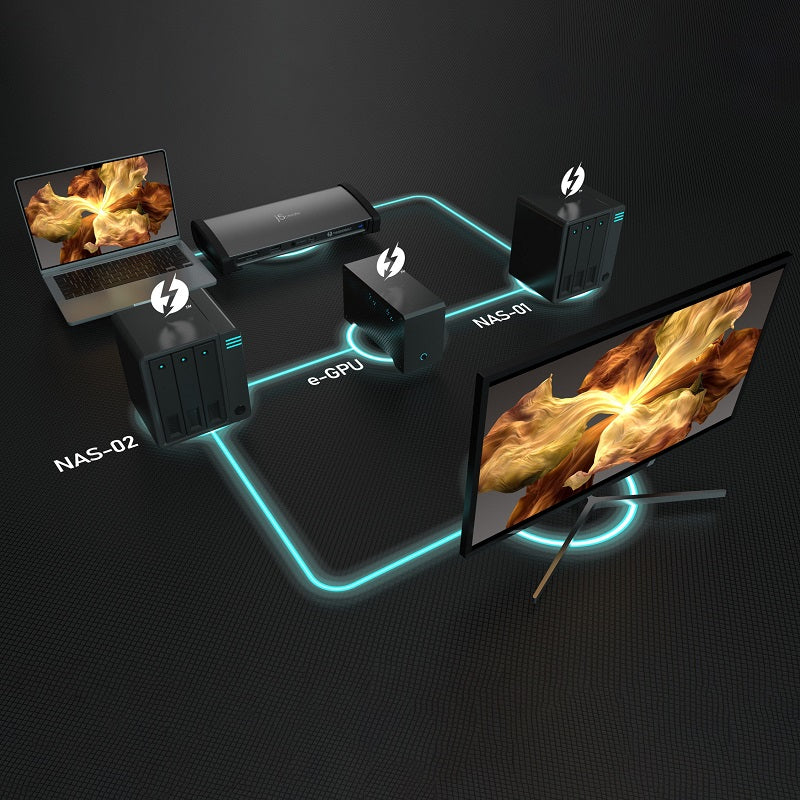

- Supports Thunderbolt™ daisy chain feature to connect more Thunderbolt™ devices
- Perfectly made for MacBook Pro® (2021 and later) and Thunderbolt™4 laptops
- 3 x Thunderbolt™ 4 USB-C® 40Gbps

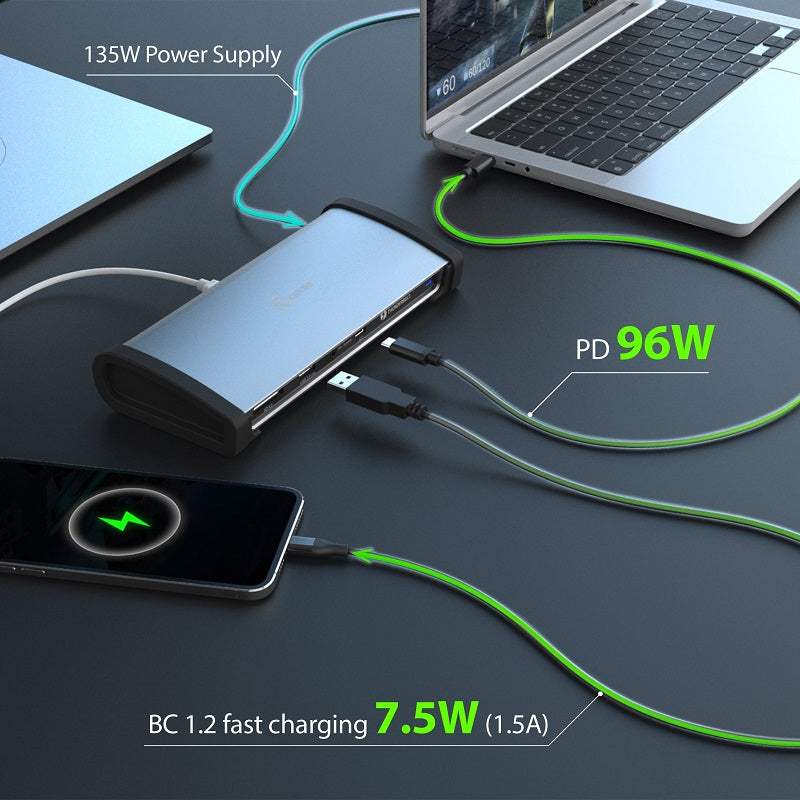

- Power adapter 135W AC adapter with up to 96W PD charge
- Backwards compatible with Thunderbolt™ 3

Specifications
Hardware
Audio Supported: Yes
Host Connector: 1 - Thunderbolt™ 4 Female
Network Interface: RJ45 (Gigabit Ethernet)

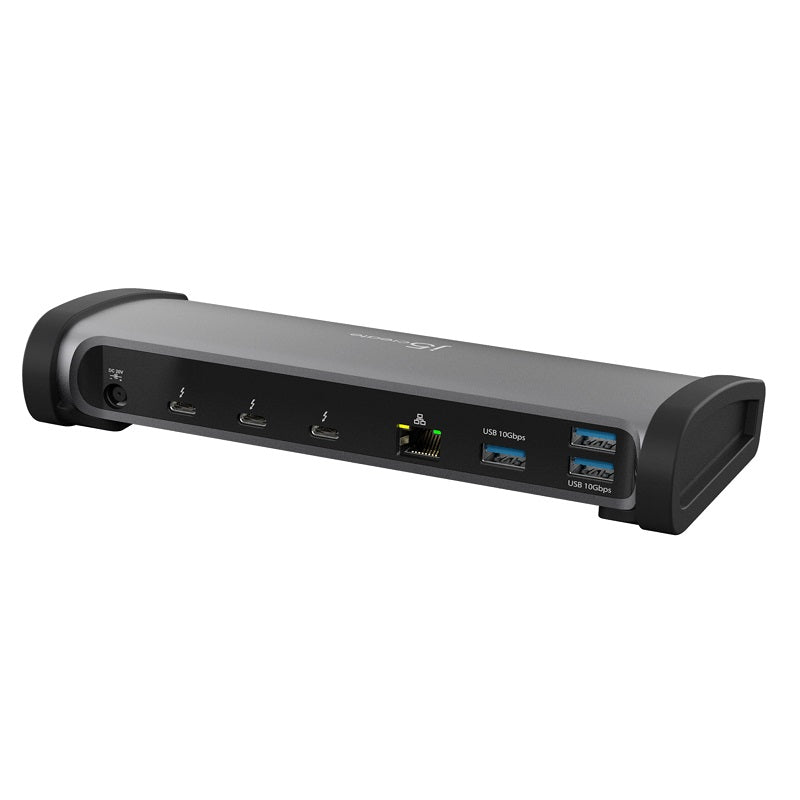

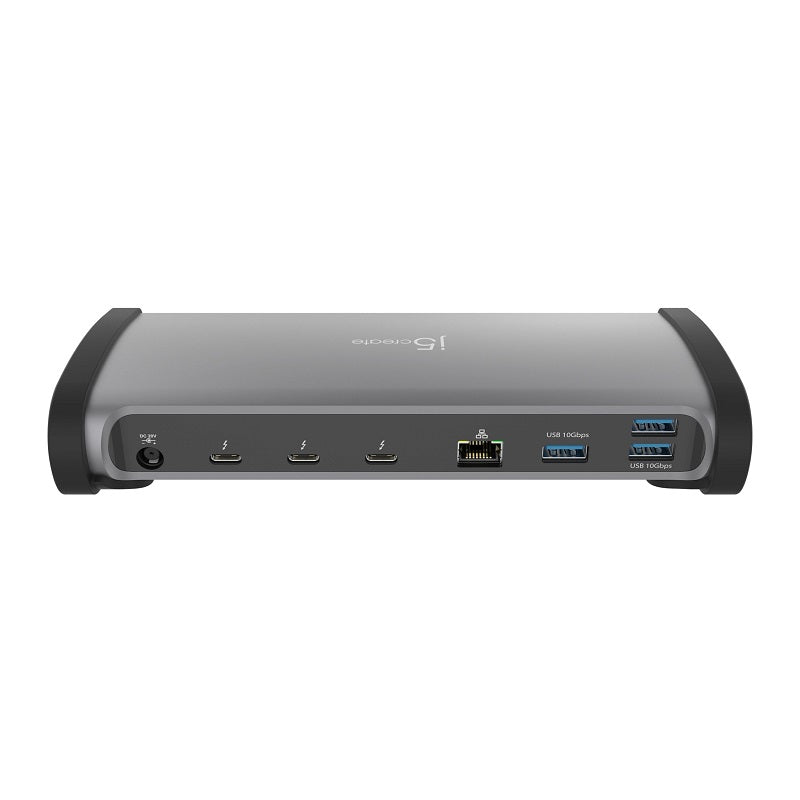

Ports:

• 1 - USB-C® Power Delivery 96W (Host)
• 3 - Thunderbolt™ 4 USB-C® 40Gbps
• 3 - USB™ 3.2 Type-A Gen 2 10Gbps
• 1 - USB™ 2.0 Type-A with BC1.2 fast charging
• 1 - SD™ 4.0 UHS-II 312 MB/s memory card reader/writer
• 1 - 3.5 mm combo audio jack
• 1 - RJ45 Gigabit Ethernet

Power: SourceSelf-powered
Video Output: 3 - Thunderbolt™ 4 Female
Warranty: 2 Year Limited

Performance
Audio Channel: 3 -Thunderbolt™ 4 / 3.5 combo audio jack
Compatible Networks: 10/100/1000 Base-T, auto-negotiating
Displays Supported: 2
Max Data Transfer Rate: 40Gbps
Max Display Refresh Rate: 60 Hz via Thunderbolt™ 4
Max Display Resolution:

• Thunderbolt™ Mode: 2 - 4K @ 60 Hz
• 1 - 4K @ 120 Hz (Via DP™)
• 1 - 4K @ 144 Hz (with DSC)
• 1 - 8K @ 30 Hz
• 1 - 8K @ 60 Hz (with DSC)
• MFDP Mode (Base on HBR3 Host)
• 1 - 4K @ 60 Hz

Power
- Input Current: 2.5A
- Input Voltage: 110V-240V
- Output Current: 6.75A
- Output Voltage: 20V
- Power Consumption: 1.2A
- Power Delivery: 96W

Physical Specifications
- Cable Length: 2.3 ft. / 70 cm
- Color: Black / Space Grey
- Enclosure Type: Aluminum
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 32 to 118°F (0 to 48°C)
- Product Depth: 1.21in./ 30.85 mm
- Product Height: 7.64 in./194 mm
- Product Weight: 14.5 oz /411g
- Product Width: 3.32 in./ 84.39 mm
- Storage Humidity: < 85% non-condensing
- Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents
- 1 - JTD562 Thunderbolt™ 4 Docking Station
- 1 - 135W AC adapter with up to 96W PD charge
- 1 - Thunderbolt™ 4 to Thunderbolt™ 4 Cable (2.3 ft / 70 cm)

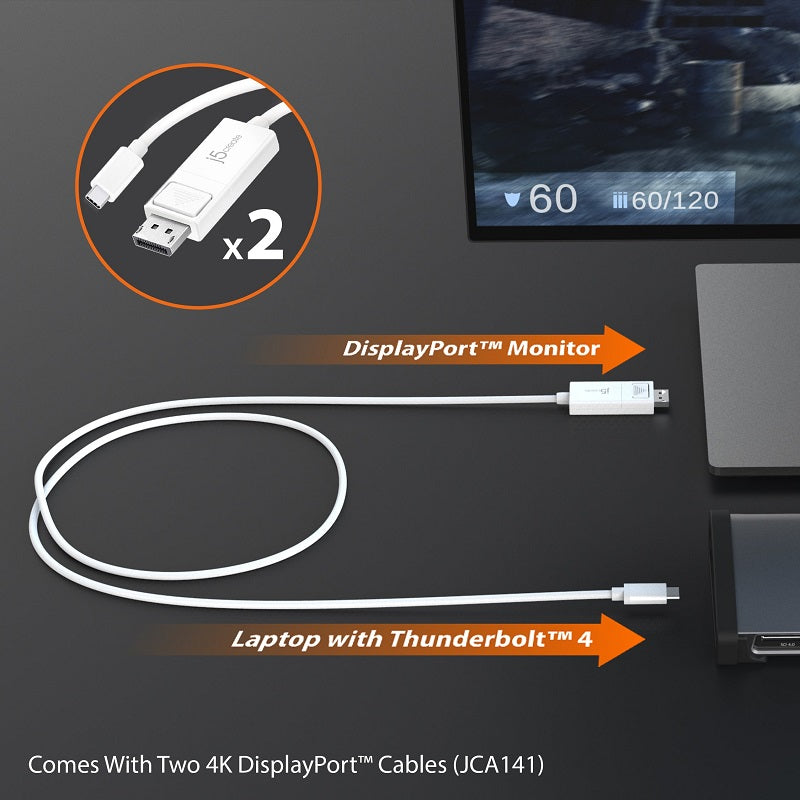

- 2 - USB-C® to 4K DisplayPort™ Cable (JCA141)
- 1 - Quick Installation Guide (QIG)

Compatibility
System Requirements
Available Thunderbolt™ 4 port
Compatibility
- MacBook Pro® 2016 and later
- Surface Pro™ 8, Surface™ laptop studio
- 2021 iMac® M1, 2019/2017 iMac®, iMac Pro®, 2021 iPad Pro® M1
*Compatibility is not limited to just the devices listed above
*Please refer to the manufacturer of your computer for more information about your device

Special Notes
- An 8K-capable display is required for obtaining the 7680 x 4320 resolution
- If connected to a USB™ 3.2 host port or under, or if using a USB™ 3.2 host cable or under, performance or functionality may be limited
