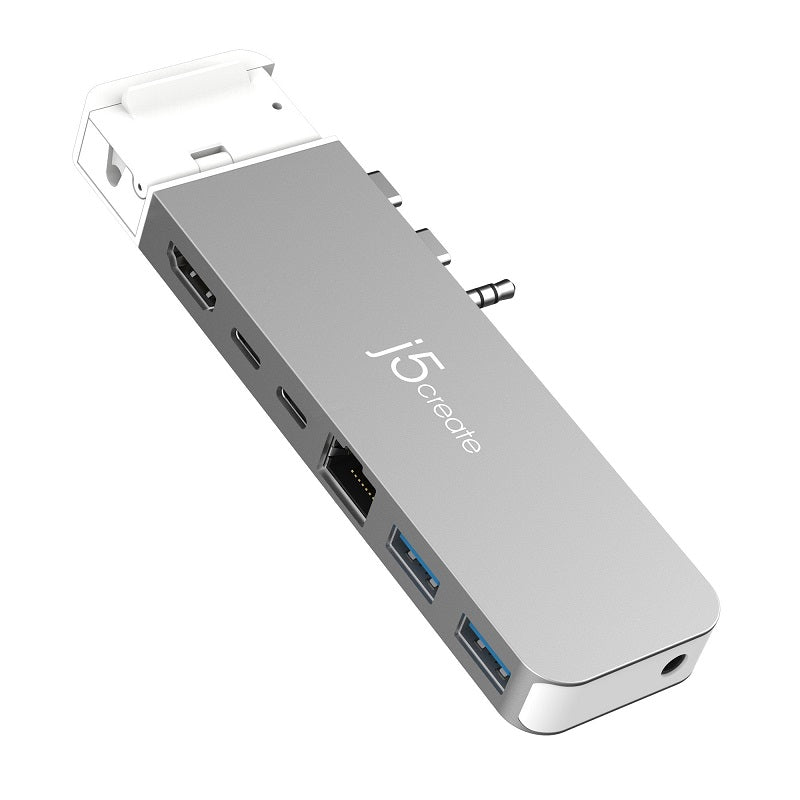

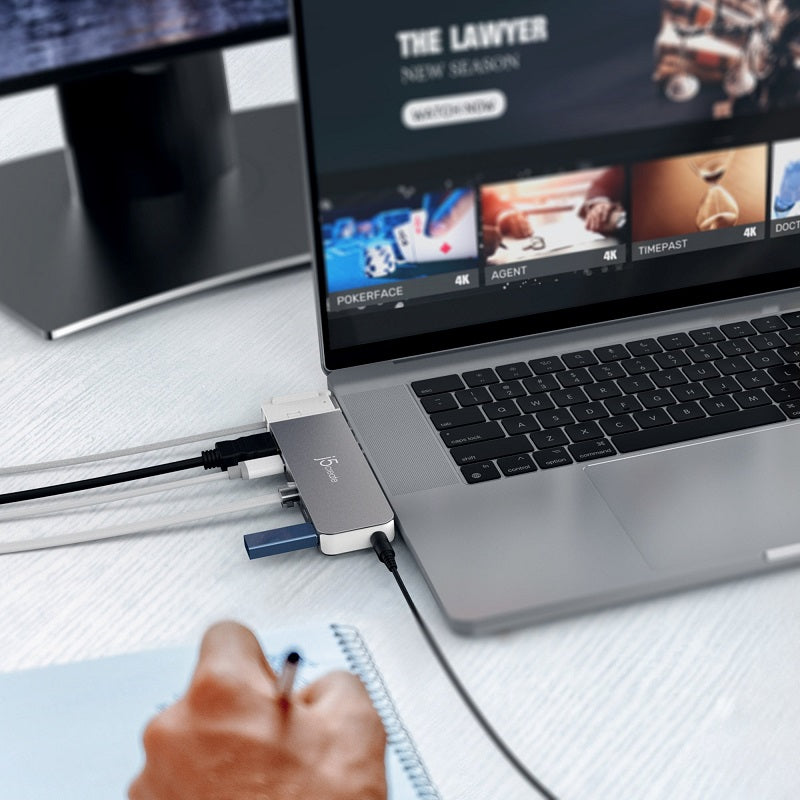

The 4K60 Elite Pro USB4® Hub with MagSafe® Kit expands your computer’s connectivity. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen 2 ports and one USB-C® port. Data transfer is quick and easy with the included Gigabit Ethernet port to access a wired network. Transfer files from one media to another with the 10Gbps USB™ connections. You can use the HDMI™ port to connect to a 4K UHD HDTV, monitor, or projector.
Equipped with a USB4® port it provides 6K60 resolution, 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected. You can connect your headphones or speakers to the audio/mic combo jack. The MagSafe® dongle is a convenient way to store your original MacBook® MagSafe® charger. For Intel® MacBook® models, the audio/mic combo jack may be removed.
Features- Ultra slim and light weight with a stylish design
- Designed for MacBook Pro® 2021/2022, compatible with MacBook Pro® with Intel® CPU

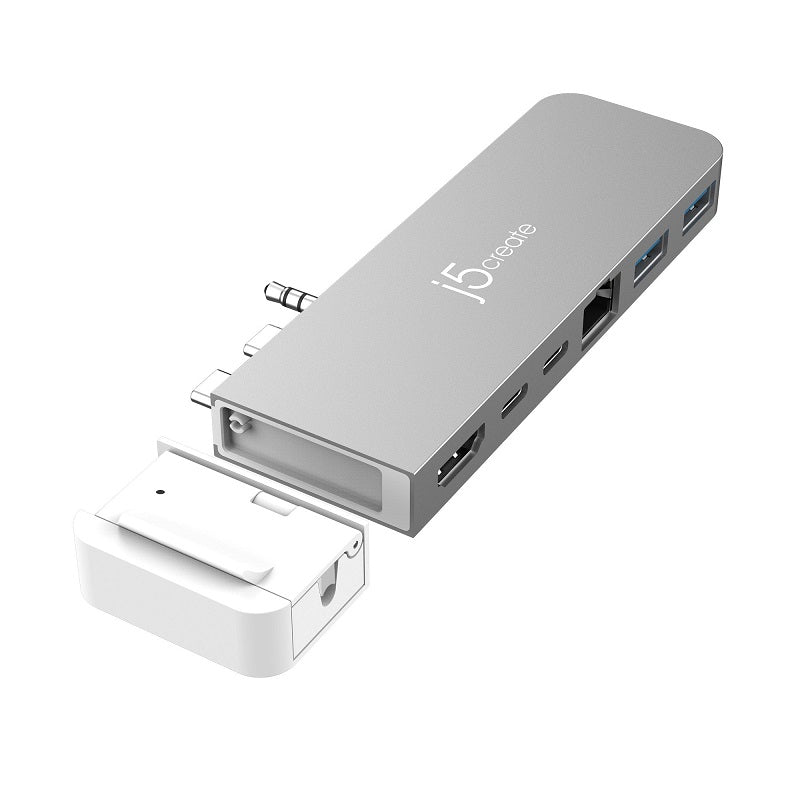

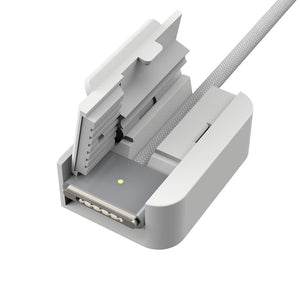

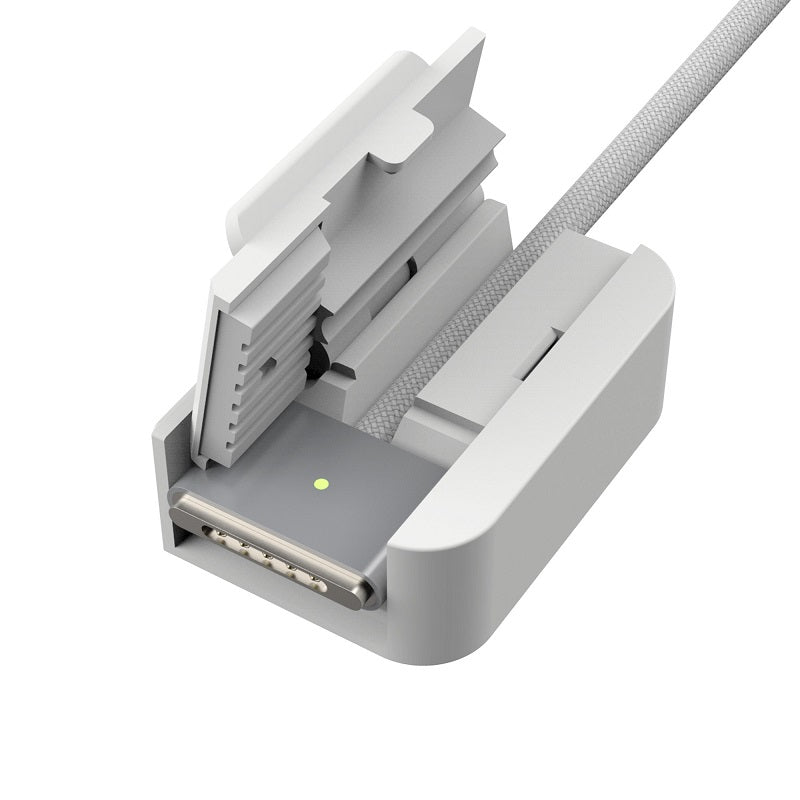

- Magnetic dongle for storage MagSafe® 3
- 1 x USB4® port capable of the following:
- 1) 6K60 resolution display
- 2) 40Gbps data transmission
- 3) PD charging through up to 100W
- Supports HDMI™ resolutions up to 4K @ 60 Hz
- 2 x USB™ Type-A 3.2 Gen 2 ports provide up to 10Gbps transfer speed
- 1 x USB-C® 3.2 Gen 2 ports provide up to 10Gbps transfer speed
- Easily add a wired network connectivity with the Gigabit Ethernet port
- 3.5 mm audio / mic combo jack allows you to connect your headphone set or speakers.
- Plug-and-play, no driver installation required
SpecificationsHardwareAudio Supported: Yes
Host Connector: USB-C™ Male
Network Interface: RJ45 (Gigabit Ethernet)

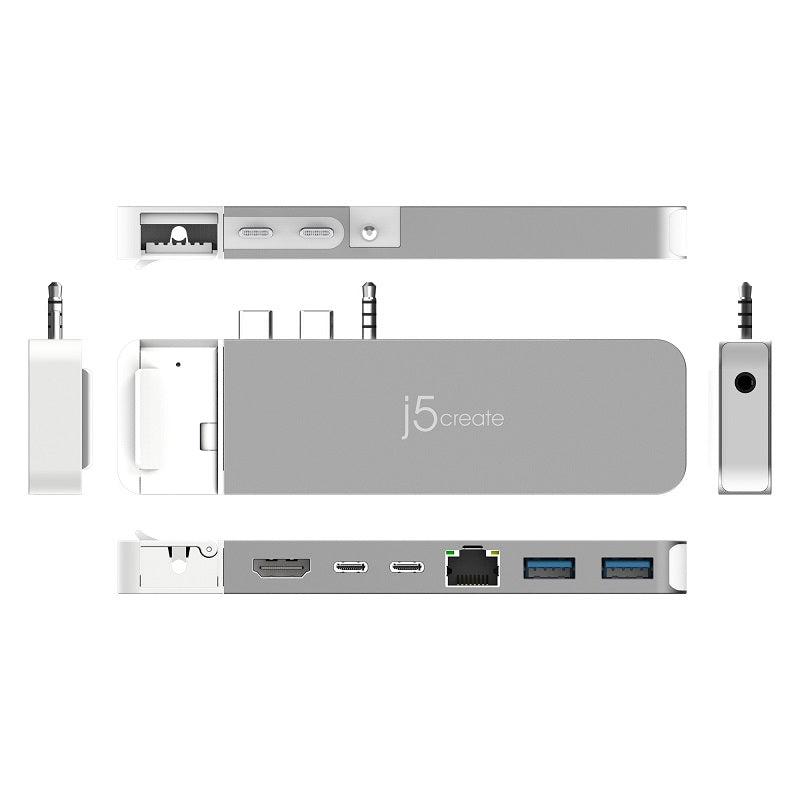

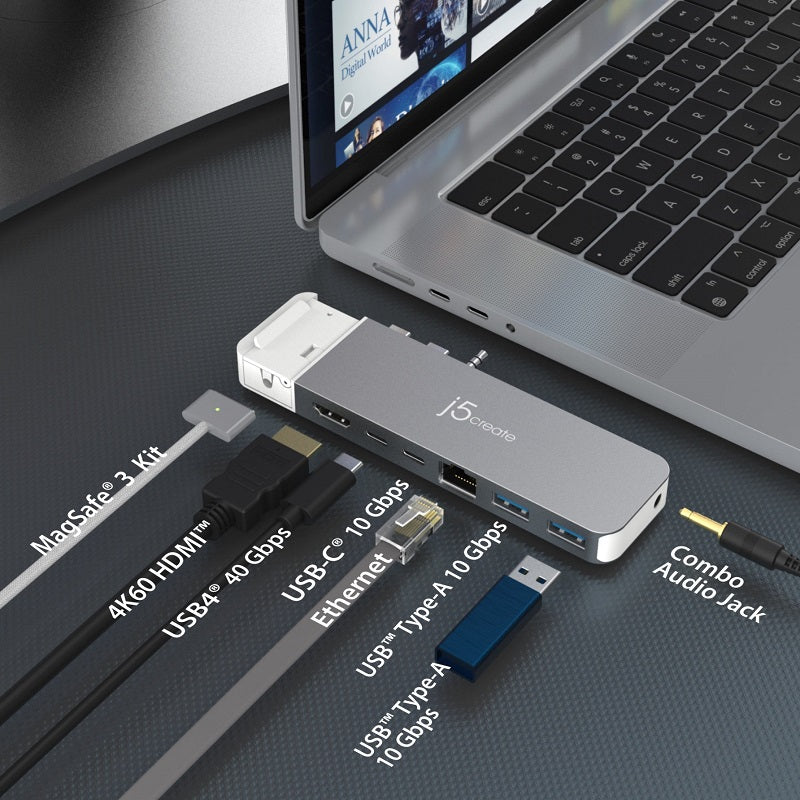

Ports:
- 2 - USB™ Type-A 3.2 Gen 2 10Gbps
- 1 - USB-C® 3.2 Gen 2 10Gbps
- 1 - USB4® 40Gbps
- 1 - 4K60 HDMI™
- 1 - RJ45 (Gigabit Ethernet)
- 1 - 3.5 mm audio/mic combo jack
- 1 - MagSafe® 3 storage
Power Source: Bus-powered or self-powered
Video Output:
- 1- HDMI™ Female
- 1 - USB-C® Female
Warranty: 2 Year Limited
Performance
Audio Channel: 3.5 mm audio/mic combo jack
Compatible Networks: 10/100/1000 Mbps

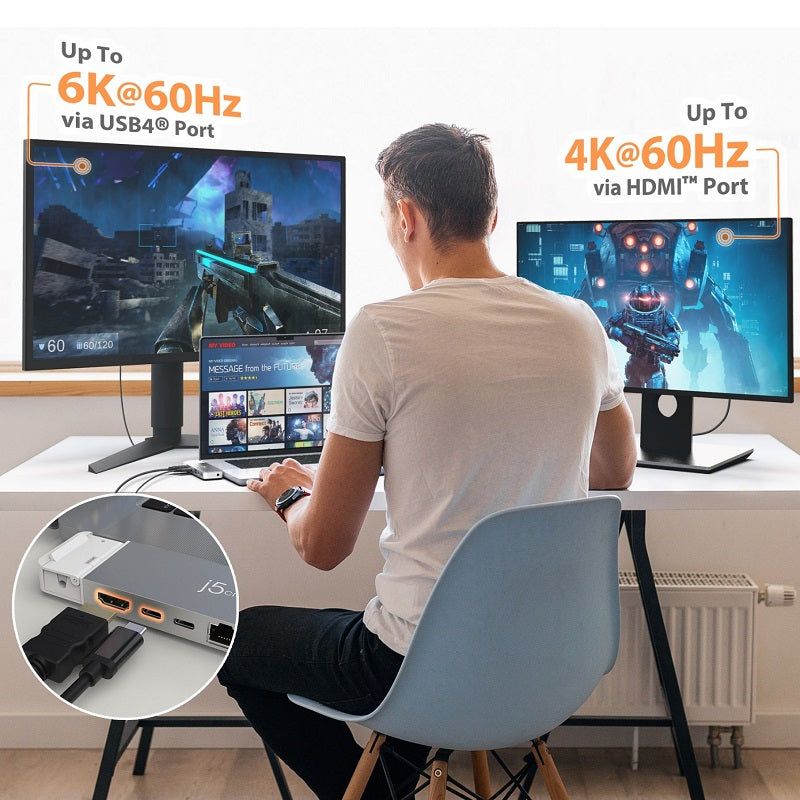

Displays Supported: 2 (HDMI™ & USB4®)
Max Data Transfer Rate: 40Gbps via USB4®
Max Display Refresh Rate: 60 Hz
Max Display Resolution:
- USB4®: 6016 x 3384
- HDMI™: 3840 x 2160
Power
Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 5A
Output Voltage: Up to 20V
Power Consumption: ≤ 400 mA
Power Delivery: Up to 100W via USB-C®
Physical Specifications
Cable Length: N/A
Color: Space Grey / White
Enclosure Type: Aluminum / ABS
Operating Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 41°C)
Product Depth: 2.05 in. (52 mm)
Product Height: 0.63 in. (16 mm)
Product Weight: 2.6 oz (74 g)
Product Width: 5.47 in. (139 mm)
Storage Humidity: < 85% non-condensing
Storage Temperature: 0 to 155°F (-17 to 68°C)
Package Contents
1 - 4K60 Elite Pro USB4® Hub with MagSafe® Kit (JCD395)
2 - Silicone Pads
1 - Quick Installation Guide (QIG)
Compatibility
System Requirements
- MacBook Pro® with USB-C® ports
- Perfect for MacBook Pro® 2021 or later / MacBook Air® M2
Special Notes
- The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz.

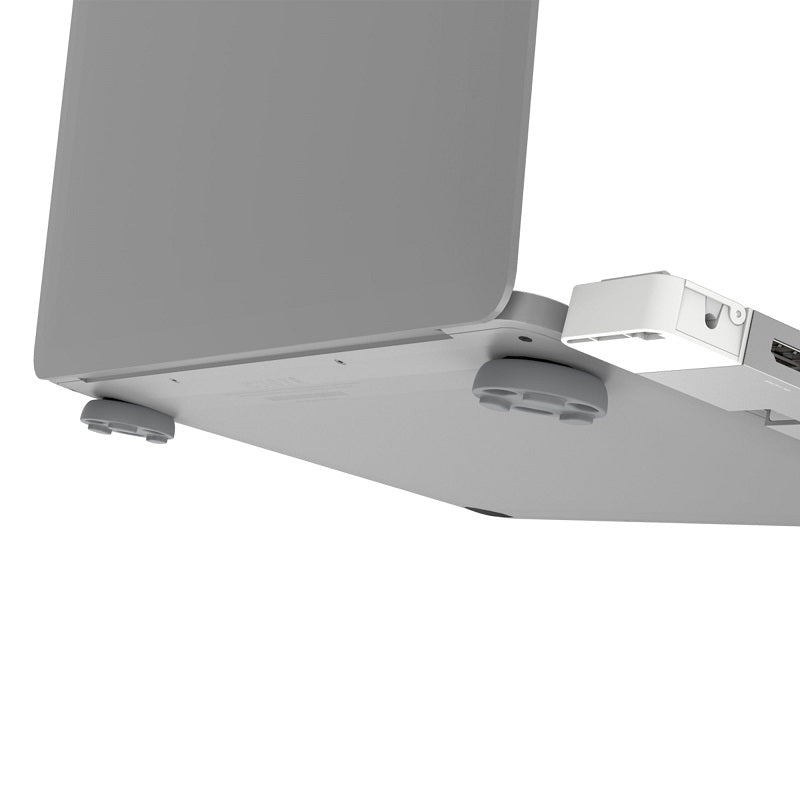

It is recommended to use the detachable silicone pad when using the MacBook Air® - M2 to help balance the weight of the laptop.
- The MagSafe® Kit is compatible with the MacBook Pro® 2021 14/ 16 inch and MacBook Air® M2.

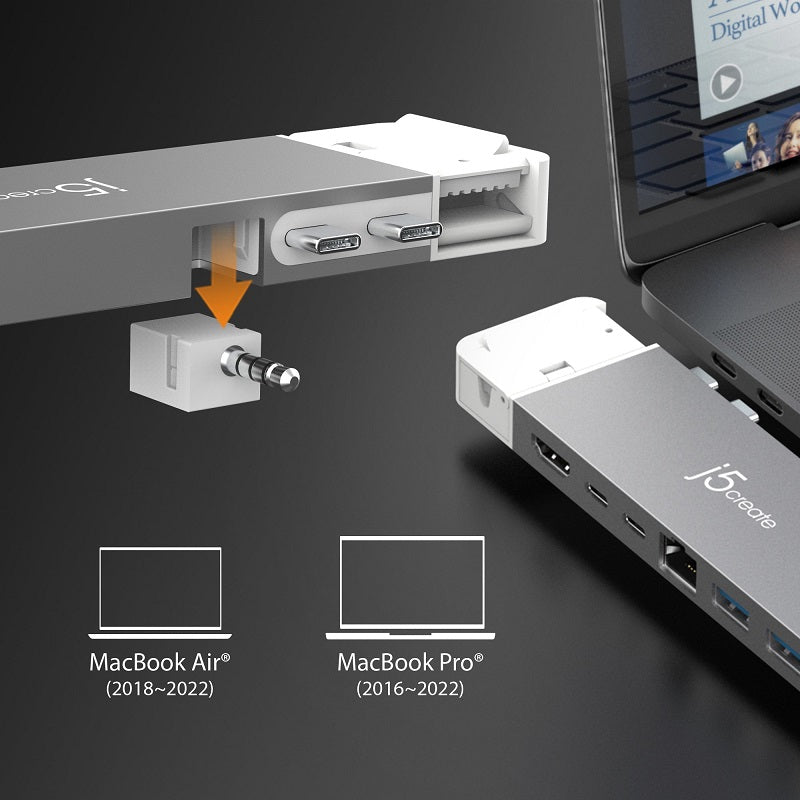

- The detachable 3.5 mm audio/mic combo jack can be removed so that it fits fine with MacBook® models without 3.5 mm audio/mic combo jack on the left side.
- DisplayPort™ 1.4 devices are listed as follows, but not limited to:
- MacBook Air® 13" 2019 or later
- MacBook Pro® 14" 2021 or later
- MacBook Pro® 15" 2017 or later
- MacBook Pro® 16" 2019 or later
